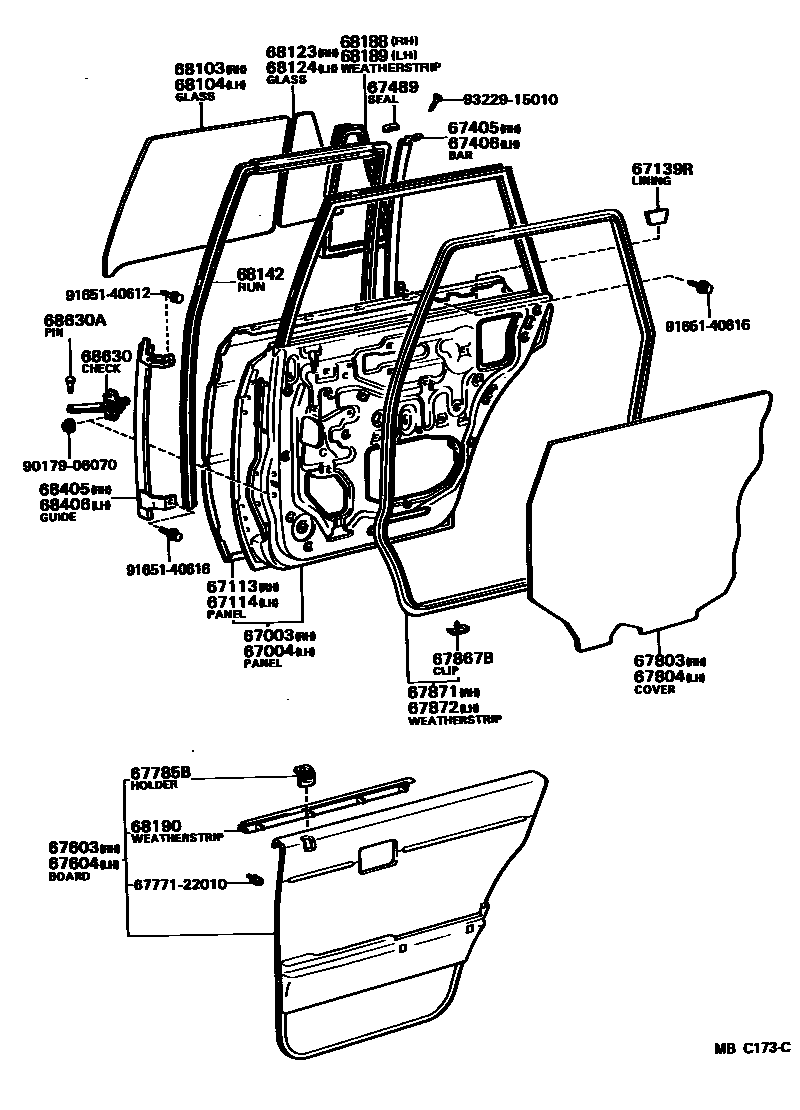

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22140iMX62..SED198009-198206

main67003-22141iMX6#..SED198206-198407

main67003-91625iMX62..WG198009-198206

main67003-91632iMX62..WG198206-198407

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22150iMX62..SED198009-198206

main67004-22151iMX6#..SED198206-198407

main67004-91625iMX62..WG198009-198206

main67004-91632iMX62..WG198206-198407

67113PANEL, REAR DOOR, OUTER RH

main67113-22090iMX6#198009-198407

67114PANEL, REAR DOOR, OUTER LH

main67114-22090iMX6#198009-198407

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-12010×2iMX6#198009-198407

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22040iMX6#..SED198009-198407

main67407-91601iMX62..WG198009-198407

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22040iMX6#..SED198009-198407

main67408-91601iMX62..WG198009-198407

67489SEAL, REAR DOOR DIVISION BAR

main67487-22020iMX6#198009-198407

RH

main67488-22020iMX6#198009-198407

LH

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-22500-01iMX62198009-198108

BLACK & GRAY,BLACK

main67630-22500-04iMX62198009-198108

BLUE,BLUE

main67630-22500-06iMX62198009-198108

D-BROWN & GREIGE,BROWN

main67630-22501-01iMX62198108-198208

BLACK & GRAY,BLACK

main67630-22501-04iMX62198108-198208

BLUE,BLUE

main67630-22501-06iMX62198108-198208

D-BROWN & GREIGE,BROWN

main67630-22502-02iMX6#198208-198306

DEEP MAROON,RED/MAROON

main67630-22502-04iMX6#198208-198306

BLUE,BLUE

main67630-22502-06iMX6#198208-198306

D-BROWN,BROWN

main67630-22503-02iMX6#198306-198407

DEEP MAROON,RED/MAROON

main67630-22503-04iMX6#198306-198407

BLUE,BLUE

main67630-22503-06iMX6#198306-198407

D-BROWN,BROWN

main67630-22690iMX62..SED..USA198108-198208

LEATHER,D-BROWN & GREIGE

main67630-22691-06iMX63..USA198208-198306

LEATHER,L-BROWN,BROWN

main67630-22691-16iMX63..USA198306-198308

LEATHER,L-BROWN,BROWN

main67630-22692-02iMX63..USA198308-198407

LEATHER,DEEP MAROON,RED/MAROON

main67630-22692-06iMX63..USA198308-198407

LEATHER,D-BROWN,BROWN

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-22500-01iMX62198009-198108

BLACK & GRAY,BLACK

main67640-22500-04iMX62198009-198108

BLUE,BLUE

main67640-22500-06iMX62198009-198108

D-BROWN & GREIGE,BROWN

main67640-22501-01iMX62198108-198208

BLACK & GRAY,BLACK

main67640-22501-04iMX62198108-198208

BLUE,BLUE

main67640-22501-06iMX62198108-198208

D-BROWN & GREIGE,BROWN

main67640-22502-02iMX6#198208-198306

DEEP MAROON,RED/MAROON

main67640-22502-04iMX6#198208-198306

BLUE,BLUE

main67640-22502-06iMX6#198208-198306

D-BROWN,BROWN

main67640-22503-02iMX63198306-198407

DEEP MAROON,RED/MAROON

main67640-22503-04iMX63198306-198407

BLUE,BLUE

main67640-22503-06iMX63198306-198407

D-BROWN,BROWN

main67640-22690iMX62..SED..USA198108-198208

LEATHER,D-BROWN & GREIGE

main67640-22691-06iMX63..USA198208-198306

LEATHER,L-BROWN,BROWN

main67640-22691-16iMX63..USA198306-198308

LEATHER,L-BROWN,BROWN

main67640-22692-02iMX63..USA198308-198407

LEATHER,DEEP MAROON,RED/MAROON

main67640-22692-06iMX63..USA198308-198407

LEATHER,D-BROWN,BROWN

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-22020-01×2iMX62198009-198208

BLACK,BLACK

main67785-22020-02×2iMX6#198208-198407

DEEP MAROON,RED/MAROON

main67785-22020-04×2iMX62198009-198208

BLUE,BLUE

main67785-22020-06×2iMX6#198009-198407

D-BROWN,BROWN

main67785-22020-14×2iMX6#198208-198407

BLUE,BLUE

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22100iMX6#198009-198407

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22100iMX6#198009-198407

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iMX6#198009-198407

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22070iMX62198009-198103

main67871-22071iMX6#198103-198401

main67871-22072iMX6#198401-198407

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22070iMX62198009-198103

main67872-22071iMX6#198103-198401

main67872-22072iMX6#198401-198407

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22080iMX6#..SED198009-198407

*TT,T=3.5

main68113-22120iMX63198308-198407

*TEM,T=3.5,BRONZE

main68113-91610iMX62..WG198009-198407

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22080iMX6#..SED198009-198407

*TT,T=3.5

main68114-22120iMX63198308-198407

*TEM,T=3.5,BRONZE

main68114-91610iMX62..WG198009-198407

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-22080iMX6#..SED198009-198407

*TT,T=3.5

main68123-22110iMX63198308-198407

*TEM,T=3.5,BRONZE

main68123-91610iMX62..WG198009-198407

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-22080iMX6#..SED198009-198407

*TT,T=3.5

main68124-22110iMX63198308-198407

*TEM,T=3.5,BRONZE

main68124-91610iMX62..WG198009-198407

*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-22040×2iMX6#198009-198407

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22040iMX6#..SED198009-198407

main68188-91607iMX62..WG198009-198407

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22030iMX6#..SED198009-198407

main68189-91604iMX62..WG198009-198407

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-22060×2iMX62198009-198010

main68190-22061×2iMX6#198010-198407

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22050iMX6#198009-198407

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22050iMX6#198009-198407

68630CHECK ASSY, REAR DOOR

main68630-22030×2iMX62198009-198012

main68630-22031×2iMX6#198012-198407

68630APIN(FOR REAR DOOR CHECK)

main68617-12010×2iMX6#198406-198407

sub68617-90A00

main68617-22010×2iMX6#198009-198406

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

9017906070

main90179-06070

9165140612

main91651-40612

9165140616

main91651-40616

9322915010

main93229-15010

33 parts on this diagram · 1 diagram in section
