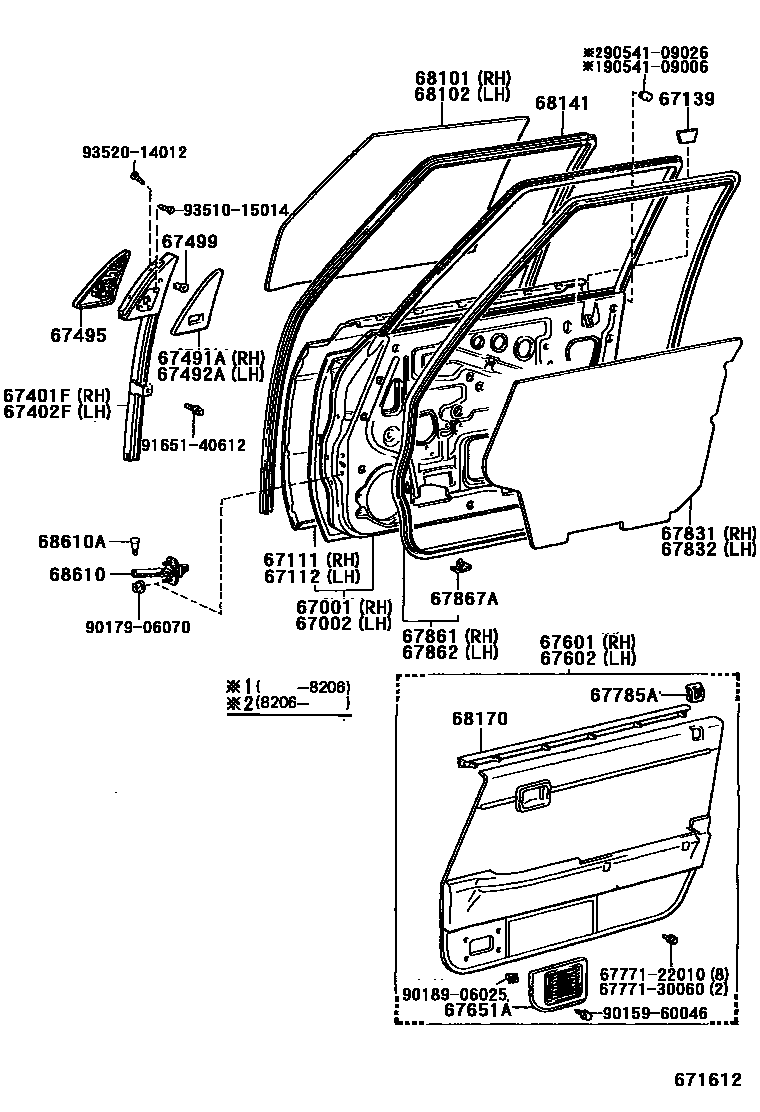

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-22180iMX62198009-198203

sub67001-22181

sub82711-30400

sub82817-22360

main67001-22181iMX62198203-198206

sub67001-22182

sub90541-09026

main67001-22182iMX6#198206-198407

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-22190iMX62198009-198203

sub67002-22191

sub82817-22360

main67002-22191iMX62198203-198206

sub67002-22192

sub90541-09026

main67002-22192iMX6#198206-198407

67111PANEL, FRONT DOOR, OUTER RH

main67111-22110iMX62198009-198206

sub67111-22111

main67111-22111iMX6#198206-198407

67112PANEL, FRONT DOOR, OUTER LH

main67112-22120iMX62198009-198206

sub67112-22121

main67112-22121iMX6#198206-198407

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-12010iMX6#198009-198407

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-22070iMX62198009-198108

main67401-22071iMX6#198108-198304

sub67401-22072

main67401-22072iMX6#198304-198407

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-22070iMX62198009-198108

main67402-22071iMX6#198108-198304

sub67402-22072

main67402-22072iMX6#198304-198407

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22011iMX62198108-198208

sub67491-22012

main67491-22020iMX62198009-198108

main67491-22021iMX6#198208-198304

sub67491-22022

main67491-22022iMX6#198304-198407

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22010iMX62198009-198108

main67492-22011iMX62198108-198208

sub67492-22012

main67492-22021iMX6#198208-198304

sub67492-22022

main67492-22022iMX6#198304-198407

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-22010iMX62198009-198108

RH

main67495-22011iMX6#198108-198407

RH

main67496-22010iMX62198009-198108

LH

main67496-22011iMX6#198108-198407

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iMX6#198009-198407

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-22770-01iMX62198009-198108

BLACK & GRAY,BLACK

main67610-22770-04iMX62198009-198108

BLUE,BLUE

main67610-22770-06iMX62198009-198108

D-BROWN & GREIGE,BROWN

main67610-22771-01iMX62198108-198208

BLACK & GRAY,BLACK

main67610-22771-04iMX62198108-198208

BLUE,BLUE

main67610-22771-06iMX62198108-198208

D-BROWN & GREIGE,BROWN

main67610-22772-02iMX6#198208-198306

DEEP MAROON,RED/MAROON

main67610-22772-04iMX6#198208-198306

BLUE,BLUE

main67610-22772-06iMX6#198208-198306

D-BROWN,BROWN

main67610-22773-02iMX63198306-198407

DEEP MAROON,RED/MAROON

main67610-22773-04iMX63198306-198407

BLUE,BLUE

main67610-22773-06iMX63198306-198407

D-BROWN,BROWN

main67610-2A240iMX62..SED..USA198108-198208

LEATHER,D-BROWN & GREIGE

main67610-2A241-06iMX63..USA198208-198306

LEATHER,L-BROWN,BROWN

sub67610-2A241

main67610-2A241-16iMX63..USA198306-198308

LEATHER,L-BROWN,BROWN

sub67610-2A241

main67610-2A242-02iMX63..USA198308-198407

LEATHER,DEEP MAROON,RED/MAROON

main67610-2A242-06iMX63..USA198308-198407

LEATHER,D-BROWN,BROWN

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-22620-01iMX62198009-198108

BLACK & GRAY,BLACK

main67620-22620-04iMX62198009-198108

BLUE,BLUE

main67620-22620-06iMX62198009-198108

D-BROWN & GREIGE,BROWN

main67620-22621-01iMX62198108-198208

BLACK & GRAY,BLACK

main67620-22621-04iMX62198108-198208

BLUE,BLUE

main67620-22621-06iMX62198108-198208

D-BROWN & GREIGE,BROWN

main67620-22622-02iMX6#198208-198306

DEEP MAROON,RED/MAROON

main67620-22622-04iMX6#198208-198306

BLUE,BLUE

main67620-22622-06iMX6#198208-198306

D-BROWN,BROWN

main67620-22623-02iMX63198306-198407

DEEP MAROON,RED/MAROON

main67620-22623-04iMX63198306-198407

BLUE,BLUE

main67620-22623-06iMX63198306-198407

D-BROWN,BROWN

main67620-2A060iMX62..SED..USA198108-198208

LEATHER,D-BROWN & GREIGE

main67620-2A061-06iMX63..USA198208-198306

LEATHER,L-BROWN,BROWN

sub67620-2A061

main67620-2A061-16iMX63..USA198306-198308

LEATHER,L-BROWN,BROWN

sub67620-2A061

main67620-2A062-02iMX63..USA198308-198407

LEATHER,DEEP MAROON,RED/MAROON

main67620-2A062-06iMX63..USA198308-198407

LEATHER,D-BROWN,BROWN

67651AGRILLE, SPEAKER DOOR

main67651-22010-01iMX62198009-198208

RH,BLACK,BLACK

sub67651-22010

main67651-22010-02iMX6#198208-198407

RH,DEEP MAROON,RED/MAROON

sub67651-22010

main67651-22010-04iMX62198009-198208

RH,BLUE,BLUE

sub67651-22010

main67651-22010-06iMX6#198009-198407

RH,D-BROWN,BROWN

sub67651-22010

main67651-22010-14iMX6#198208-198407

RH,BLUE,BLUE

sub67651-22010

main67652-22010-01iMX62198009-198208

LH,BLACK,BLACK

sub67652-22010

main67652-22010-02iMX6#198208-198407

LH,DEEP MAROON,RED/MAROON

sub67652-22010

main67652-22010-04iMX62198009-198208

LH,BLUE,BLUE

sub67652-22010

main67652-22010-06iMX6#198009-198407

LH,D-BROWN,BROWN

sub67652-22010

main67652-22010-14iMX6#198208-198407

LH,BLUE,BLUE

sub67652-22010

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main67785-22020-01iMX62198009-198208

BLACK,BLACK

sub67785-22020

main67785-22020-02iMX6#198208-198407

DEEP MAROON,RED/MAROON

sub67785-22020

main67785-22020-04iMX62198009-198208

BLUE,BLUE

sub67785-22020

main67785-22020-06iMX6#198009-198407

D-BROWN,BROWN

sub67785-22020

main67785-22020-14iMX6#198208-198407

BLUE,BLUE

sub67785-22020

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-22090iMX6#198009-198407

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-22090iMX6#198009-198407

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-22070iMX62198009-198104

sub67861-22071

main67861-22071iMX6#198104-198401

sub67861-22072

main67861-22072iMX6#198401-198407

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-22070iMX62198009-198104

sub67862-22071

main67862-22071iMX6#198104-198401

sub67862-22072

main67862-22072iMX6#198401-198407

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iMX6#198009-198407

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-22090iMX6#198009-198407

*TT,T=4.0

main68111-22140iMX63198306-198407

*TEM,T=4.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-22090iMX6#198009-198407

*TT,T=4.0

main68112-22140iMX63198306-198407

*TEM,T=4.0,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-22050iMX6#198009-198407

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-22070iMX62198009-198010

RH

main68170-22071iMX6#198010-198407

RH

main68220-22040iMX62198009-198010

LH

main68220-22041iMX6#198010-198407

LH

68610CHECK ASSY, FRONT DOOR

main68610-22020iMX6#198009-198407

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iMX6#198406-198407

sub68617-90A00

main68617-22010iMX6#198009-198406

sub68617-12010

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9015960046

main90159-60046

9017906070

main90179-06070

9018906025

main90189-06025

9054109006

main90541-09006

9054109026

main90541-09026

9165140612

main91651-40612

9351015014

main93510-15014

9352014012

main93520-14012

36 parts on this diagram · 1 diagram in section
