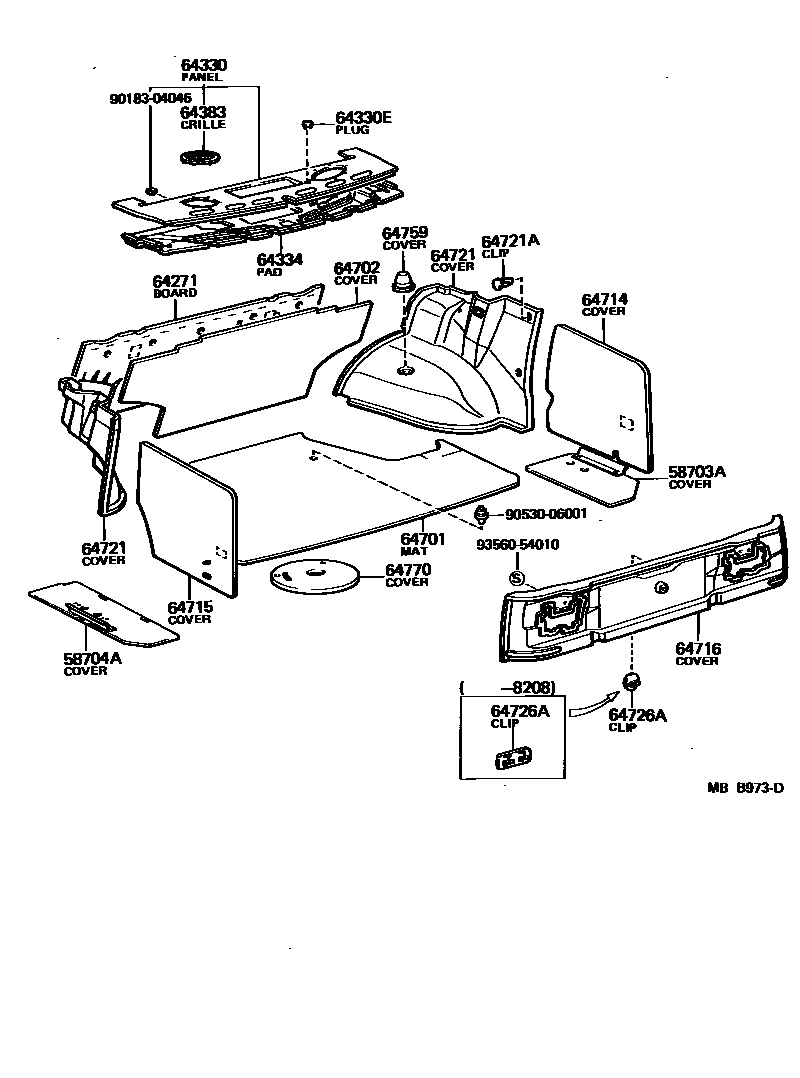

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64271BOARD, ROOM PARTITION, NO.1
sub64271-22060
64330PANEL ASSY, PACKAGE TRAY TRIM
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
64383GRILLE, SPEAKER, REAR
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT
64714COVER, LUGGAGE COMPARTMENT, RH
64715COVER, LUGGAGE COMPARTMENT, LH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
RH
RH
RH
LH
LH
LH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64726ACLIP, LUGGAGE TRIM, REAR
64759COVER, SHOCK ABSORBER HEAD
64770COVER ASSY, SPARE WHEEL
W/LSD
9018304046
main90183-04046
9053006001
main90530-06001
9356054010
main93560-54010
20 parts on this diagram · 1 diagram in section
