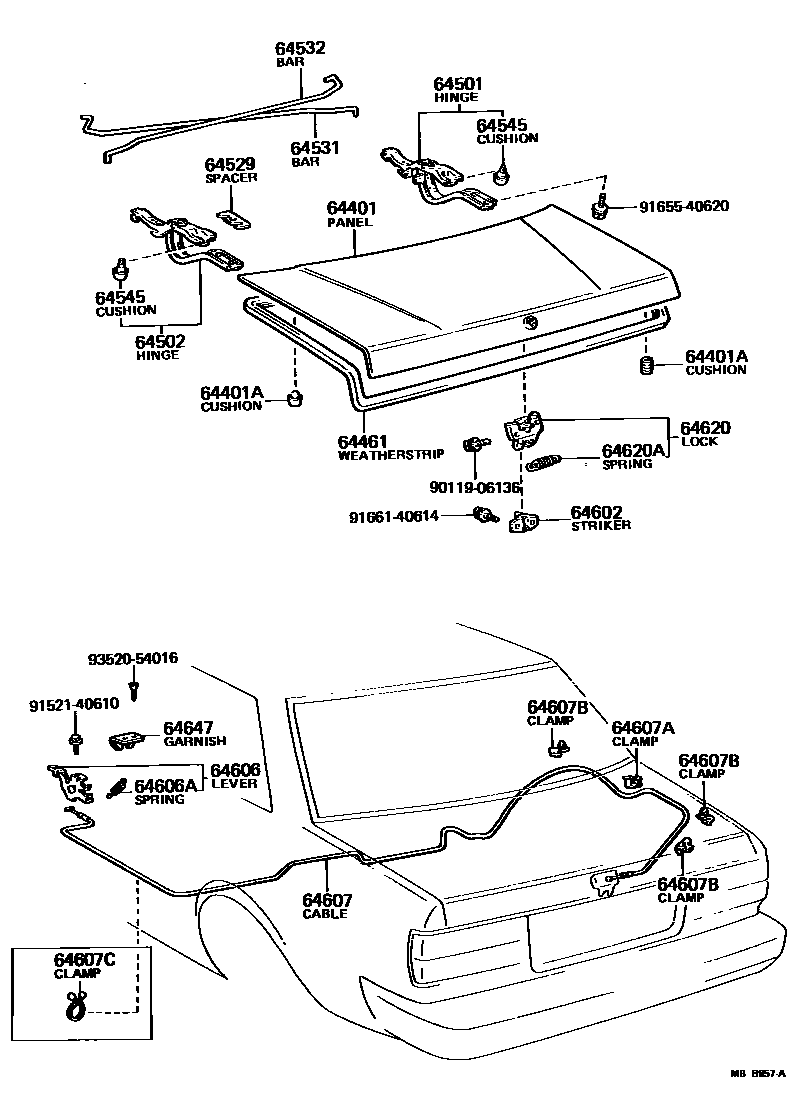

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
FR
RR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64545CUSHION, LUGGAGE DOOR HINGE
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
64647GARNISH, LUGGAGE LOCK CONTROL LEVER
9011906136
main90119-06136
9152140610
main91521-40610
9165540620
main91655-40620
9166140614
main91661-40614
9352054016
main93520-54016
24 parts on this diagram · 1 diagram in section
