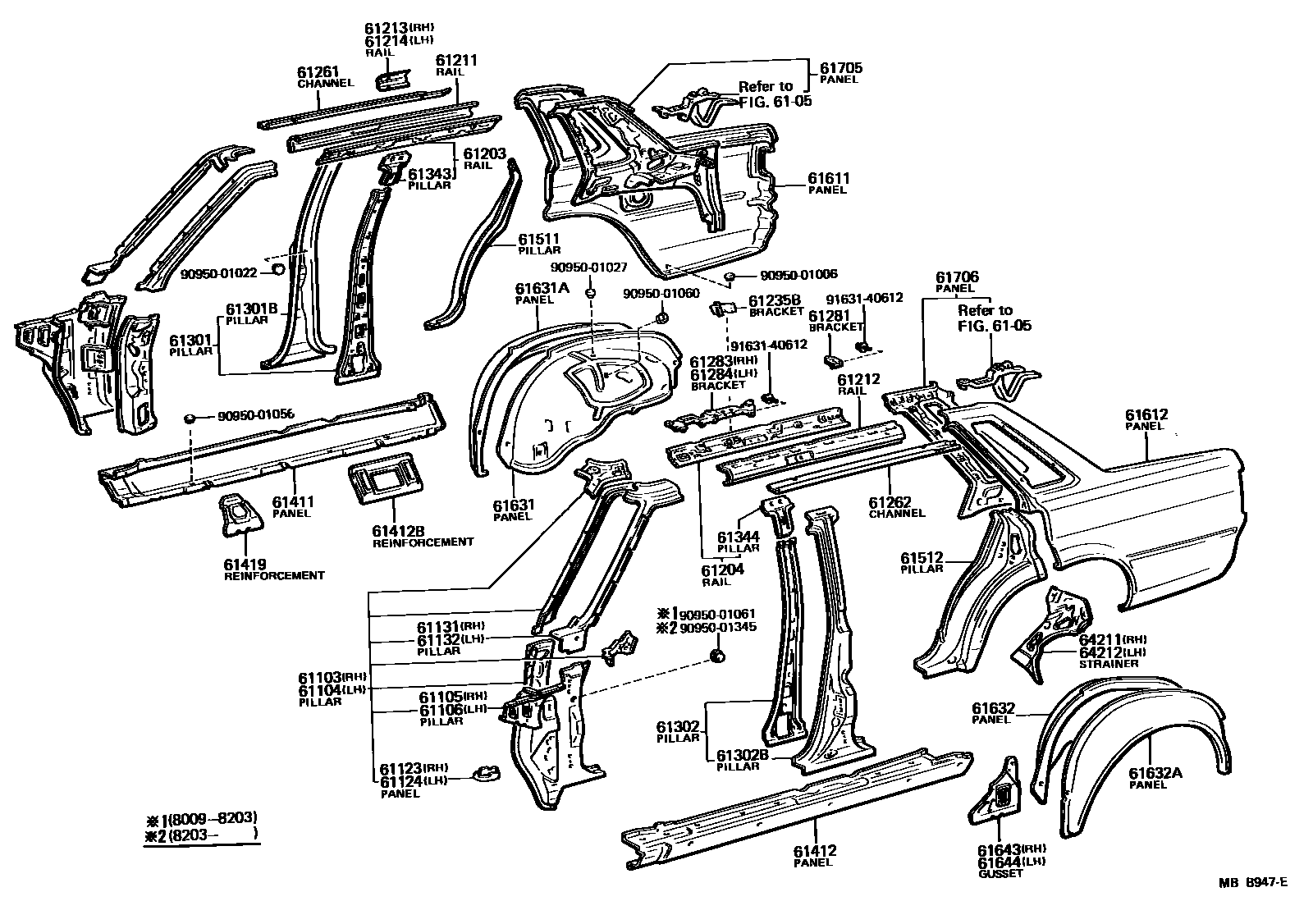

SIDE MEMBER
6105
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61123PANEL, COWL SIDE LOWER, RH
61124PANEL, COWL SIDE LOWER, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213RAIL, ROOF SIDE, OUTER REAR RH
61214RAIL, ROOF SIDE, OUTER REAR LH
61235BBRACKET, ASSIST GRIP
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61301BPILLAR, CENTER BODY, OUTER RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61302BPILLAR, CENTER BODY, OUTER LH
61343PILLAR, CENTER BODY, INNER UPPER RH
61344PILLAR, CENTER BODY, INNER UPPER LH
61411PANEL, ROCKER, OUTER RH
sub61411-22111
61412PANEL, ROCKER, OUTER LH
sub61412-22111
61412BREINFORCEMENT, ROCKER PANEL, NO.2
RH
LH
61419REINFORCEMENT, ROCKER OUTER PANEL
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
9095001006
main90950-01006
9095001022
main90950-01022
9095001027
main90950-01027
9095001056
main90950-01056
9095001060
main90950-01060
9095001061
main90950-01061
9095001345
main90950-01345
9163140612
main91631-40612
53 parts on this diagram · 2 diagrams in section
