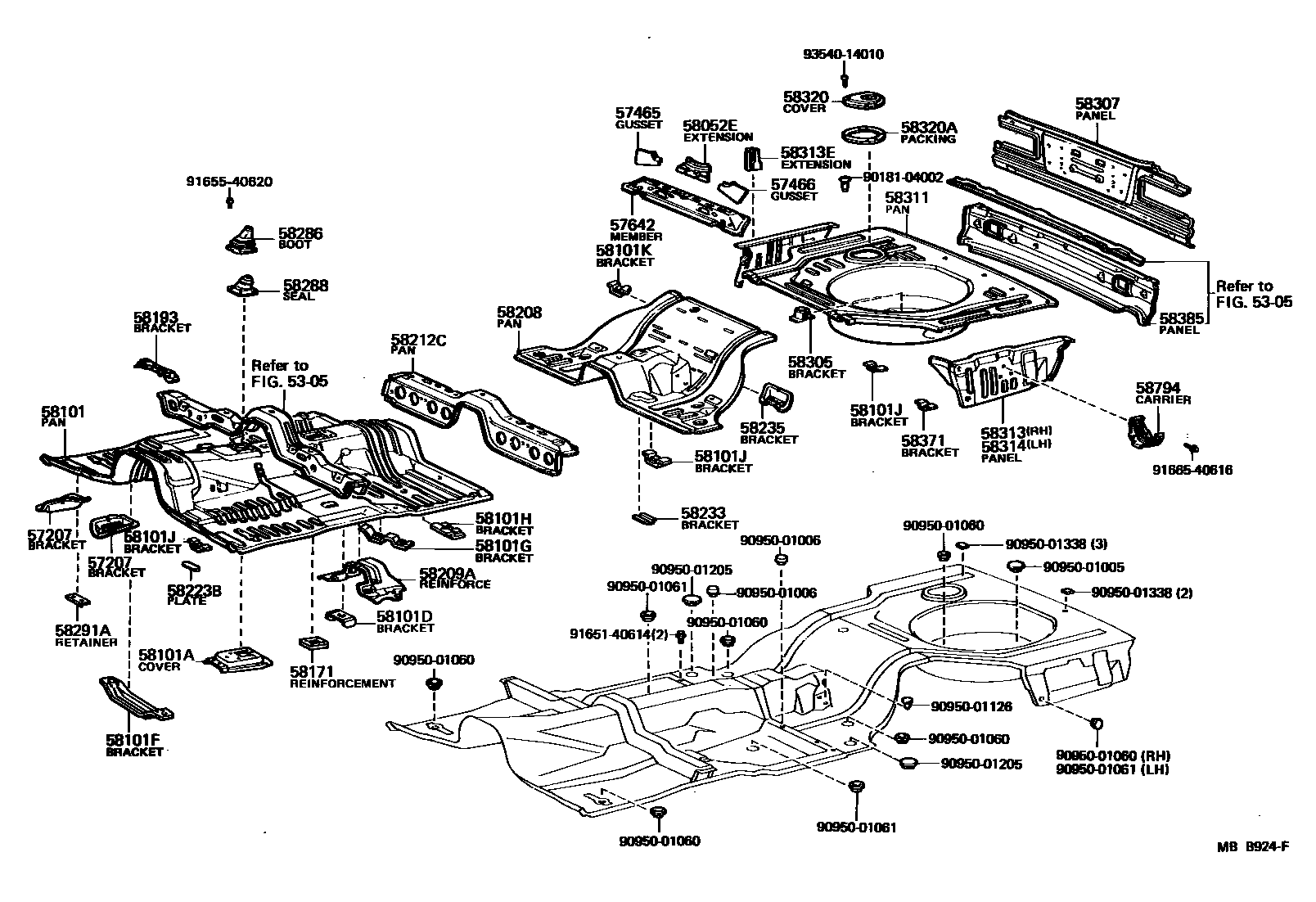

FLOOR PAN & LOWER BACK PANEL
5305
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
LH
57465GUSSET, CENTER FLOOR CROSSMEMBER, REAR, RH
57466GUSSET, CENTER FLOOR CROSSMEMBER, REAR, LH
57642MEMBER, CENTER FLOOR CROSS, NO.2
58052EEXTENSION, CENTER FLOOR TO BRACE
58101PAN SUB-ASSY, FRONT FLOOR
58101ACOVER, TRANSMISSION AUXILIARY
58101DBRACKET, PARKING BRAKE CABLE GUIDE
58101FBRACKET, MOUNTING, FLOOR, NO.1
58101GBRACKET, MOUNTING, FLOOR, NO.2
58101HBRACKET, MOUNTING, FLOOR, NO.3
58101JBRACKET, MOUNTING, FLOOR, NO.4
58101KBRACKET, MOUNTING, FLOOR, NO.5
58171REINFORCEMENT, PARKING BRAKE BASE
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58223BPLATE, ACCELERATOR PEDAL
58233BRACKET, EXHAUST PIPE MOUNTING
58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58291ARETAINER, ACCELERATOR PEDAL
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313EEXTENSION, REAR FLOOR SIDE PANEL, RH
58320COVER, REAR FLOOR SERVICE HOLE
RH
LH
58320APACKING, REAR FLOOR SERVICE HOLE
58371BRACKET, FUEL PUMP SUPPORT
58385PANEL, REAR VALANCE
58794CARRIER, JACK
9018104002
main90181-04002
9095001005
main90950-01005
9095001006
main90950-01006
9095001060
main90950-01060
9095001061
main90950-01061
9095001126
main90950-01126
9095001205
main90950-01205
9095001338
main90950-01338
9165140614
main91651-40614
9165540620
main91655-40620
9166540616
main91665-40616
9354014010
main93540-14010
48 parts on this diagram · 2 diagrams in section
