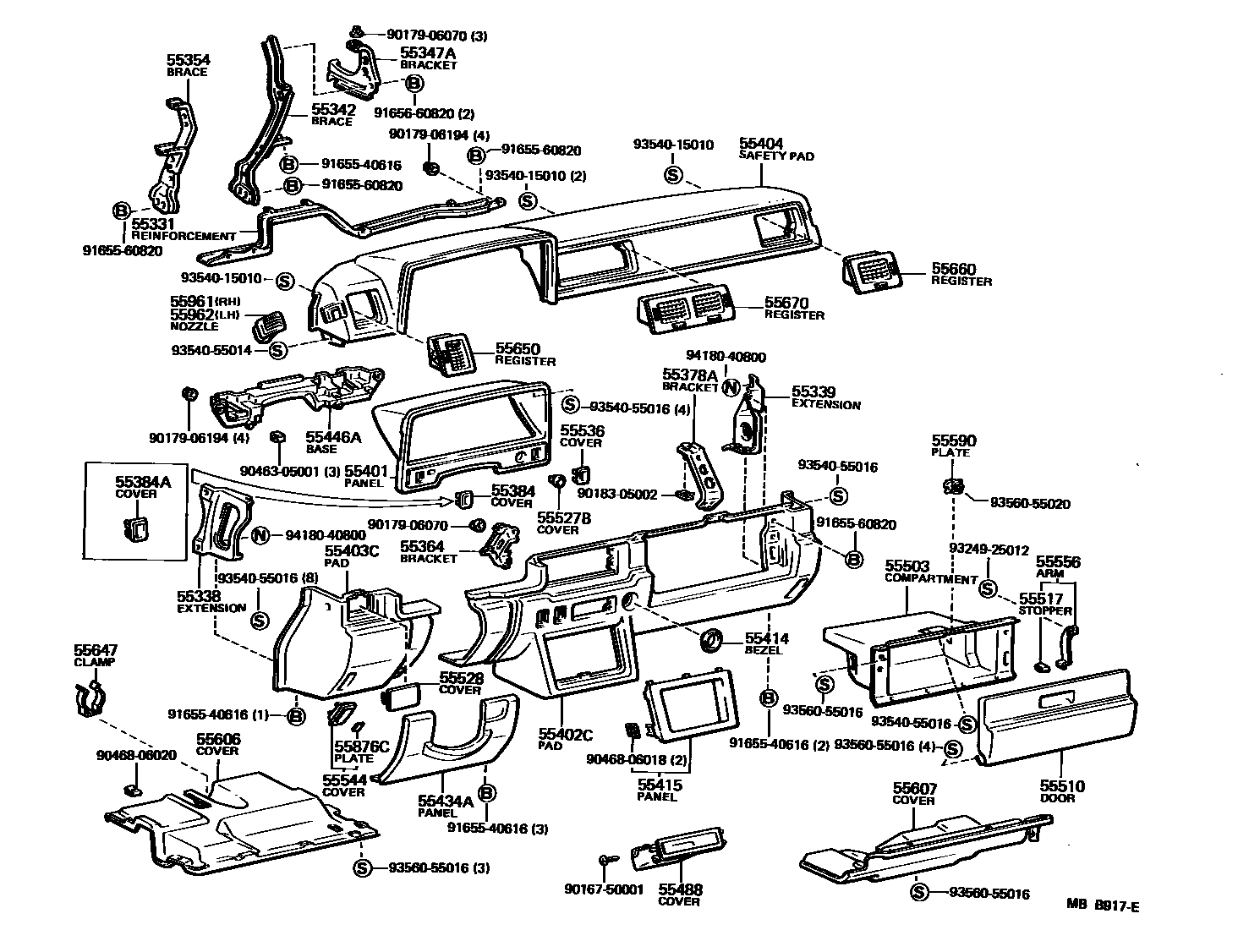

INSTRUMENT PANEL & GLOVE COMPARTMENT
55338EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1
55339EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.2
55342BRACE, INSTRUMENT PANEL, NO.2
55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55354BRACE, INSTRUMENT PANEL TO FLOOR
55364BRACKET, RADIO TUNER MOUNTING
RH
LH
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55384COVER, BASE SWITCH HOLE
55384ACOVER, PARKING LAMP SWITCH HOLE
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
DEEP MAROON,RED/MAROON
D-BROWN,BROWN
BLUE,BLUE
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55434APANEL, INSTRUMENT FINISH, LOWER SUB
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
55446ABASE, SWITCH HOLE, NO.1
55488COVER, STEREO OPENING
55503COMPARTMENT SUB-ASSY, GLOVE
55510DOOR ASSY, GLOVE COMPARTMENT
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
55527BCOVER, DIESEL THROTTLE KNOB HOLE
55528COVER, AUTO DRIVE OPENING
55536COVER, REAR WINDOW WIPER SWITCH HOLE
55544COVER, INSTRUMENT PANEL REGISTER HOLE
55556ARM, GLOVE COMPARTMENT DOOR CHECK
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55647CLAMP, INSTRUMENT PANEL UNDER COVER
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55876CPLATE,SIDE VENTILATOR CONTROL NAME, NO.2
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,BLACK
DEEP MAROON,RED/MAROON
BLUE,BLUE
D-BROWN,BROWN
BLUE,BLUE
9016750001
main90167-50001
9017906070
main90179-06070
9017906194
main90179-06194
9018305002
main90183-05002
9046305001
main90463-05001
9046806018
main90468-06018
9046806020
main90468-06020
9165540616
main91655-40616
9165560820
main91655-60820
9165660820
main91656-60820
9324925012
main93249-25012
9354015010
main93540-15010
9354055014
main93540-55014
9354055016
main93540-55016
9356055016
main93560-55016
9356055020
main93560-55020
9418040800
main94180-40800
54 parts on this diagram · 2 diagrams in section
