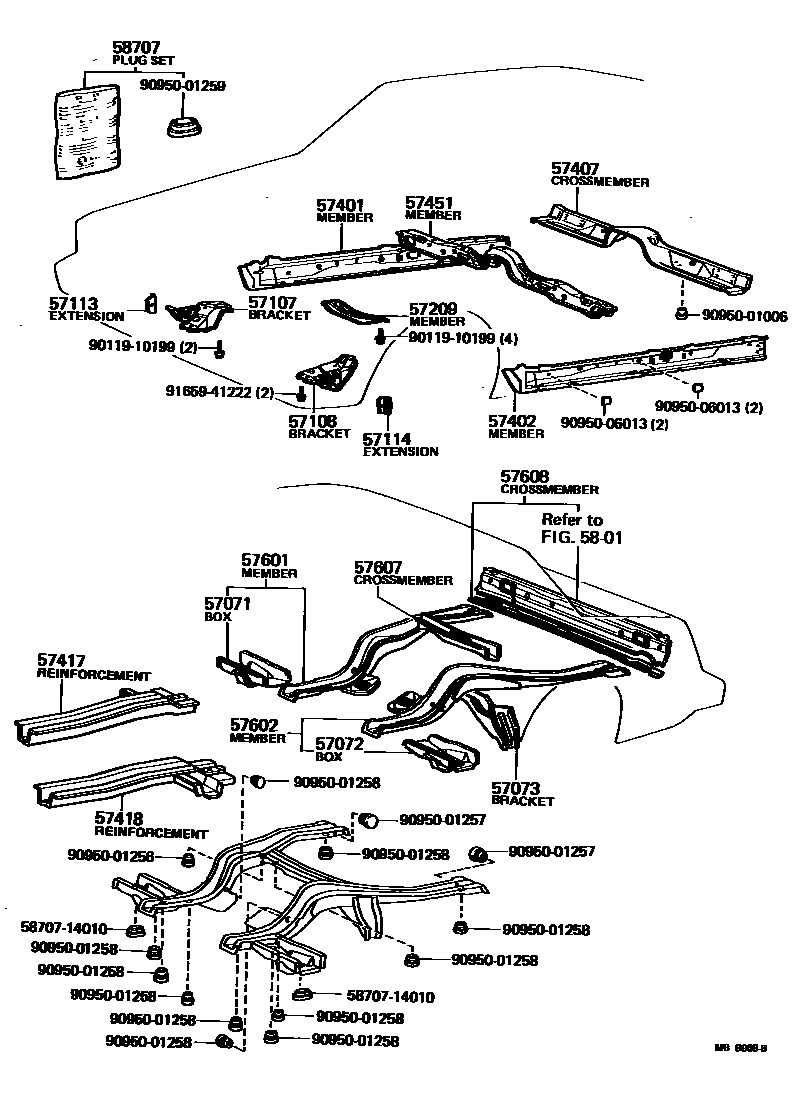

FLOOR SIDE MEMBER

0001 1 0002 1

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-22021iMX63198208-198407

main57071-22040iMX62..SED198009-198208

main57071-91601iMX62..WG198009-198407

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-22021iMX63198208-198407

main57072-22040iMX62..SED198009-198208

main57072-91601iMX62..WG198009-198208

main57072-91602iMX62198208-198407

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-22031iMX62..SED198009-198208

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22030iMX6#198009-198407

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22090iMX6#198009-198407

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22040iMX6#198009-198407

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22040iMX6#198009-198407

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-22110iMX63..MTM198208-198407

main57209-22120iMX6#..ATM..USA198208-198407

main57255-22110iMX62198009-198206

sub57255-22111

main57255-22111iMX62198206-198407

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22050iMX62..CND198009-198208

sub57401-22070

main57401-22060iMX62..USA198009-198208

sub57401-22061

main57401-22061iMX6#..USA198208-198407

main57401-22070iMX6#..CND198208-198407

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22050iMX62..CND198009-198208

sub57402-22070

main57402-22060iMX62..USA198009-198208

sub57402-22061

main57402-22061iMX6#..USA198208-198407

main57402-22070iMX6#..CND198208-198407

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-22030iMX6#198009-198407

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-22020iMX6#198009-198407

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-22020iMX6#198009-198407

57451MEMBER, FRONT FLOOR CROSS

main57408-22010iMX6#198208-198407

main57451-22012iMX62198009-198208

sub57451-22013

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-22905iMX62..SED198009-198208

sub57601-22910

main57601-22909iMX63198208-198407

main57601-91618iMX62..WG198009-198208

sub57601-91621

main57601-91621iMX62198208-198407

sub57601-91625

sub90948-02075

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-22905iMX62..SED198009-198208

sub57602-22910

main57602-22909iMX63198208-198407

main57602-91618iMX62..WG198009-198208

sub57602-91621

main57602-91621iMX62198208-198407

sub57602-91627

sub90948-02075

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-22053iMX6#..SED198009-198407

main57652-91604iMX62..WG198009-198407

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-22901iMX6#..SED198009-198407

main57606-91611iMX62..WG198009-198407

5801

58707PLUG SET, HOLE

main58707-14010iMX62198009-198208

main58707-22010iMX6#198208-198407

5870714010PLUG SET, HOLE

main58707-14010

9011910199

main90119-10199

9095001006

main90950-01006

9095001256

main90950-01256

9095001257

main90950-01257

9095001258

main90950-01258

9095001259

main90950-01259

9095006013

main90950-06013

9165941222

main91659-41222

29 parts on this diagram · 2 diagrams in section
