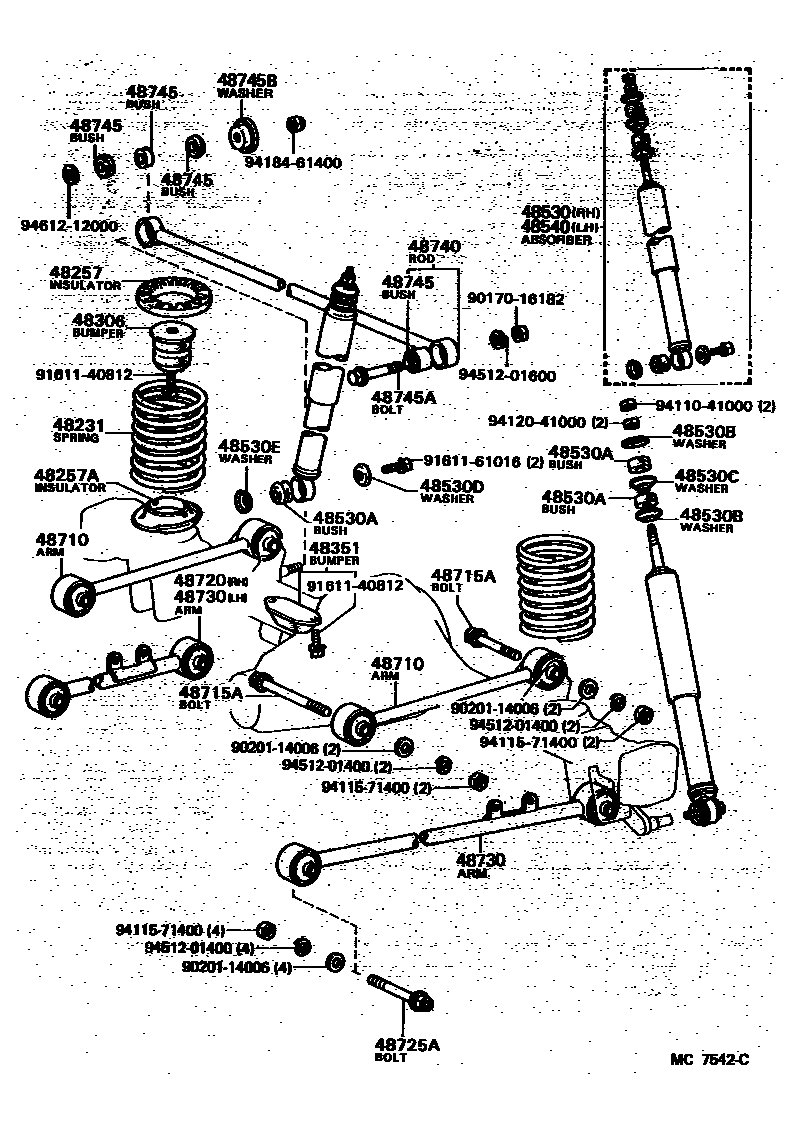

REAR SPRING & SHOCK ABSORBER
48257INSULATOR, REAR COIL SPRING
48306BUMPER SUB-ASSY, REAR SPRING
48530ABUSH(FOR REAR SHOCK ABSORBER)
ABSORBER X AXLE HOUSING
ABSORBER X BODY(LWR)
ABSORBER X BODY(UPR)
ABSORBER X BODY(UPR)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
T=2.3,LWR
T=3.2,UPR
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
AXLE HOUSING X CONTROL ARM
BODY X CONTROL ARM
BODY X CONTROL ARM
48720ARM ASSY, LOWER CONTROL, RH
48725BUSH, LOWER CONTROL ARM
OUTER
INNER
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
BODY SIDE
BODY SIDE
L=15,HOUSING SIDE
L=12,HOUSING SIDE
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
9017016182
main90170-16182
9020114006
main90201-14006
9161140812
main91611-40812
9161161016
main91611-61016
9411041000
main94110-41000
9411571400
main94115-71400
9412041000
main94120-41000
9418461400
main94184-61400
9451201400
main94512-01400
9451201600
main94512-01600
9461212000
main94612-12000
33 parts on this diagram · 4 diagrams in section
