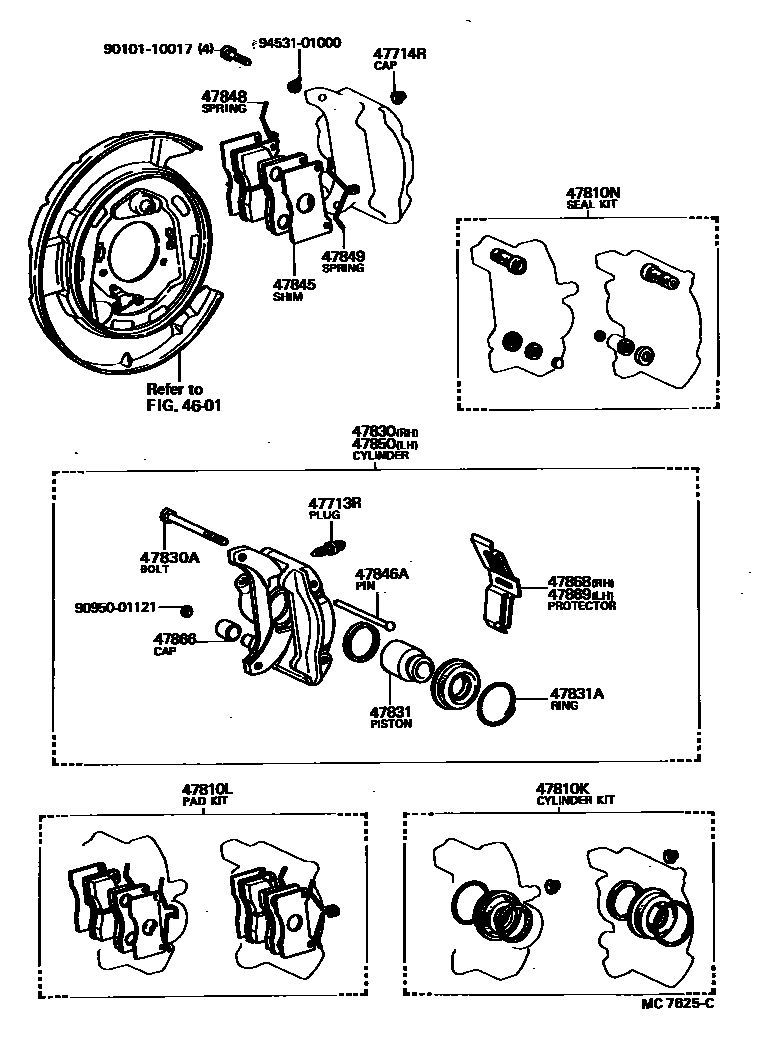

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

4601

47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12040iMX63198208-198407

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMX63198208-198407

47810KCYLINDER KIT, DISC BRAKE, REAR

main04479-30040iMX63198208-198407

sub04479-30041

47810LPAD KIT, DISC BRAKE, REAR

main04492-22010iMX63198208-198407

sub04466-22130

47810NSEAL KIT, DISC BRAKE, REAR

main04498-30010iMX63198208-198407

sub04498-30011

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47730-24030iMX63198208-198407

47830ABOLT(FOR REAR DISC BRAKE)

main90101-10082iMX63198208-198407

47831PISTON, REAR DISC BRAKE

main47731-30030iMX63198208-198407

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-48044iMX63198208-198407

47845SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-30070iMX63198208-198407

47846APIN, W/HOLE(FOR REAR DISC BRAKE PAD)

main90240-06007iMX63198208-198407

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-30030iMX63198208-198407

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-30010iMX63198208-198407

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47750-24030iMX63198208-198407

47866CAP, TORQUE PLATE PIN, REAR

main47766-12010iMX63198208-198407

47868PROTECTOR, DISC BRAKE PAD, REAR RH

main47767-24010iMX63198208-198407

47869PROTECTOR, DISC BRAKE PAD, REAR LH

main47767-24010iMX63198208-198407

9010110017

main90101-10017

9095001121

main90950-01121

9453101000

main94531-01000

21 parts on this diagram · 2 diagrams in section
