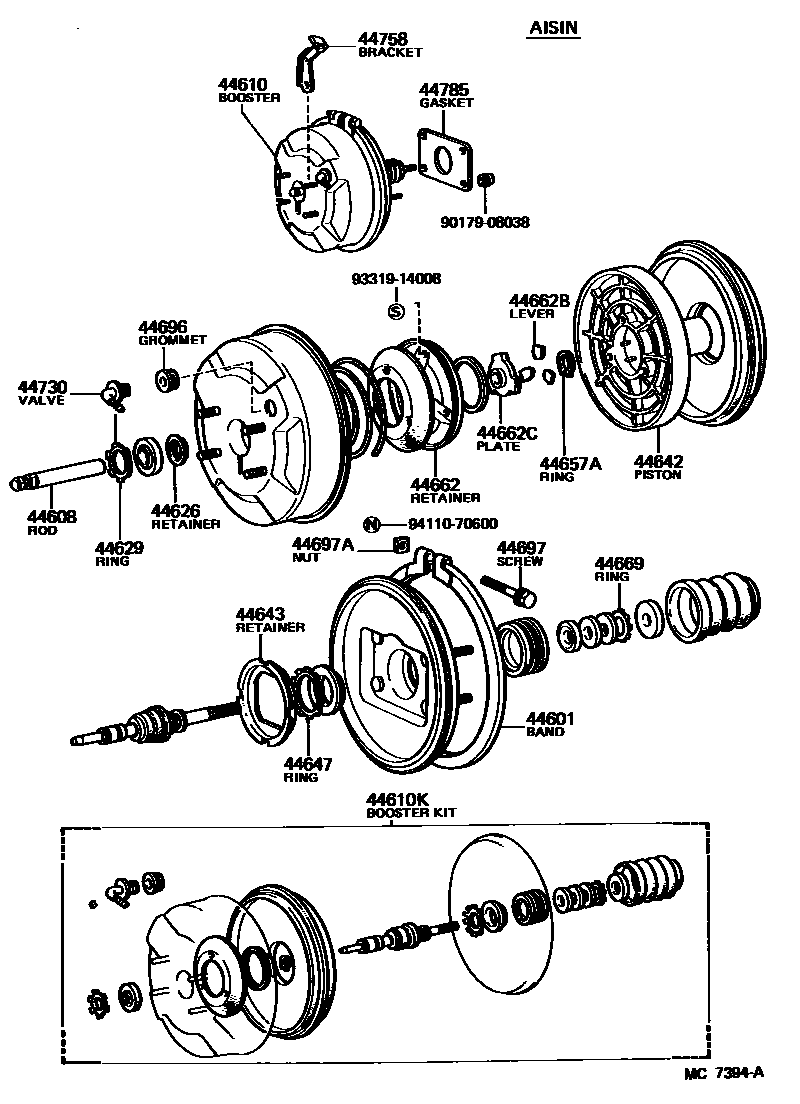

BRAKE BOOSTER & VACUUM TUBE
44601BAND SUB-ASSY, BOOSTER BODY
AISIN
44608PUSH ROD SUB-ASSY, BOOSTER
AISIN
JKC
44610BOOSTER ASSY, BRAKE
JKC
JKC
AISIN
44610KBOOSTER KIT, BRAKE
JKC
JKC
AISIN
44626RETAINER, BOOSTER ROD CUP
AISIN
44629RING, CIRCULAR INTERNAL
AISIN
44642PISTON, BRAKE BOOSTER
JKC
AISIN
44643RETAINER, DIAPHRAGM
AISIN
44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
AISIN
44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
AISIN
44662RETAINER, REACTION, NO.1
AISIN
44662BLEVER, REACTION
AISIN
44662CPLATE, REACTION, NO.1
AISIN
44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)
AISIN
44696GROMMET, CHECK VALVE
AISIN
44697SCREW, BOOSTER BAND SET
AISIN
44697ANUT(FOR BOOSTER BAND SET)
AISIN
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
AISIN
JKC
44785GASKET, BRAKE BOOSTER
9017908038
main90179-08038
9331914008
main93319-14008
9411070600
main94110-70600
23 parts on this diagram · 4 diagrams in section
