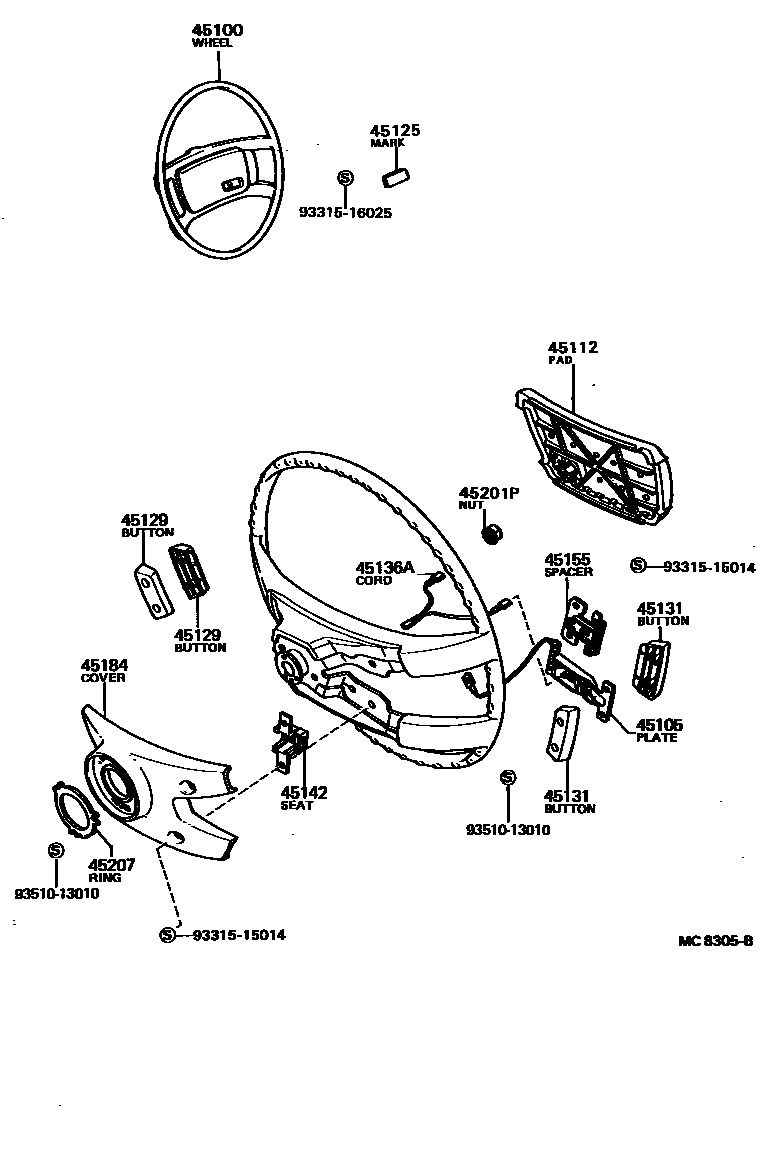

STEERING WHEEL
45100WHEEL ASSY, STEERING
45112PAD, STEERING WHEEL
45125MARK, STEERING WHEEL PAD
45129BUTTON, HORN, NO.2
BLACK
LWR,BLACK,BLACK
LWR,BLUE,BLUE
LWR,DARK BROWN,BROWN
45131BUTTON, HORN, NO.1
BLACK
LWR,BLACK,BLACK
LWR,BLUE,BLUE
LWR,DARK BROWN,BROWN
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
45142SEAT, HORN BUTTON CONTACT, NO.1
45155SPACER, HORN BUTTON CONTACT PLATE
45184COVER, STEERING WHEEL BOSS, LOWER
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9331515014
main93315-15014
9331516025
main93315-16025
9351013010
main93510-13010
16 parts on this diagram · 5 diagrams in section
