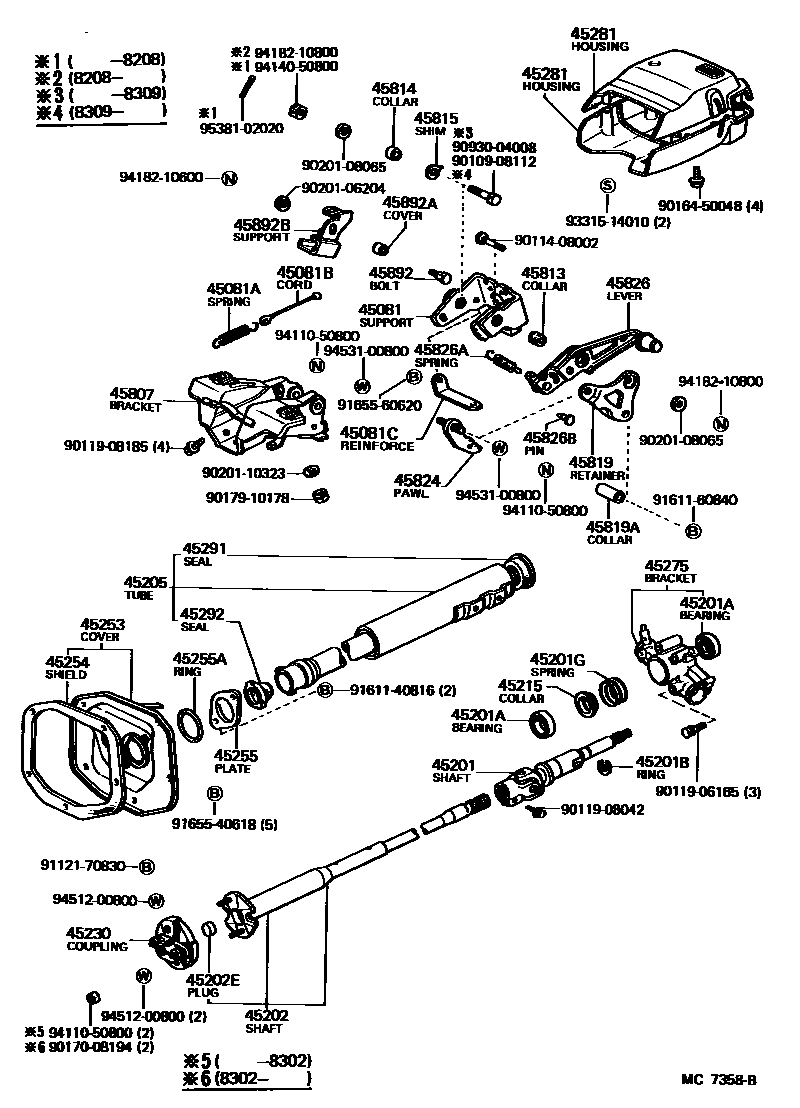

STEERING COLUMN & SHAFT
45081ASPRING, TENSION(FOR TILT STEERING)
45081BCORD(FOR TILT STEERING)
L=107.5
45081CREINFORCE, TILT STEERING SUPPORT
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202EPLUG, PLATE(FOR STEERING INTERMEDIATE SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45215COLLAR, MAIN SHAFT BEARING THRUST
45230COUPLING ASSY, FLEXIBLE
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45255PLATE, STEERING COLUMN HOLE COVER
45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
45281HOUSING, STEERING COLUMN
UPR,BLACK,BLACK
UPR,BLUE,BLUE
UPR,DARK BROWN,BROWN
UPR,DEEP MAROON,RED/MAROON
UPR,BLUE,BLUE
UPR,DARK BROWN,BROWN
LWR,BLACK,BLACK
LWR,BLUE,BLUE
LWR,DARK BROWN,BROWN
LWR,DEEP MAROON,RED/MAROON
LWR,BLUE,BLUE
LWR,DARK BROWN,BROWN
45291SEAL, MAIN SHAFT UPPER DUST
45292SEAL, MAIN SHAFT LOWER DUST
sub45292-22040
45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=17.996-18.003,D=17.996-18.003
OD=18.003-18.010,D=18.003-18.010
OD=18.010-18.017,D=18.010-18.017
OD=18.017-18.024,D=18.017-18.024
OD=17.989-17.996,D=17.989-17.996
45814COLLAR, TILT STEERING SUPPORT, NO.2
OD=17.982-18.000,D=17.982-18.000
OD=18.000-18.018,D=18.000-18.018
45815SHIM, TILT STEERING SUPPORT
T=0.2,T=0.2
T=0.5,T=0.5
T=0.8,T=0.8
T=1.4,T=1.4
T=1.8,T=1.8
45819RETAINER, TILT LEVER
45819ACOLLAR(FOR TILT LEVER RETAINER)
45824PAWL, TILT STEERING
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826BPIN(FOR STEERING TILT LEVER)
45892BOLT, TILT STEERING SUPPORT STOPPER
45892ACOVER, TILT STEERING SUPPORT STOPPER
45892BSUPPORT, TILT STEERING COLUMN COVER
9010908112
main90109-08112
9011408002
main90114-08002
9011906165
main90119-06165
9011908042
main90119-08042
9011908185
main90119-08185
9016450048
main90164-50048
9017008194
main90170-08194
9017910178
main90179-10178
9020106204
main90201-06204
9020108065
main90201-08065
9020110323
main90201-10323
9093004008
main90930-04008
9112170830
main91121-70830
9161140816
main91611-40816
9161160840
main91611-60840
9165540618
main91655-40618
9165560620
main91655-60620
9331514010
main93315-14010
9411050800
main94110-50800
9414050800
main94140-50800
9418210600
main94182-10600
9418210800
main94182-10800
9451200800
main94512-00800
9453100800
main94531-00800
9538102020
main95381-02020
59 parts on this diagram · 4 diagrams in section
