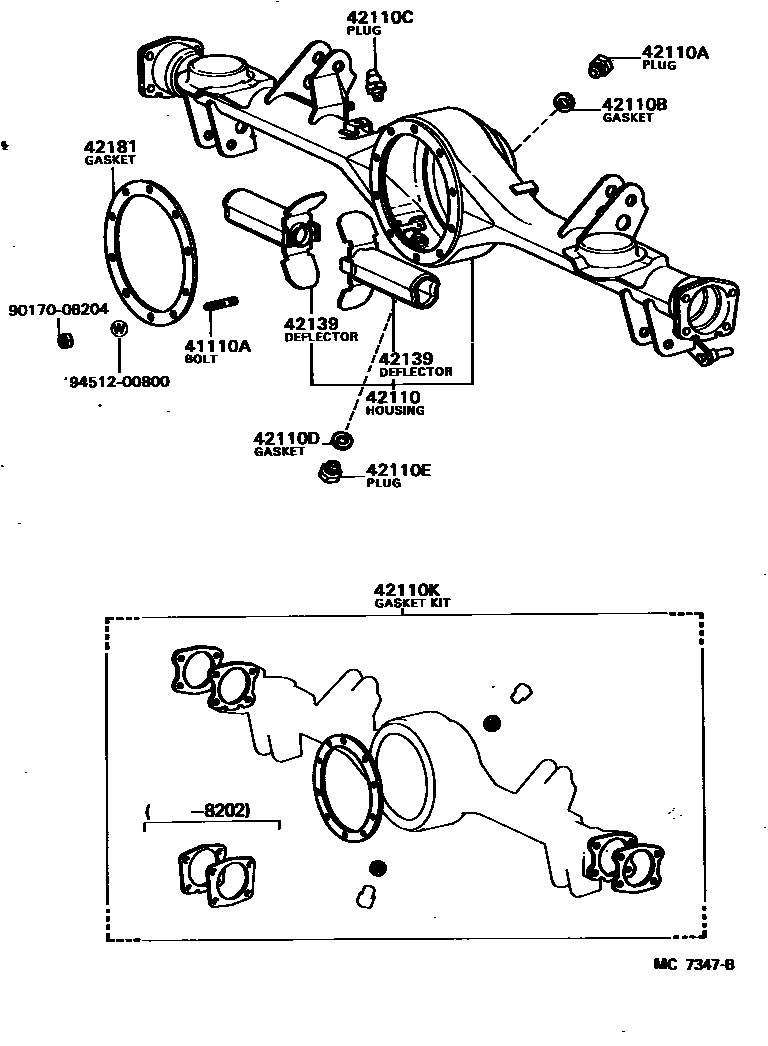

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14180iMX63..MTM198208-198407

*FGR=41:11=3.727,R=41:11=3.727

main41110-14190iMX63..MTM198208-198407

W/LSD,R=41:11=3.727

main41110-14210iMX63..ATM198208-198407

*FGR=41:10=4.100,W/LSD,R=41:10=4.100

main41110-20241iMX62198208-198407

*FGR=41:10=4.100,R=41:10=4.100

main41110-22141iMX63..ATM198208-198407

*FGR=41:10=4.100,R=41:10=4.100

main41110-22170iMX62198009-198208

*FGR=41:11=3.727,R=41:11=3.727

sub41110-22171

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08106iMX62198009-198208

S=17 & 12,L=72,L=86,S=15 & S=12

main90116-08235iMX62198009-198407

S=12 & 15,L=34,L=34,S=15 & S=12

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-22120iMX62..SED198009-198208

sub42110-22170

main42110-23070iMX62198208-198407

sub42110-23090

main42110-23080iMX62..WG198009-198208

sub42110-23090

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iMX62198009-198407

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iMX62198009-198407

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iMX62198009-198407

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iMX62198009-198407

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iMX62198009-198407

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-20030iMX62198202-198407

main04412-22050iMX62198009-198202

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iMX62198009-198407

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iMX62198009-198407

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 4 diagrams in section
