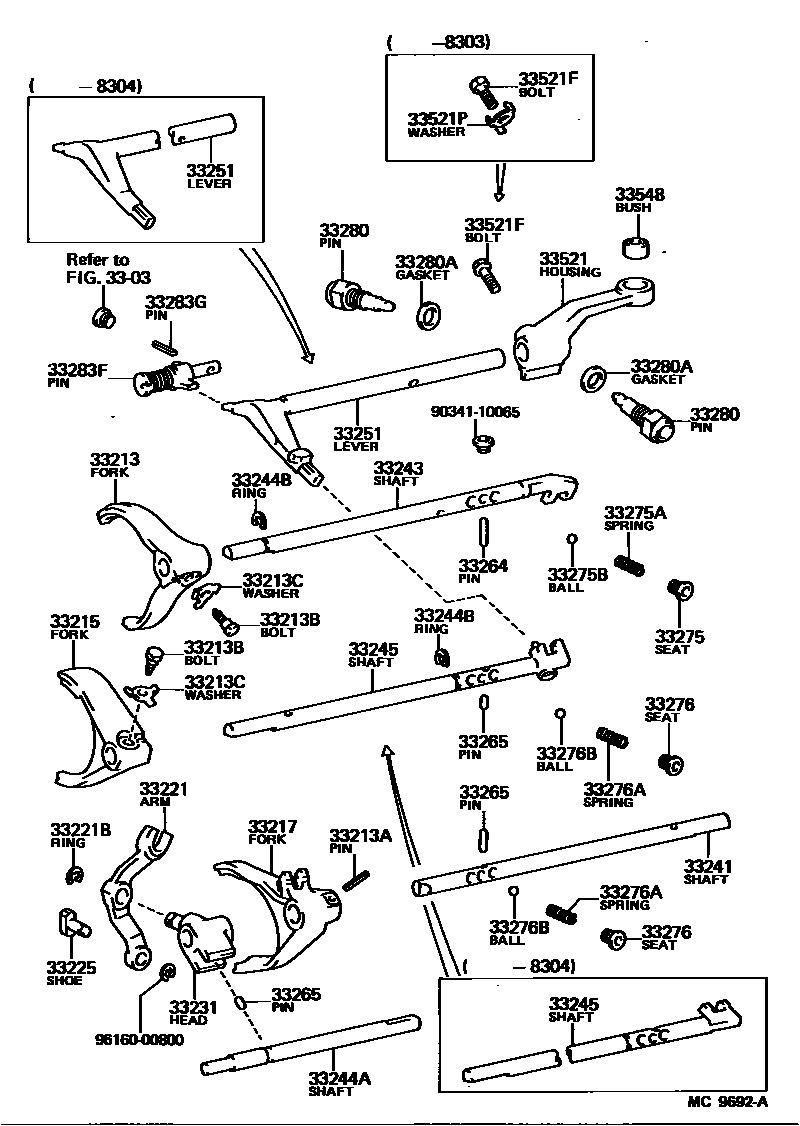

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33213FORK, 1ST & 2ND SHIFT
sub33212-30050
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
sub90105-06143
33213CWASHER, LOCK(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
sub33213-22040
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33231HEAD, REVERSE SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33244ASHAFT, 5TH SHIFT FORK
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245SHAFT, 3RD & 4TH SHIFT FORK
sub33240-22021
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
L=11.2,OD=4,L=11.2
L=13.6,OD=6,L=13.6
L=8.6,OD=6,L=8.6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33276SEAT, SHIFT DETENT BALL SPRING, NO.2
sub90341-12018
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
sub90501-14123
33276BBALL, SHIFT DETENT, NO.2
33280PIN ASSY, REVERSE RESTRICT
RH
LH
33280AGASKET, REVERSE RESTRICT PIN
sub90430-18008
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
33521PWASHER, LOCK (FOR SHIFT LEVER HOUSING)
33548BUSH, SHIFT LEVER
9034110065
main90341-10065
9616000800
main96160-00800
35 parts on this diagram · 1 diagram in section
