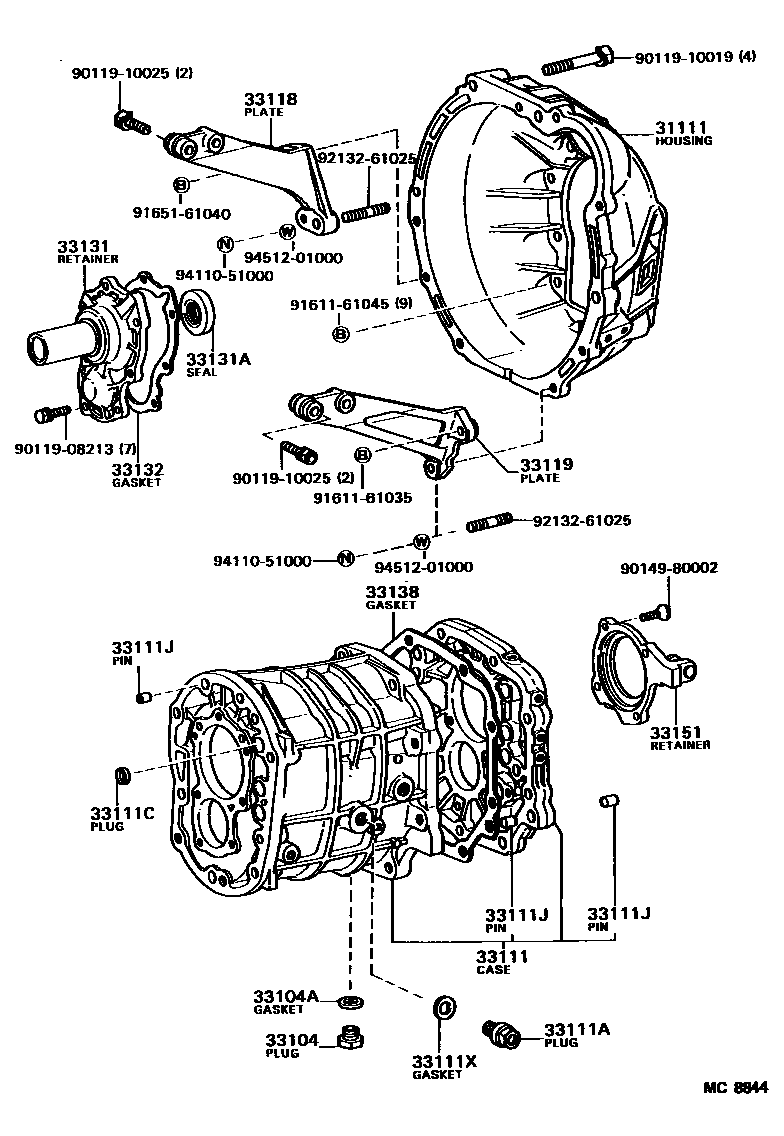

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
sub90430-18008
33111CASE, MANUAL TRANSMISSION
sub33101-22031
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12,L=16,D=12
33111XGASKET, TRANSMISSION CASE PLUG
sub90430-18008
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
sub33131-22021
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33132GASKET, FRONT BEARING RETAINER(MTM)
33138GASKET, INTERMEDIATE PLATE
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908213
main90119-08213
9011910019
main90119-10019
9011910025
main90119-10025
9014980002
main90149-80002
9161161035
main91611-61035
9161161045
main91611-61045
9165161040
main91651-61040
9213261025
main92132-61025
9411051000
main94110-51000
9451201000
main94512-01000
25 parts on this diagram · 1 diagram in section
