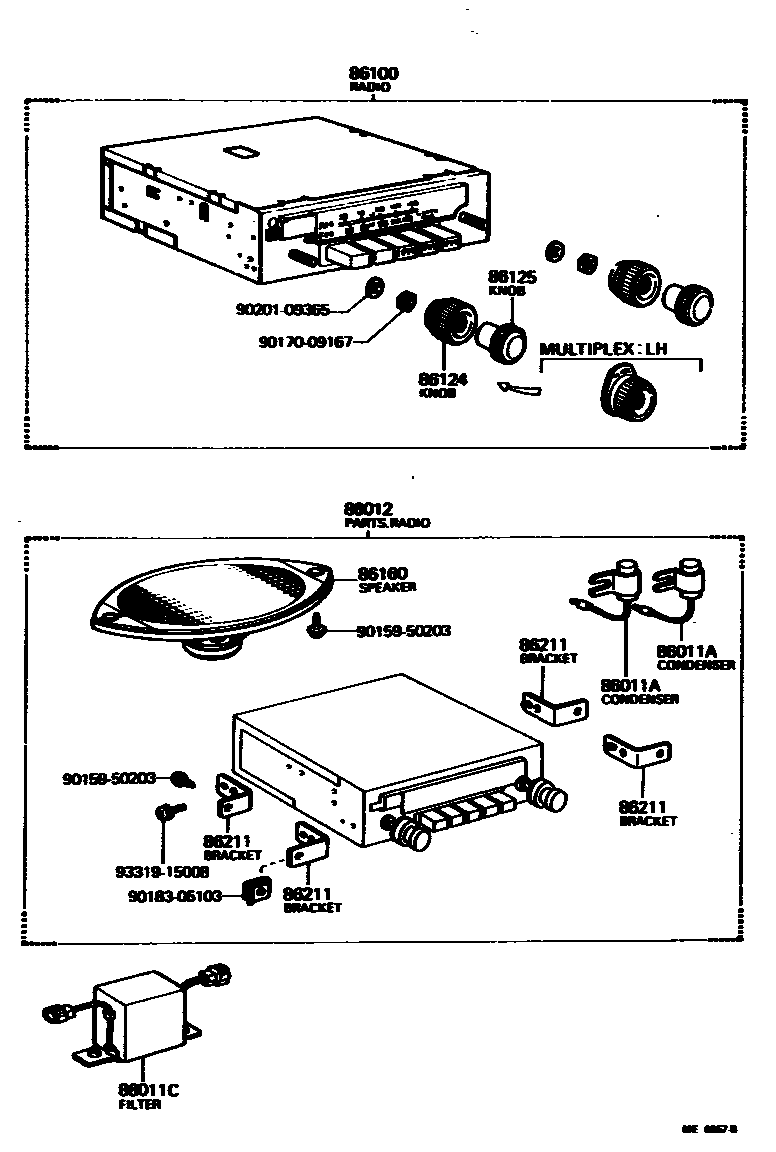

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011ACONDENSER, RADIO SETTING

main90980-04010iMX32..LG..CBR¥710197708-198008

FOR REGULATOR

main90980-04011iMX32..LG..CBR¥460197708-198008

FOR IGNITION COIL

86011CFILTER, NOISE

main90980-05027iMX32¥5,800197708-197808

TEN

86012PARTS SET, RADIO SETTING

main86012-29055iMX3#¥8,100197708-197709

sub86012-29056

main86012-29056iMX32..LG..CBR197709-198008

86100RADIO ASSY

main86100-22182iMX32..LG..CBR197708-198004

AM/FM 5-BUTTON

main86100-22192iMX32..LG..CBR197708-198008

MULTIPLEX, AM/FM 5-BUTTON

86124KNOB, RADIO RECEIVER CONTROL

main86124-22030iMX3#197708-197808

MULTIPLEX: RH

sub86124-22031

main86124-22031iMX32..LG..CBR197808-198004

main86124-22031iMX32..LG..CBR197808-198008

MULTIPLEX: RH

main86124-22040iMX32..LG..CBR197708-198008

MULTIPLEX: LH

86125KNOB, RADIO RECEIVER SWITCH

main86125-22020iMX32..LG..CBR197708-198008

86160SPEAKER ASSY, FRONT NO.1

main86160-22030iMX32¥1,900197708-197709

FOR REAR

sub86160-22031

main86160-22031iMX32..LG..CBR197709-198004

FOR REAR

main86160-22040iMX3#¥1,750197708-197709

FOR FRONT

sub86160-22041

main86160-22041iMX32..LG..CBR197709-198008

FOR FRONT

sub86160-95012

main86160-22080iMX32198004-198008

FOR REAR

main86160-23010iMX36¥4,300197708-197710

FOR REAR

sub86160-23011¥4,300

main86160-23011iMX32..LG..CBR¥4,300197710-198004

sub86160-23012

main86160-23012iMX36198004-198008

FOR REAR

sub86160-20080

86211BRACKET, RADIO, NO.1

main86211-22040iMX32..LG..CBR197708-198008

9015950203

main90159-50203¥70

9017009167

main90170-09167¥160

9018305103

main90183-05103¥90

9020109365

main90201-09365¥140

9331915008

main93319-15008¥170

13 parts on this diagram · 3 diagrams in section
