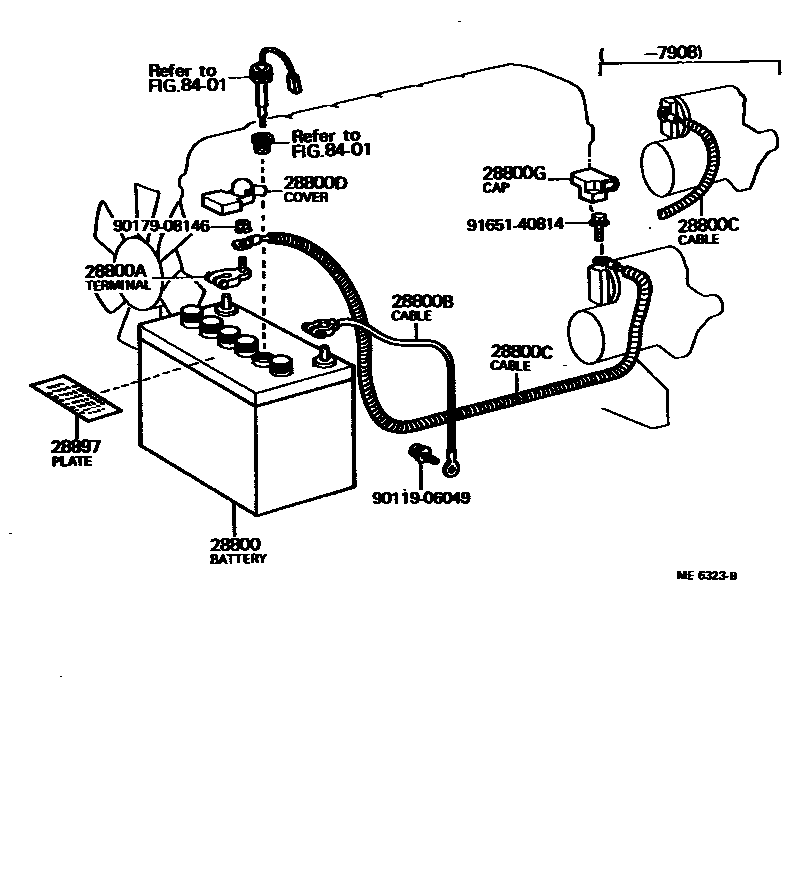

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26010i4M..MX3#197708-197802

N50L,GS

sub28800-27010

main28800-30131i4M..MX32..LG197802-197908

55D26R,N50ZL,GS

sub28800-73010

main28800-41040i4ME..MX3#197908-198008

N50ZL,GS

sub28800-43070

main28800-42010i4M..MX32..LG197708-197908

75D31L,N70ZL,GS

sub28800-42020

main28800-45030i4ME..MX3#197908-198008

N70ZL-MFB,GS

28800ATERMINAL, BATTERY POSITIVE

main90982-05009i4M..MX32..LG197708-198008

28800BCABLE, BATTERY TO GROUND

main90982-02124i4M..MX32..LG197708-198008

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-22230i4ME..MX3#197908-198008

12V 1.4KW STARTER

main90982-01209i4ME..MX3#197908-198008

12V 1.0KW STARTER

sub90982-01239

main90982-01209i4M..MX32..LG197708-197908

sub90982-01239

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12030i4M..MX32..LG197708-198008

sub82821-30080

28800GCAP, TERMINAL(FOR STARTER)

main82823-14050i4ME..MX3#197908-198008

28897PLATE, BATTERY CAUTION

main28897-38010i4ME..MX32197811-197910

CANADA

main28897-45010i4M..MX32..LG197708-197908

USA

sub28897-26010

main28897-45040i4ME..MX32197910-198008

CANADA

sub28897-35010

8401

9011906049

main90119-06049

9017908146

main90179-08146

9165140814

main91651-40814

11 parts on this diagram · 1 diagram in section
