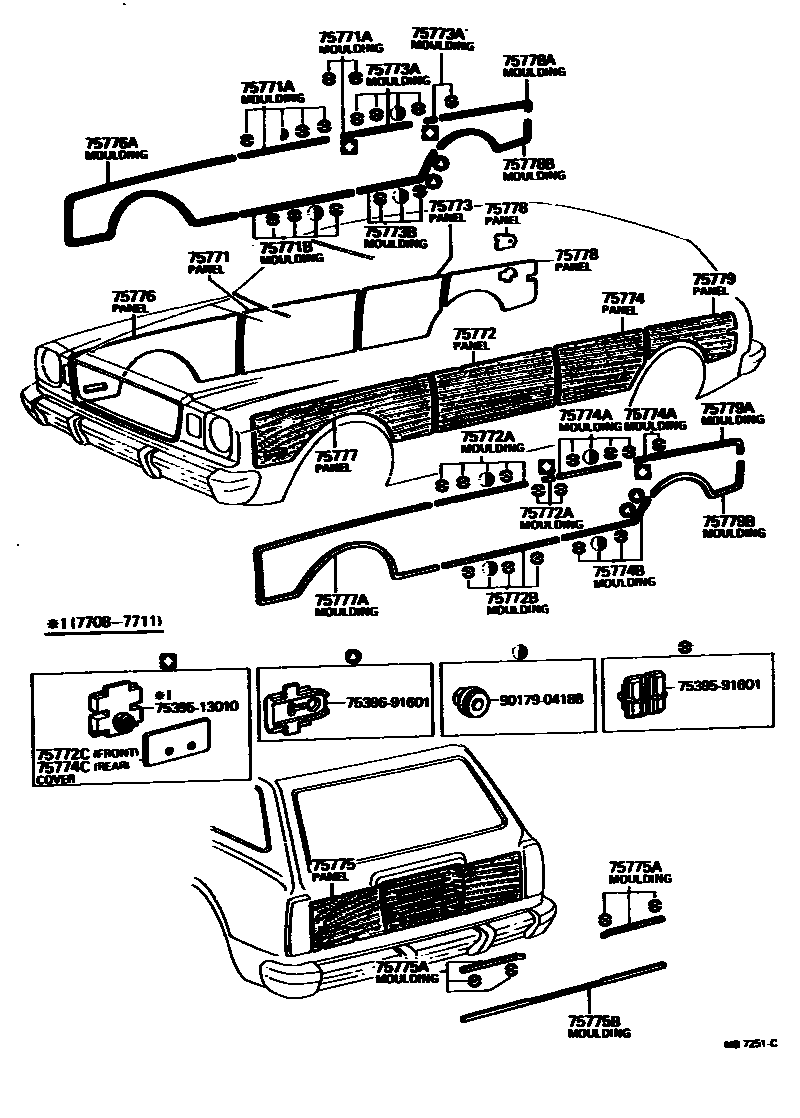

WOODEN GRAIN PANEL & MOULDING

75771PANEL, FRONT DOOR OUTER SIDE FINISH, RH

main75985-91600iMX32..LG..CBR197708-198008

75771AMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.1

main76201-29015iMX32..LG..CBR197708-198008

FOR FRONT

main76213-91600iMX32..LG..CBR197708-198008

FOR REAR

75771BMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, RH NO.2

main76203-29015iMX32..LG..CBR197708-198008

75772PANEL, FRONT DOOR OUTER SIDE FINISH, LH

main75986-91600iMX32..LG..CBR197708-198008

75772AMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.1

main76202-29015iMX32..LG..CBR197708-198008

FOR FRONT

main76214-91600iMX32..LG..CBR197708-198008

FOR REAR

75772BMOULDING, FRONT DOOR OUTER SIDE FINISH PANEL, LH NO.2

main76204-29015iMX32..LG..CBR197708-198008

75772CCOVER, OUTSIDE MOULDING FRONT END

main76687-91600iMX36197708-197711

sub76691-91601

main76687-91601iMX32..LG..CBR197711-198008

75773PANEL, REAR DOOR OUTER SIDE FINISH, RH

main75987-91600iMX32..LG..CBR197708-198008

75773AMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, RH NO.1

main76205-29015iMX32..LG..CBR197708-198008

FOR FRONT

main76233-91600iMX32..LG..CBR197708-198008

FOR REAR

75773BMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, RH NO.2

main76207-29015iMX32..LG..CBR197708-198008

75774PANEL, REAR DOOR OUTER SIDE FINISH, LH

main75988-91600iMX32..LG..CBR197708-198008

75774AMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, LH NO.1

main76206-29015iMX32..LG..CBR197708-198008

FOR FRONT

main76233-91600iMX32..LG..CBR197708-198008

FOR REAR

75774BMOULDING, REAR DOOR OUTER SIDE FINISH PANEL, LH NO.2

main76208-29015iMX32..LG..CBR197708-198008

75774CCOVER, OUTSIDE MOULDING REAR END

main76691-91600iMX36197708-197711

sub76687-91601

main76691-91601iMX32..LG..CBR197711-198008

75775PANEL, BACK DOOR OUTER SIDE FINISH

main75989-91600iMX32..LG..CBR197708-198008

75775AMOULDING, BACK DOOR OUTER SIDE FINISH PANEL, NO.1

main76107-91600iMX36197708-197808

FOR RH.

main76107-91603iMX32..LG..CBR197808-198008

FOR RH.

main76108-91600iMX36197708-197808

FOR LH.

main76108-91603iMX32..LG..CBR197808-198008

FOR LH.

75775BMOULDING, BACK DOOR OUTER SIDE FINISH PANEL, NO.2

main76109-91600iMX32..LG..CBR197708-198008

75776PANEL, FRONT FENDER OUTER SIDE FINISH, RH

main75981-91600iMX32..LG..CBR197708-198008

75776AMOULDING, FRONT FENDER OUTER SIDE FINISH PANEL, RH NO.1

main76101-91600iMX32..LG..CBR197708-198008

75777PANEL, FRONT FENDER OUTER SIDE FINISH, LH

main75982-91600iMX32..LG..CBR197708-198008

75777AMOULDING, FRONT FENDER OUTER SIDE FINISH PANEL, LH NO.1

main76102-91600iMX32..LG..CBR197708-198008

75778PANEL, QUARTER PANEL OUTSIDE FINISH, RH

main75991-91600iMX32..LG..CBR197708-198008

main75993-91600iMX32..LG..CBR197708-198008

FOR FUEL INLET COVER

75778AMOULDING, QUARTER PANEL OUTSIDE FINISH PANEL, RH NO.1

main76103-91600iMX32..LG..CBR197708-198008

75778BMOULDING, QUARTER PANEL OUTSIDE FINISH PANEL, RH NO.2

main76105-91600iMX32..LG..CBR197708-198008

75779PANEL, QUARTER PANEL OUTER SIDE FINISH, LH

main75992-91600iMX32..LG..CBR197708-198008

75779AMOULDING, QUARTER PANEL OUTER SIDE FINISH PANEL, LH NO.1

main76104-91600iMX32..LG..CBR197708-198008

75779BMOULDING, QUARTER PANEL OUTER SIDE FINISH PANEL, LH NO.2

main76106-91600iMX32..LG..CBR197708-198008

7539513010CLIP, BACK DOOR MOULDING, NO.1

main75395-13010

7539591601CLIP, BACK DOOR MOULDING, NO.1

main75395-91601

7539691601CLIP, OUTSIDE MOULDING, NO.2

main75396-91601

9017904188

main90179-04188

31 parts on this diagram · 1 diagram in section
