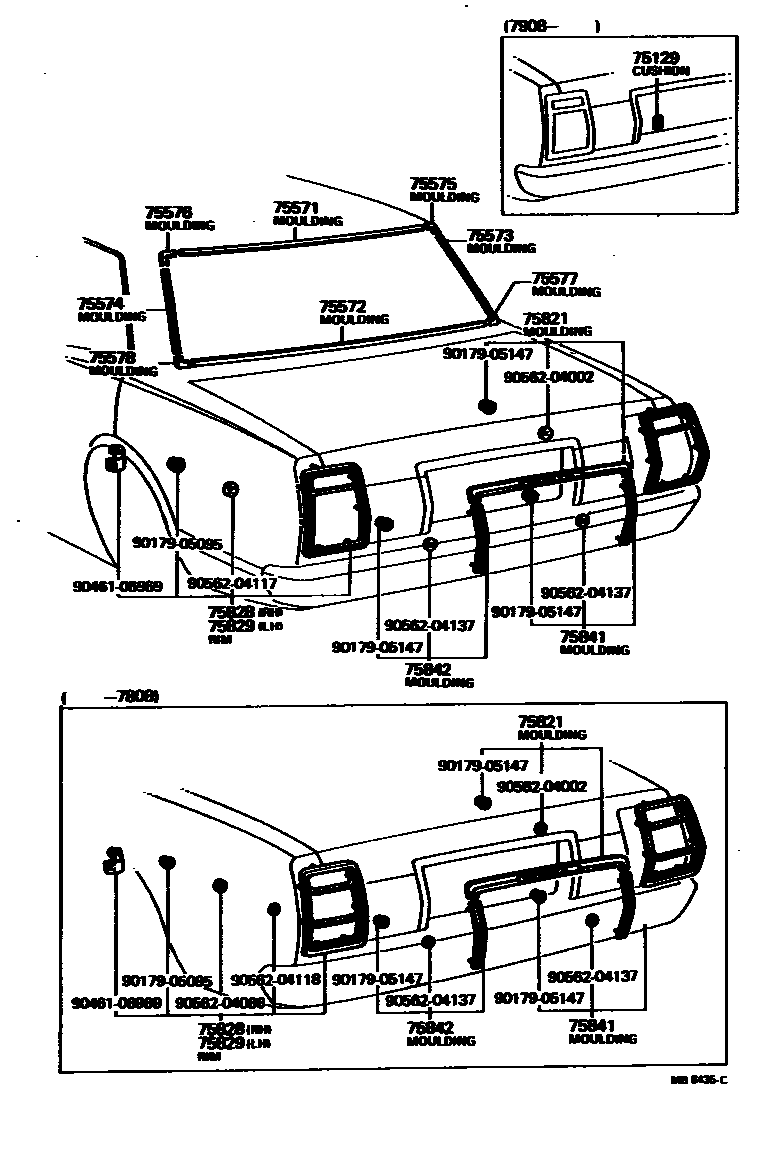

REAR MOULDING

0001 1 0002 1

75129CUSHION, REAR LICENSE PLATE

main75129-22010iMX32197908-198008

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-22050iMX32..LG..CBR197708-198008

75572MOULDING, BACK WINDOW, LOWER

main75575-22030iMX32..LG..CBR197708-198008

main75575-91603iMX32..LG..CBR197708-198008

sub75575-91604

75573MOULDING, BACK WINDOW SIDE, RH

main75573-22050iMX32..LG..CBR197708-198008

main75573-91604iMX32..LG..CBR197708-198008

sub75573-91605

75574MOULDING, BACK WINDOW SIDE, LH

main75574-22030iMX32..LG..CBR197708-198008

main75574-91603iMX32..LG..CBR197708-198008

sub75574-91604

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-22010iMX32..LG..CBR197708-198008

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75582-22010iMX32..LG..CBR197708-198008

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-22010iMX32..LG..CBR197708-198008

main75583-91600iMX32..LG..CBR197708-198008

sub75583-91601

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-91600iMX32..LG..CBR197708-198008

sub75583-91601

main75584-22010iMX32..LG..CBR197708-198008

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75801-29035iMX32..LG..CBR197708-198008

75828RIM, REAR COMBINATION LAMP OUTER, RH

main75901-29015iMX32197708-197808

main75901-29055iMX32..LG..CBR197808-198008

75829RIM, REAR COMBINATION LAMP OUTER, LH

main75902-29015iMX32197708-197808

main75902-29055iMX32..LG..CBR197808-198008

75841MOULDING, BODY LOWER BACK PANEL, RH

main75803-29075iMX32..LG..CBR197708-198008

75842MOULDING, BODY LOWER BACK PANEL, LH

main75804-29085iMX32..LG..CBR197708-198008

9017905095

main90179-05095

9017905147

main90179-05147

9046106969

main90461-06969

9056204002

main90562-04002

9056204066

main90562-04066

9056204117

main90562-04117

9056204118

main90562-04118

9056204137

main90562-04137

22 parts on this diagram · 2 diagrams in section
