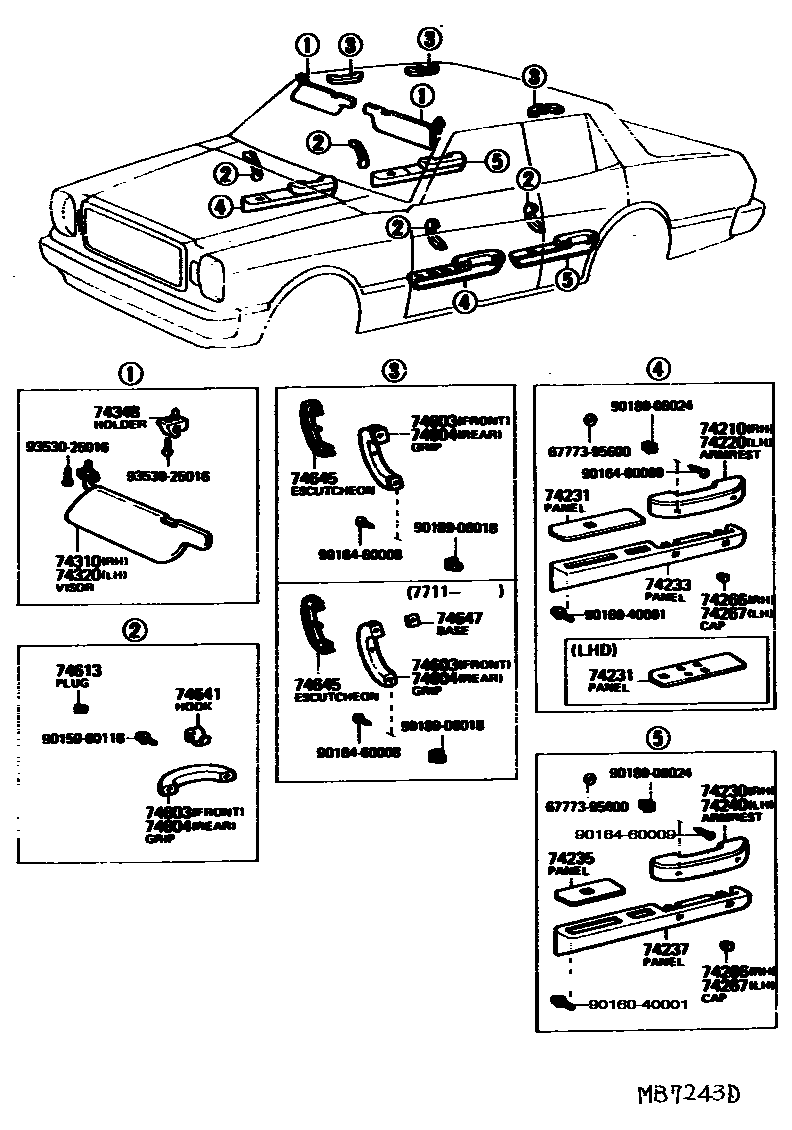

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
74220ARMREST ASSY, FRONT, LH
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
74230ARMREST ASSY, REAR, RH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
74231PANEL, FRONT ARMREST BASE, UPPER RH
FOR RH.
FOR LH.
74233PANEL, FRONT ARMREST BASE, LOWER
74235PANEL, REAR ARMREST BASE, UPPER
FOR RH.
FOR LH.
74237PANEL, REAR ARMREST BASE, LOWER
FOR RH. BLACK,BLACK
FOR RH. DARK WINE,RED/MAROON
FOR RH. BEIGE,BEIGE
FOR LH. BLACK,BLACK
FOR LH. DARK WINE,RED/MAROON
FOR LH. BEIGE,BEIGE
74240ARMREST ASSY, REAR, LH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
74266CAP, DOOR ARMREST, RH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
74267CAP, DOOR ARMREST, LH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
74310VISOR ASSY, RH
BEIGE,BEIGE
IVORY,IVORY
74320VISOR ASSY, LH
BEIGE,BEIGE
IVORY,IVORY
74348HOLDER, VISOR
74603GRIP SUB-ASSY, ASSIST, FRONT
74604GRIP SUB-ASSY, ASSIST, REAR
74613PLUG, ASSIST GRIP
74641HOOK, COAT, B
74645ESCUTCHEON, DOOR ASSIST GRIP
74647BASE, DOOR ASSIST GRIP
6777395600
main67773-95600
9015960118
main90159-60118
9016040001
main90160-40001
9016460008
main90164-60008
9016460009
main90164-60009
9018906018
main90189-06018
9018906024
main90189-06024
9353025016
main93530-25016
27 parts on this diagram · 1 diagram in section
