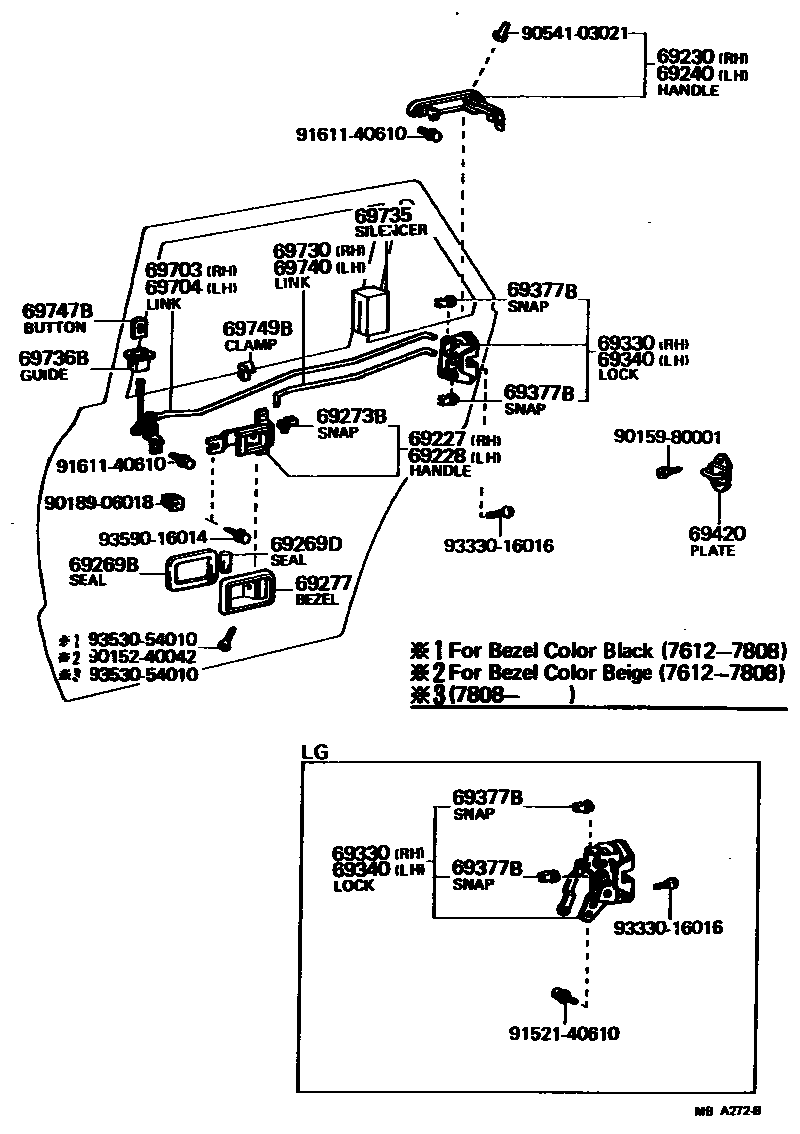

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69269BSEAL, DOOR INSIDE HANDLE NO.1(FOR REAR DOOR)
69269DSEAL, DOOR INSIDE HANDLE NO.2(FOR REAR DOOR)
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69277BEZEL, REAR DOOR INSIDE HANDLE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
69420PLATE ASSY, REAR DOOR LOCK STRIKER
sub69410-89103
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69735SILENCER, REAR DOOR LOCK LINK
69736BGUIDE, REAR DOOR LOCK LINK
sub69736-22021
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
sub69741-32010
69749BCLAMP, REAR DOOR LOCK LINK
9015240042
main90152-40042
9015980001
main90159-80001
9018906018
main90189-06018
9054103021
main90541-03021
9152140610
main91521-40610
9161140610
main91611-40610
9333016016
main93330-16016
9353054010
main93530-54010
9359016014
main93590-16014
29 parts on this diagram · 1 diagram in section
