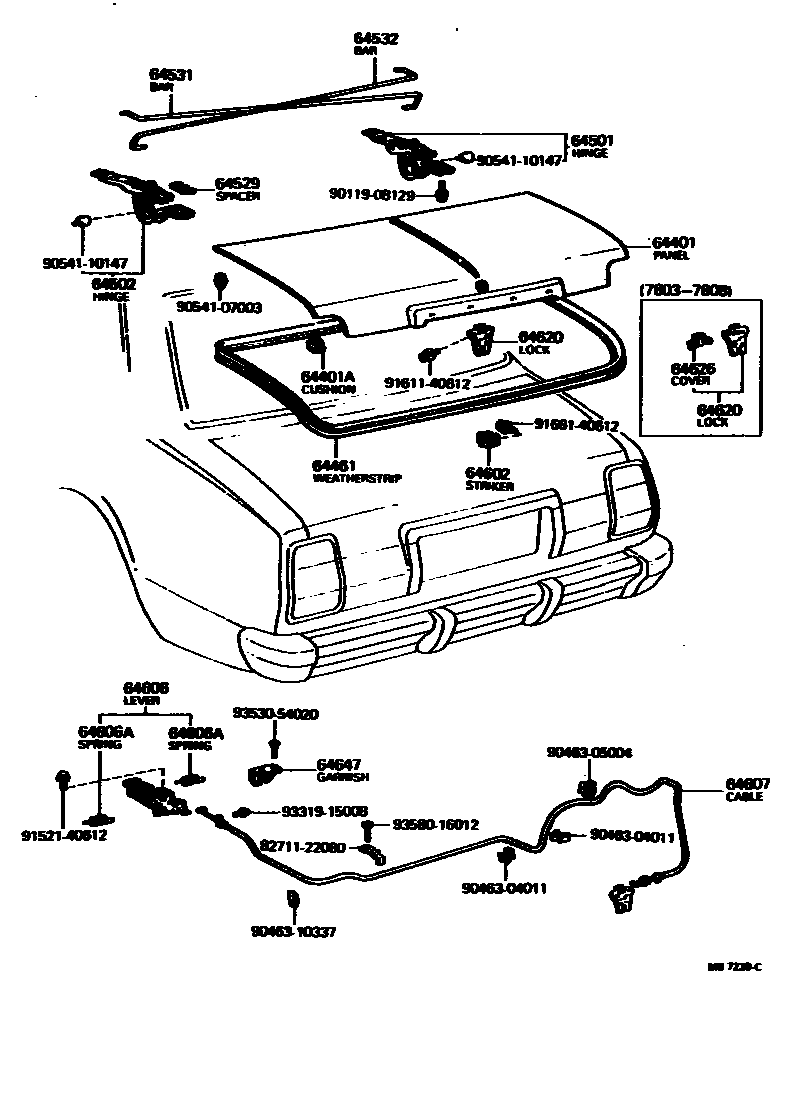

LUGGAGE COMPARTMENT DOOR & LOCK
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
sub64531-22050
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
sub64532-22050
64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64626COVER, LUGGAGE COMPARTMENT DOOR LOCK
64647GARNISH, LUGGAGE LOCK CONTROL LEVER
8271122080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22080
9011908129
main90119-08129
9046304011
main90463-04011
9046305004
main90463-05004
9046310337
main90463-10337
9054107003
main90541-07003
9054110147
main90541-10147
9152140612
main91521-40612
9161140612
main91611-40612
9166140612
main91661-40612
9331915008
main93319-15008
9353054020
main93530-54020
9358016012
main93580-16012
28 parts on this diagram · 1 diagram in section
