MAT & CARPET

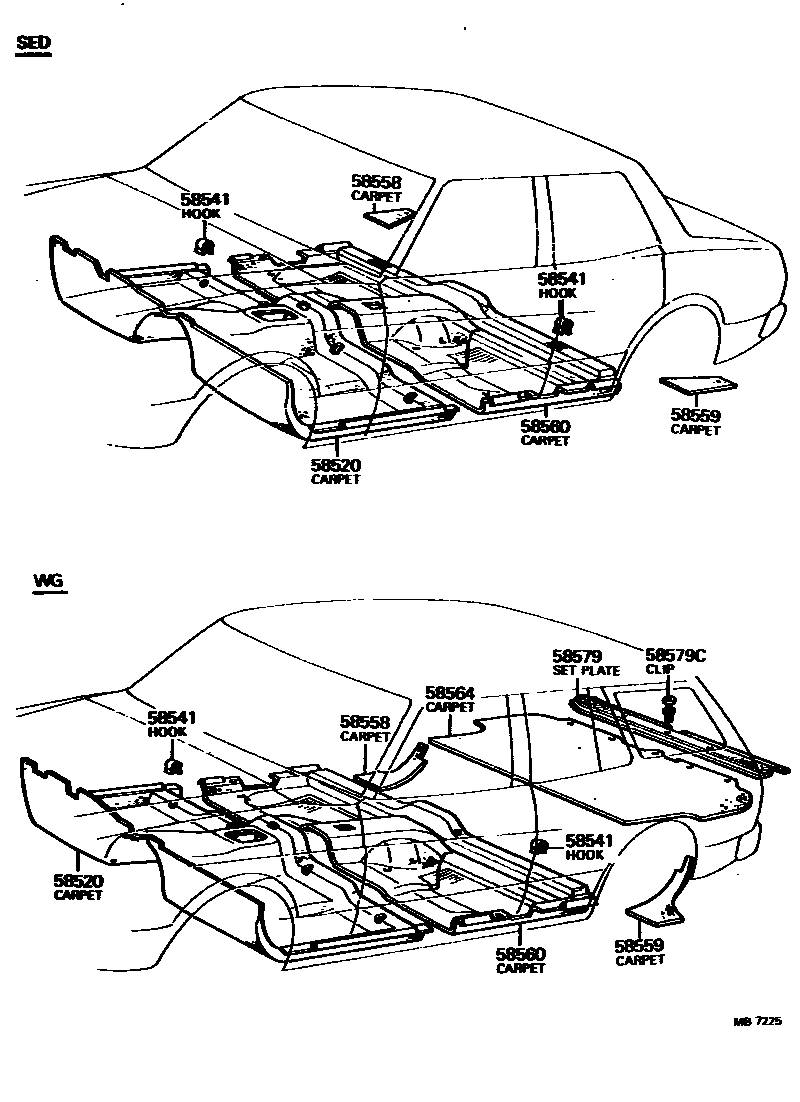

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-22190-01i197708-197808
W/HEATER,BLACK,BLACK
sub58510-22191
main58510-22190-03i197708-197808
W/HEATER,GRAY,GRAY
sub58510-22191
main58510-22190-05i197708-197808
W/HEATER,BEIGE,BEIGE
sub58510-22191
main58510-22191-01i197808-198008
W/HEATER,BLACK,BLACK
main58510-22191-02i197808-198008
W/HEATER,DARK WINE,RED/MAROON
main58510-22191-05i197808-198008
W/HEATER,BEIGE,BEIGE
main58510-22430-01i197708-197808
L/HEATER,BLACK,BLACK
sub58510-22431
main58510-22430-03i197708-197808
L/HEATER,GRAY,GRAY
sub58510-22431
main58510-22430-05i197708-197808
L/HEATER,BEIGE,BEIGE
sub58510-22431
main58510-22431-01i197808-198008
L/HEATER,BLACK,BLACK
main58510-22431-02i197808-198008
L/HEATER,DARK WINE,RED/MAROON
main58510-22431-05i197808-198008
L/HEATER,BEIGE,BEIGE
58541HOOK, MALE, NO.1(FOR CARPET)
main58521-22040i197708-198008
58558CARPET, REAR SEAT SIDE, RH
main58553-22020-01i197708-198008
BLACK,BLACK
main58553-22020-02i197808-198008
DARK WINE,RED/MAROON
main58553-22020-03i197708-197808
GRAY,GRAY
main58553-22020-05i197708-198008
BEIGE,BEIGE
main58553-91600-01i197708-198008
BLACK,BLACK
main58553-91600-02i197808-198008
DARK WINE,RED/MAROON
main58553-91600-03i197708-197808
GRAY,GRAY
main58553-91600-05i197708-198008
BEIGE,BEIGE
58559CARPET, REAR SEAT SIDE, LH
main58553-22020-01i197710-198008
BLACK,BLACK
main58553-22020-02i197808-198008
DARK WINE,RED/MAROON
main58553-22020-03i197710-197808
GRAY,GRAY
main58553-22020-05i197710-198008
BEIGE,BEIGE
main58554-22020-01i197708-197710
BLACK,BLACK
sub58553-22020
main58554-22020-03i197708-197710
GRAY,GRAY
sub58553-22020
main58554-22020-05i197708-197710
BEIGE,BEIGE
sub58553-22020
main58554-91600-01i197708-198008
BLACK,BLACK
main58554-91600-02i197808-198008
DARK WINE,RED/MAROON
main58554-91600-03i197708-197808
GRAY,GRAY
main58554-91600-05i197708-198008
BEIGE,BEIGE
58560CARPET ASSY, FLOOR, REAR
main58540-22301-01i197708-197808
BLACK,BLACK
main58540-22301-03i197708-197808
GRAY,GRAY
main58540-22301-05i197708-197808
BEIGE,BEIGE
main58540-22302-01i197808-198008
BLACK,BLACK
main58540-22302-02i197808-198008
DARK WINE,RED/MAROON
main58540-22302-05i197808-198008
BEIGE,BEIGE
58564CARPET, REAR FLOOR
main58571-91601-01i197708-198008
BLACK,BLACK
main58571-91601-02i197808-198008
DARK WINE,RED/MAROON
main58571-91601-03i197708-197808
GRAY,GRAY
main58571-91601-05i197708-197905
BEIGE,BEIGE
main58571-91601-15i197905-198008
BEIGE,BEIGE
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58387-91600-01i197708-198008
BLACK,BLACK
main58387-91600-02i197808-198008
DARK WINE,RED/MAROON
main58387-91600-03i197708-197808
GRAY,GRAY
main58387-91600-05i197708-198008
BEIGE,BEIGE
58579CCLIP, REAR FLOOR CARPET SET
main90467-08114-02i197808-198008
DARK WINE,RED/MAROON
sub90467-08114
main90467-08114-11i197708-198008
BLACK,BLACK
sub90467-08114
main90467-08114-25i197708-198008
BEIGE,BEIGE
sub90467-08114
main90467-08114-53i197708-197808
GRAY,GRAY
sub90467-08114

8 parts on this diagram · 1 diagram in section
