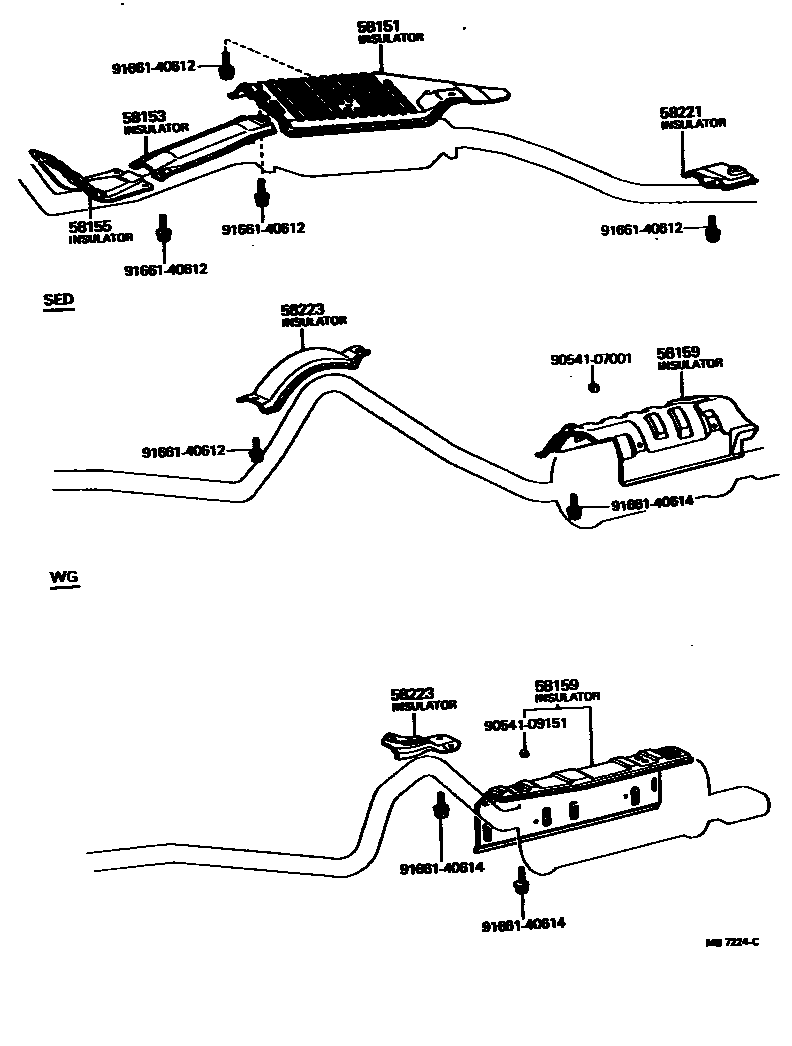

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-22040iMX3#197708-197808

main58041-22041iMX32..LG..CBR197808-198008

sub58041-22042

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-22030iMX32..LG..CBR197708-198008

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22020iMX32..LG..CBR197808-198008

58159INSULATOR, MAIN MAFFLAR HEAT

main58031-21010iMX36197708-197803

main58031-21011iMX32..LG..CBR197803-198008

main58031-22020iMX32..LG..CBR197708-198008

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-22060iMX32..LG..CBR197708-198008

main58221-91600iMX32..LG..CBR197708-198008

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-22040iMX32197708-198008

main58322-91603iMX32..LG..CBR197708-198008

9054107001

main90541-07001

9054109151

main90541-09151

9166140612

main91661-40612

9166140614

main91661-40614

10 parts on this diagram · 1 diagram in section
