FLOOR PAN & LOWER BACK PANEL

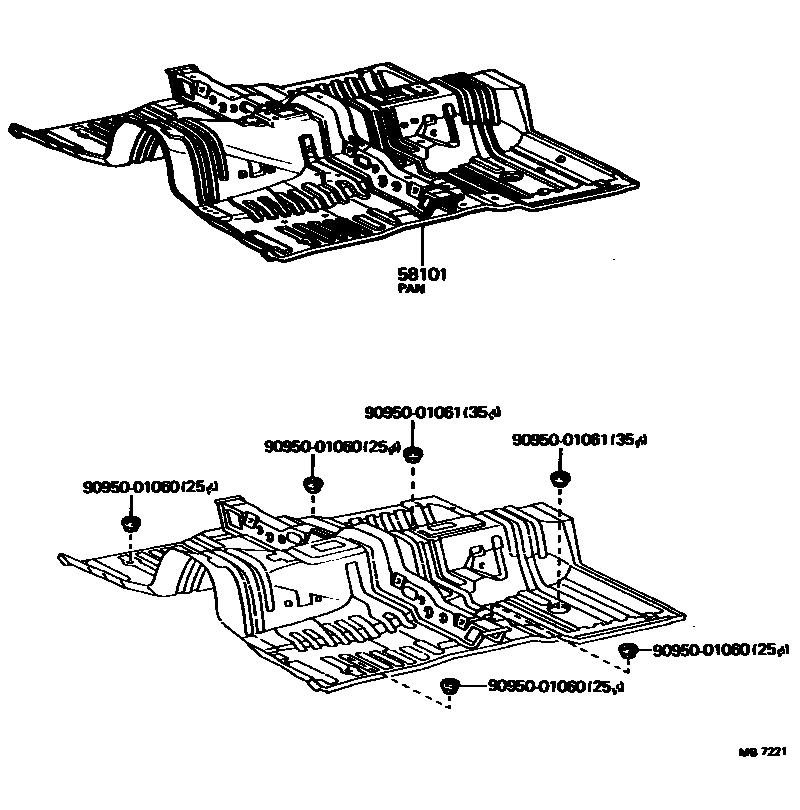

Parts diagram
58101PAN SUB-ASSY, FRONT FLOOR
main58101-22221i197808-197908
sub58101-22222
main58101-22222i197908-197911
sub58101-22223
sub46361-22050
main58101-91603i197708-197808
sub58101-22310
sub46361-22050
sub72130-22080
sub72140-22080
main58111-22053i197911-198008
9095001060
main90950-01060
9095001061
main90950-01061

3 parts on this diagram · 4 diagrams in section
