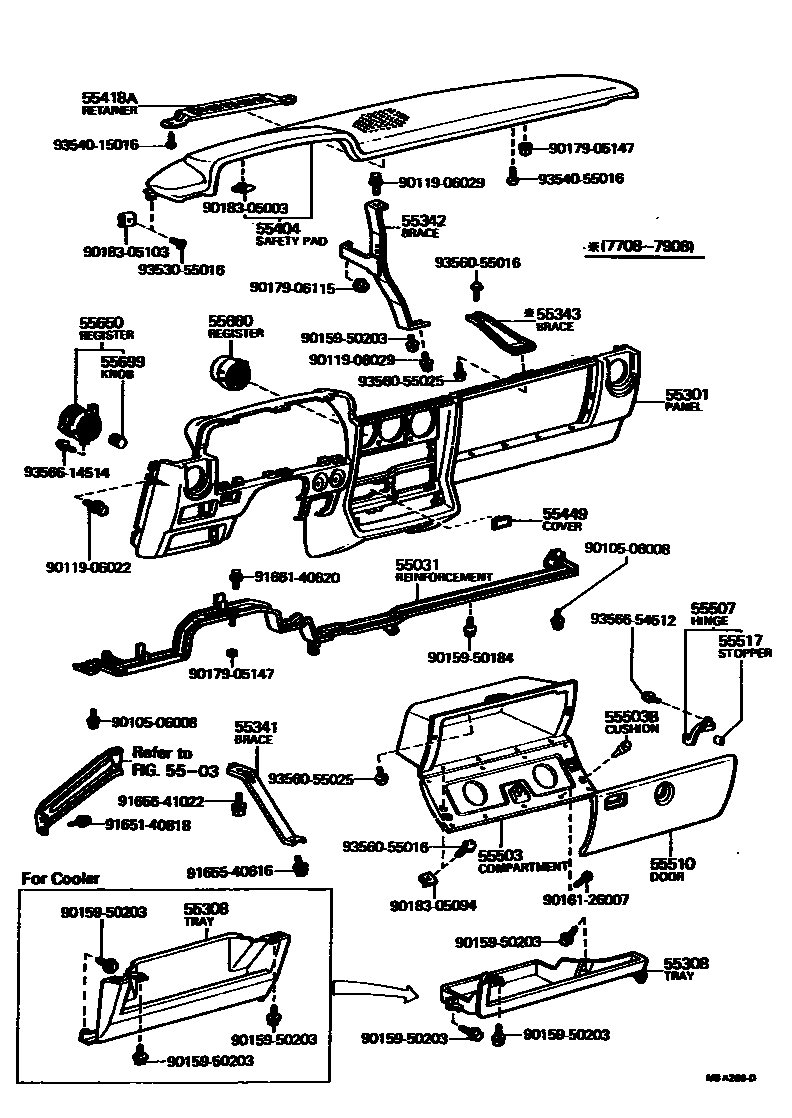

INSTRUMENT PANEL & GLOVE COMPARTMENT
5503
55031REINFORCEMENT, INSTRUMENT PANEL, NO.1
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55343BRACE, INSTRUMENT PANEL, NO.3
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,BLACK
DARK WINE,RED/MAROON
GRAY,GRAY
BEIGE,BEIGE
55418ARETAINER, SAFETY PAD
55449COVER, COOLER SWITCH HOLE
55503COMPARTMENT SUB-ASSY, GLOVE
55503BCUSHION(FOR GLOVE COMPARTMENT)
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
55510DOOR ASSY, GLOVE COMPARTMENT
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55699KNOB, INSTRUMENT PANEL REGISTER CONTROL
9010506008
main90105-06008
9011906022
main90119-06022
9011906029
main90119-06029
9015950184
main90159-50184
9015950203
main90159-50203
9016126007
main90161-26007
9017905147
main90179-05147
9017906115
main90179-06115
9018305003
main90183-05003
9018305094
main90183-05094
9018305103
main90183-05103
9165140818
main91651-40818
9165540616
main91655-40616
9165641022
main91656-41022
9166140620
main91661-40620
9353055016
main93530-55016
9354015016
main93540-15016
9354055016
main93540-55016
9356055016
main93560-55016
9356055025
main93560-55025
9356614514
main93566-14514
9356654512
main93566-54512
40 parts on this diagram · 2 diagrams in section
