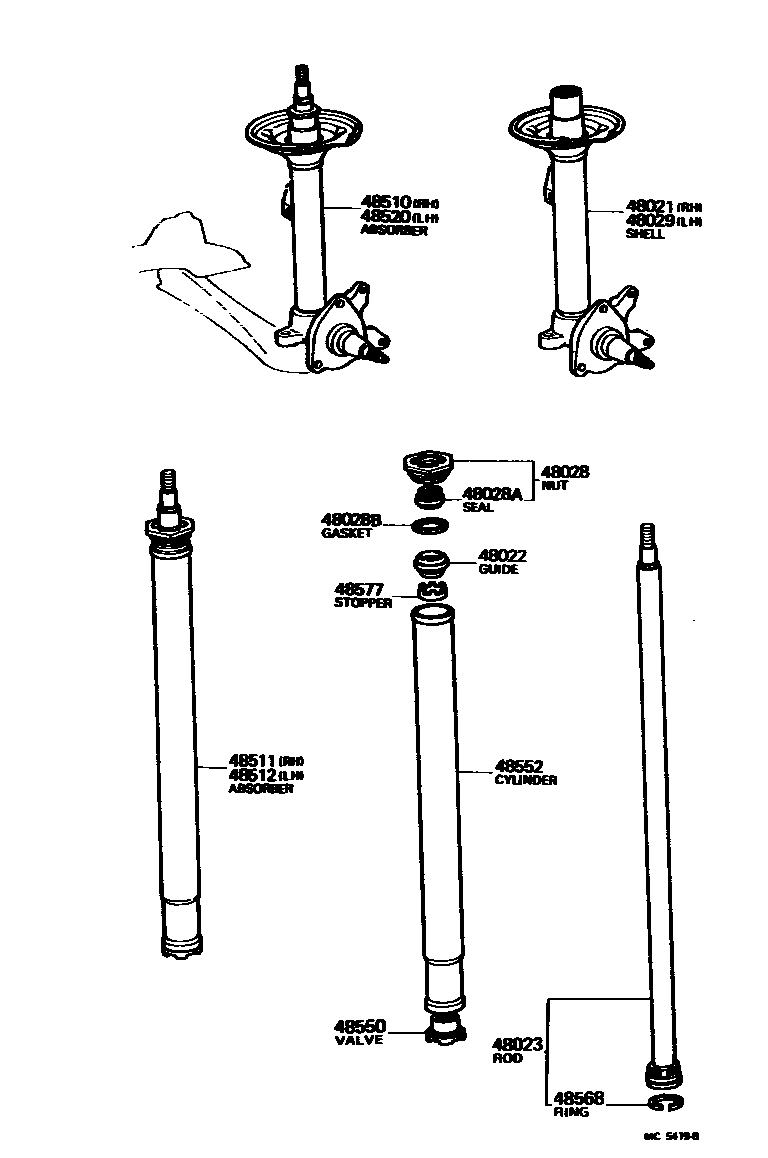

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-22010iMX32..LG..CBR197708-198008

48022GUIDE SUB-ASSY, SHOCK ABSORBER ROD

main48022-22010iMX32..LG..CBR197708-198008

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-22020iMX32..LG..CBR197708-198008

sub48023-22040

main48023-22040iMX32..LG..CBR197708-198008

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-22010iMX32..LG..CBR197708-198008

sub48028-20020

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22002iMX32..LG..CBR197708-198008

sub90316-22003

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-40001iMX32..LG..CBR197708-198008

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-22010iMX32..LG..CBR197708-198008

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-22010iMX32..LG..CBR197708-198008

sub48510-22050

main48510-22040iMX32..LG..CBR197708-198008

sub48510-22020

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-22010iMX32..LG..CBR197708-198008

main48511-22020iMX32..LG..CBR197708-198008

sub48511-22010

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-22010iMX32..LG..CBR197708-198008

main48511-22020iMX32..LG..CBR197708-198008

sub48511-22010

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-22010iMX32..LG..CBR197708-198008

sub48520-22050

main48520-22040iMX32..LG..CBR197708-198008

sub48520-22020

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-22010iMX32..LG..CBR197708-198008

main48550-22020iMX32..LG..CBR197708-198008

sub48550-22070

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-22010iMX3#197708-197710

sub48552-22011

main48552-22011iMX32..LG..CBR197710-198008

48568RING, SHOCK ABSORBER PISTON

main48568-22010iMX3#197908-198008

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-22020iMX3#197708-197802

sub48577-22021

main48577-22021iMX32..LG..CBR197802-198008

15 parts on this diagram · 2 diagrams in section
