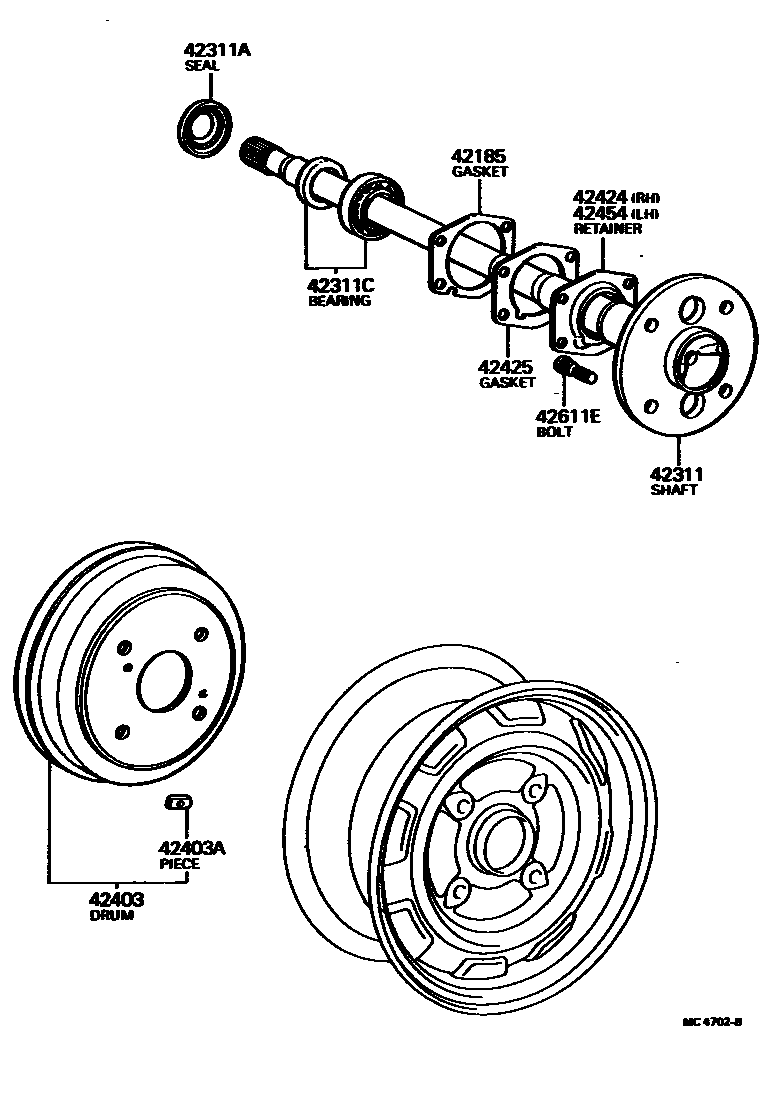

REAR AXLE SHAFT & HUB
42185GASKET, REAR AXLE HOUSING END
42311SHAFT, REAR AXLE
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
42311CBEARING(FOR REAR AXLE SHAFT)
sub04421-30012
42403DRUM SUB-ASSY, REAR BRAKE
sub42431-12060
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
10G,10G.
20G,20G.
30G,30G.
40G,40G.
50G,50G.
60G,60G.
40G,40G.
50G,50G.
60G,60G.
42424RETAINER, REAR AXLE BEARING, OUTER, RH
42425GASKET, REAR AXLE BEARING RETAINER
42454RETAINER, REAR AXLE BEARING, OUTER, LH
42611EBOLT, HUB (FOR REAR AXLE)
sub90942-02047
10 parts on this diagram · 1 diagram in section
