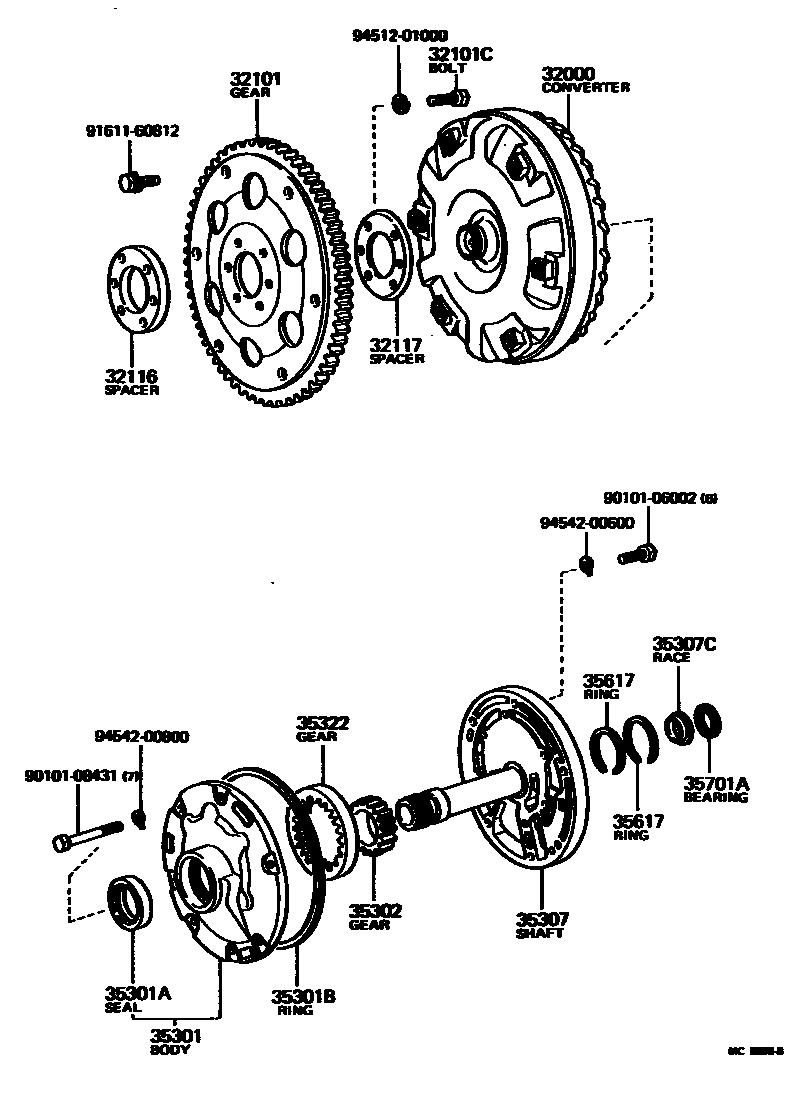

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-22040iMX32..LG..CBR197708-198008

sub32000-30100

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-30040iMX32..LG..CBR197708-198008

sub32101-30060

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90101-10452iMX32..LG197708-197908

main90109-10037iMX3#197908-198008

*10-1.25PX18-12

32116SPACER, DRIVE PLATE, FRONT

main32116-30010iMX32..LG197708-197908

sub32116-30011

main32116-30011iMX3#197908-198008

32117SPACER, DRIVE PLATE, REAR

main32117-30010iMX32..LG197708-197908

main32117-30011iMX3#197908-198008

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30020iMX32..LG..CBR197708-197909

sub35301-30030

sub90301-99010

main35301-30030iMX3#197909-198008

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iMX32..LG..CBR197708-198008

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iMX32..LG..CBR197708-197909

main90301-99010iMX3#197909-198008

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iMX32..LG..CBR197708-198008

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-30010iMX32..LG..CBR197708-198008

sub35370-30012

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iMX32..LG..CBR197708-198008

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iMX32..LG..CBR197708-198008

T=15.286-15.235

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-22020iMX32..LG..CBR197708-198008

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iMX32..LG..CBR197708-198008

9010106002

main90101-06002

9010108431

main90101-08431

9161160812

main91611-60812

9451201000

main94512-01000

9454200600

main94542-00600

9454200800

main94542-00800

20 parts on this diagram · 1 diagram in section
