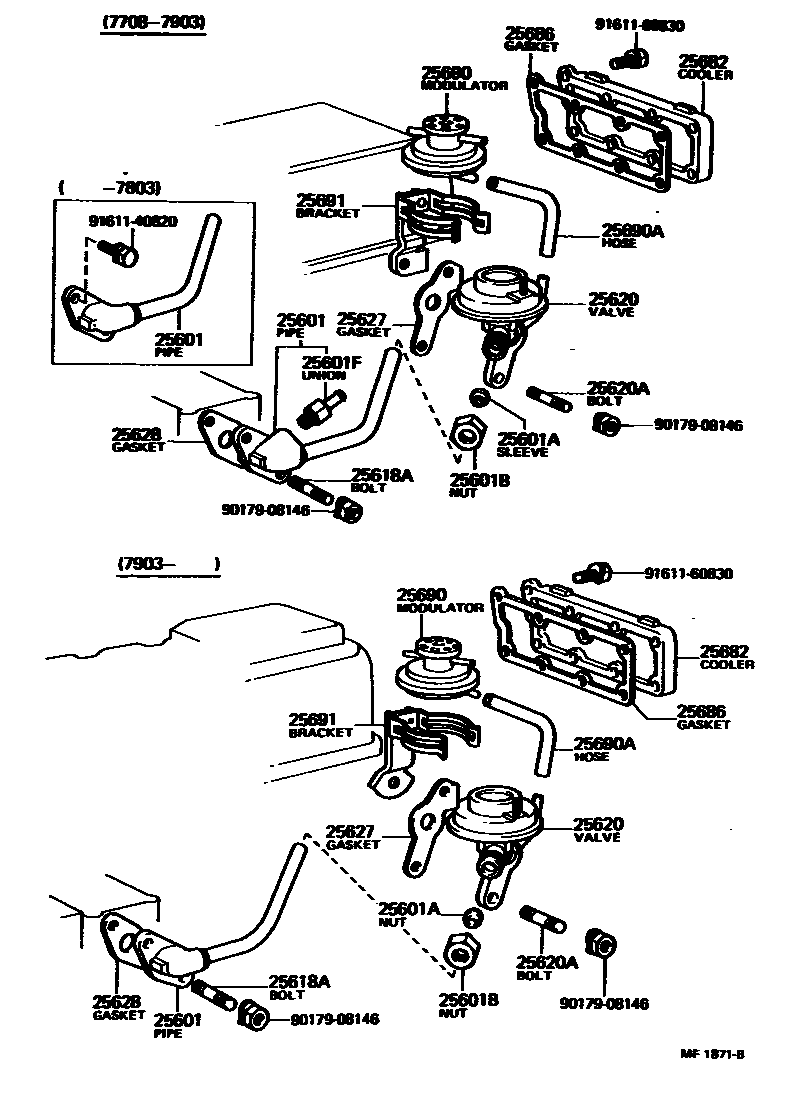

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-41010i4M..MX3#197708-197803

main25601-41020i4M..MX32..LG197803-197903

main25601-41030i4M..MX32..LG197903-197908

main25601-45010i4ME..MX3#197908-198008

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14001i4M..MX32..LG197708-198008

sub90410-14003

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i4M..MX32..LG197708-198008

25601FUNION(FOR EGR PIPE, NO.1)

main90404-52004i4M..MX32..LG197803-197903

main90404-53027i4ME..MX3#197908-198008

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i4M..MX32..LG197803-198008

25620VALVE ASSY, EGR

main25620-45090i4M..MX3#197708-197808

main25620-45120i4M..MX32..LG197808-197908

main25620-45140i4ME..MX3#197908-198008

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i4M..MX32..LG197708-198008

25627GASKET, EGR VALVE

main25627-45011i4M..MX32..LG197708-197908

sub25627-43130

main25627-45020i4ME..MX3#197908-198008

sub25627-43070

25628GASKET, EGR INLET

main25628-45010i4M..MX32..LG197708-197810

sub25628-45011

main25628-45011i4M..MX32..LG197810-197908

sub25628-43020

main25628-45020i4ME..MX3#197908-198008

sub25628-43040

25682COOLER, EGR, NO.2

main25682-45020i4M..MX32..LG197708-198008

25686GASKET, EGR COOLER, NO.2

main25686-45010i4M..MX32..LG197708-198008

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-41020i4M..MX32..LG197808-197908

main25690-45010i4M..MX3#197708-197808

sub25690-41020

main25690-45030i4ME..MX3#197908-198008

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11017i4M..MX32..LG197708-198008

25691BRACKET, EGR VACUUM MODULATOR

main25691-41010i4M..MX32..LG197708-197901

main25691-41030i4M..MX32..LG197901-197908

main25691-45020i4ME..MX3#197908-198008

9017908146

main90179-08146

9161140820

main91611-40820

9161160830

main91611-60830

17 parts on this diagram · 2 diagrams in section
