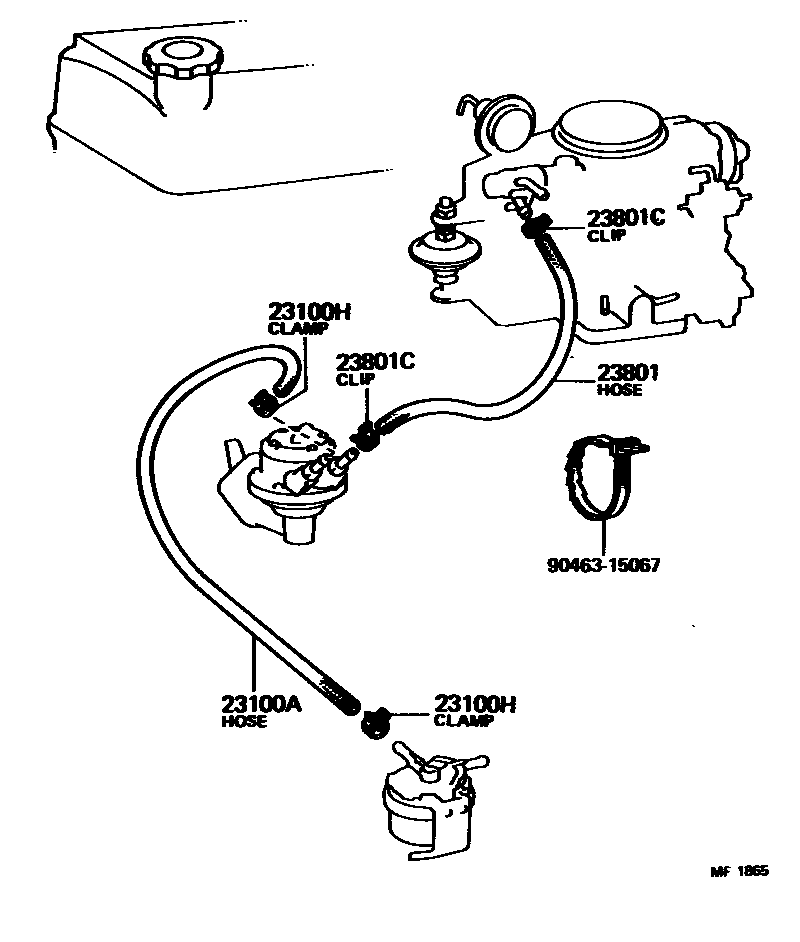

FUEL PIPE & CLAMP

23100AHOSE, FUEL

main95332-08030i4M..MX32..LG197708-197908

L=300

sub95333-08030

23100HCLIP(FOR FUEL HOSE)

main96132-30800i4M..MX32..LG197708-197908

sub96132-51300

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-08034i4M..MX32..LG197708-197904

L=400(*H,L=340)

sub95332-08040

main95332-08040i4M..MX32..LG197904-197908

L=400(*H,L=340)

sub95333-08040

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30800i4M..MX32..LG197708-197908

sub96132-51300

9046315067

main90463-15067

5 parts on this diagram · 1 diagram in section
