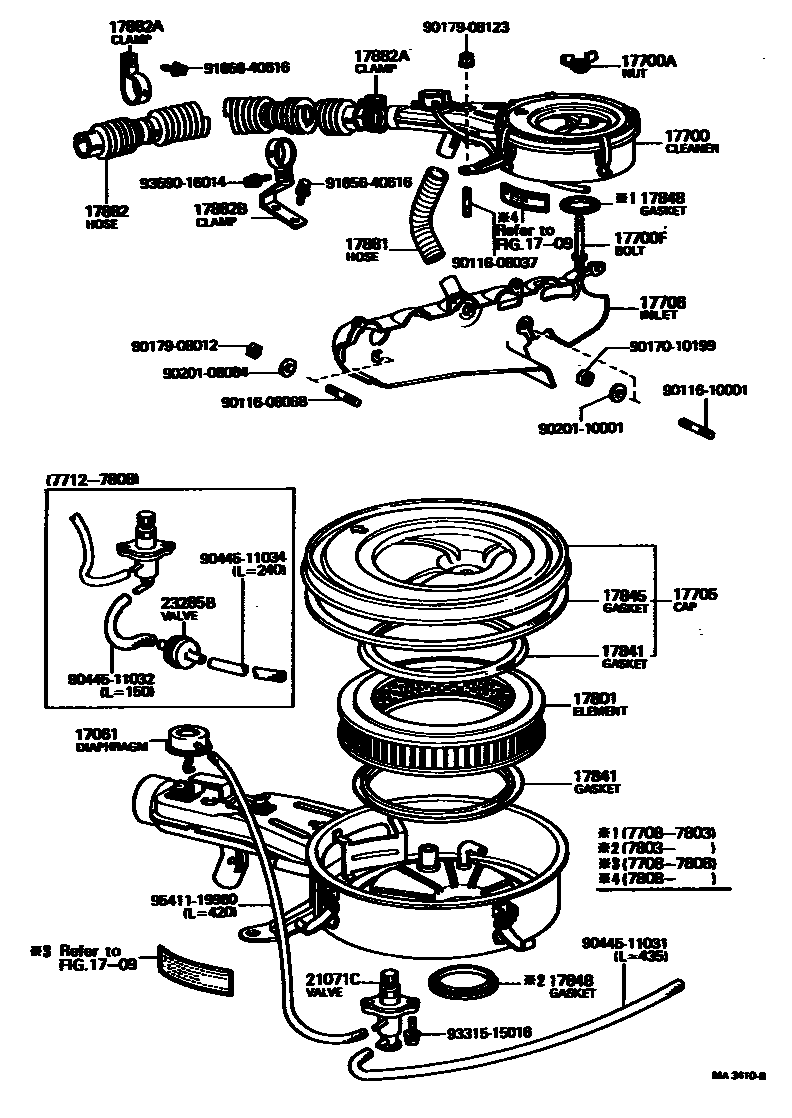

AIR CLEANER

0001 1 0002 1

17061DIAPHRAGM SUB-ASSY

main17061-41010i4M..MX32..LG197808-197908

1709

17700CLEANER ASSY, AIR

main17700-45170i4M..MX3#197708-197803

main17700-45171i4M..MX3#197803-197808

main17700-45220i4M..MX32..LG197808-197903

main17700-45221i4M..MX32..LG197903-197908

main17700-45260i4ME..MX3#197908-198008

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4M..MX32..LG197708-197908

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06222i4M..MX32..LG197708-197908

L=80,S=12&28

17705CAP SUB-ASSY, AIR CLEANER

main17705-41120i4M..MX32..LG197708-197908

main17705-45040i4ME..MX3#197908-198008

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17895-45021i4M..MX32..LG197708-197908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41090i4M..MX32..LG197708-197908

main17801-45020i4ME..MX3#197908-198008

17841GASKET, FILTER ELEMENT

main17841-24020i4ME..MX3#197908-198008

sub17841-68010

main17841-41050i4M..MX32..LG197708-197908

17845GASKET, AIR CLEANER CAP

main17845-41040i4M..MX32..LG197708-197908

sub17845-61011

main17845-41070i4ME..MX3#197908-198008

sub17845-61011

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-72003i4M..MX32..LG197803-197908

main90430-72114i4M..MX3#197708-197803

17881HOSE, AIR CLEANER, NO.1

main17881-26010i4M..MX32..LG197708-197908

sub17881-34040

main17881-41051i4ME..MX3#197908-198008

17882HOSE, AIR CLEANER, NO.2

main17882-41050i4M..MX32..LG197708-197908

main17882-41070i4ME..MX3#197908-198008

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90461-12070i4M..MX32..LG197708-197908

FOR BODY SET

main96111-10670i4M..MX32..LG197708-197908

FOR AIR CLEANER SET

main96111-10710i4ME..MX3#197908-198008

ID=71

main96111-10800i4ME..MX3#197908-198008

ID=80

17882BCLAMP(FOR COOL AIR INTAKE)

main90461-12071i4M..MX32..LG197708-197908

sub90461-12151

21071CVALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER)

main17728-41010i4M..MX3#197708-197808

main17728-41020i4M..MX32..LG197808-197908

sub17728-41030

23285BVALVE, CHECK, NO.1

main90917-10053i4M..MX3#197712-197808

9011608037

main90116-08037

9011608068

main90116-08068

9011610001

main90116-10001

9017010199

main90170-10199

9017908012

main90179-08012

9017908123

main90179-08123

9020108084

main90201-08084

9020110001

main90201-10001

9044511031

main90445-11031

9044511032

main90445-11032

9044511034

main90445-11034

9165640616

main91656-40616

9331515016

main93315-15016

9359016014

main93590-16014

9541119960

main95411-19960

32 parts on this diagram · 2 diagrams in section
