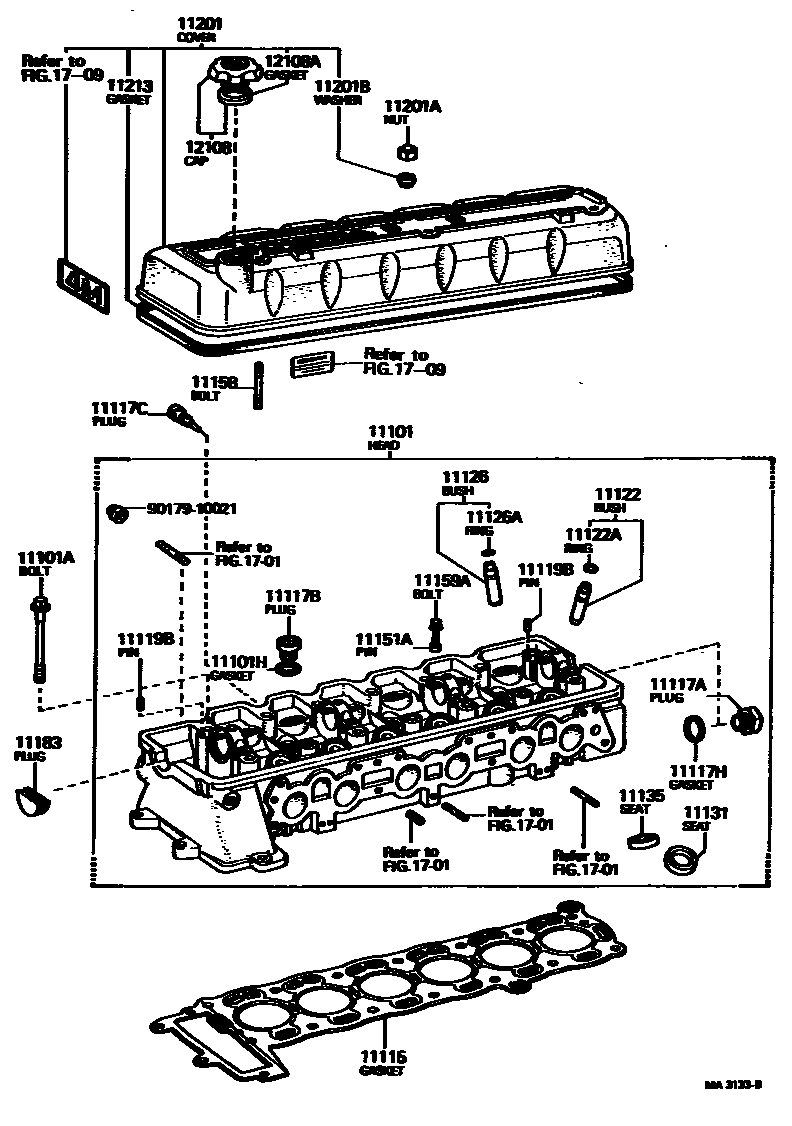

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-49208
11101ABOLT(FOR CYLINDER HEAD SET)
12-1.25PX166.5-21
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11119BPIN, STRAIGHT, NO.2
L=18,OD=7.9,L=18,OD=7.9
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
O/S 0.03,O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11,L=8,OD=11
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=51,L=51,S=14&8.5
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
sub91611-B0825
11183PLUG, SEMICIRCULAR
sub11183-45020
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
CENTER,REAR
FRONT
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
1701
1709
9017910021
main90179-10021
28 parts on this diagram · 2 diagrams in section
