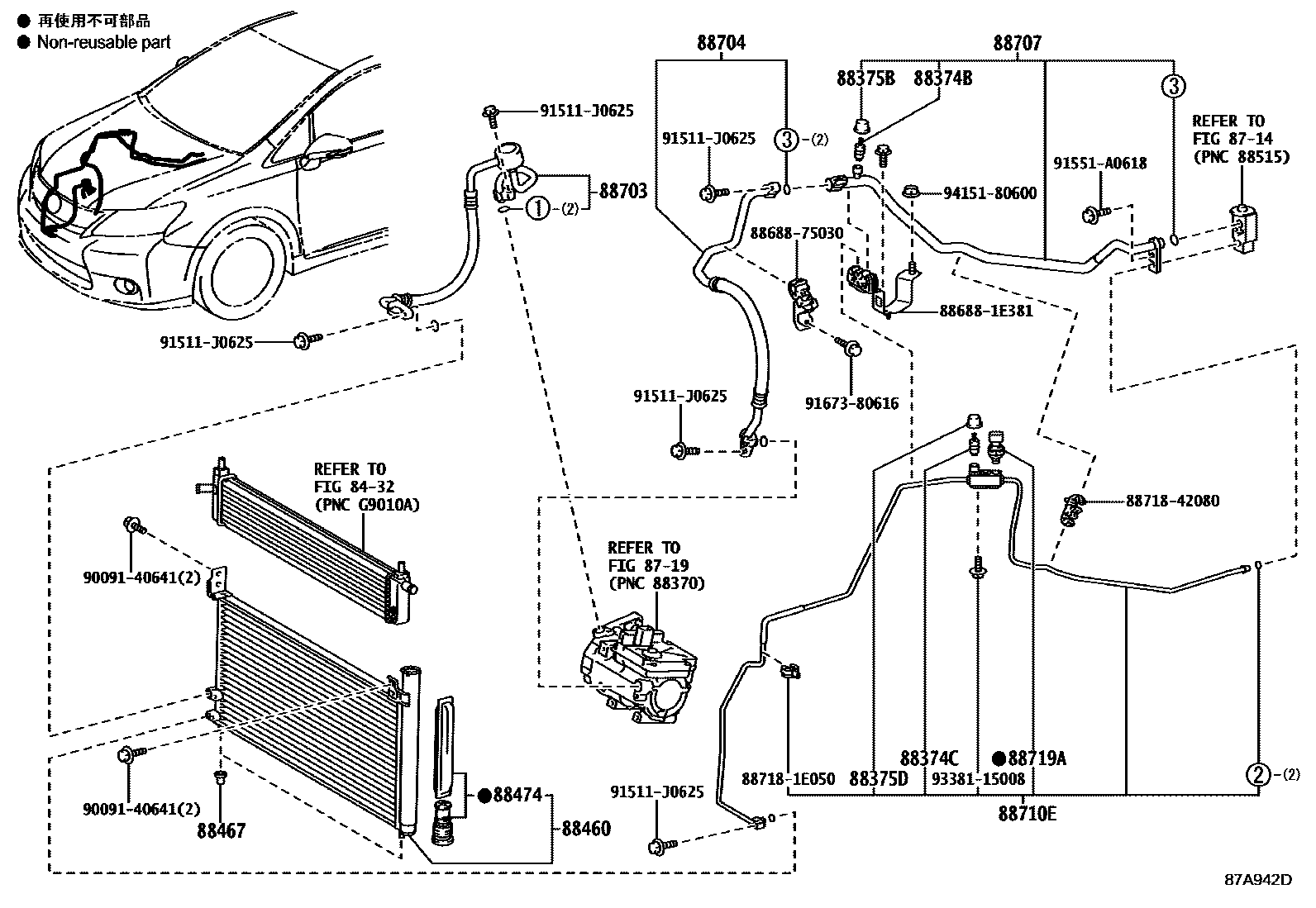

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iANF10200907-201201

88374CVALVE, SERVICE, NO.2

main88374-30010iANF10200907-201201

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iANF10200907-201201

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iANF10200907-201201

88460CONDENSER ASSY, COOLER

main88460-75010iANF10200907-201201

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iANF10200907-201201

88474DRYER, COOLER

main88474-47020iANF10200907-201201

88703HOSE SUB-ASSY, DISCHARGE

main88703-75010iANF10200907-201201

88704HOSE SUB-ASSY, SUCTION

main88704-75010iANF10200907-201201

sub88704-75020

88707PIPE SUB-ASSY, SUCTION

main88707-75010iANF10200907-201201

sub88707-75020

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-75010iANF10200907-201110

main88710-75020iANF10201110-201201

sub88710-75030

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iANF10200907-201201

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

8868875030BRACKET, COOLER DIAPHRAGM

main88688-75030

887181E050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E050

8871842080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42080

9009140641

main90091-40641

91511J0625

main91511-J0625

91551A0618

main91551-A0618

9167380616

main91673-80616

9338115008

main93381-15008

9415180600

main94151-80600

25 parts on this diagram · 2 diagrams in section
