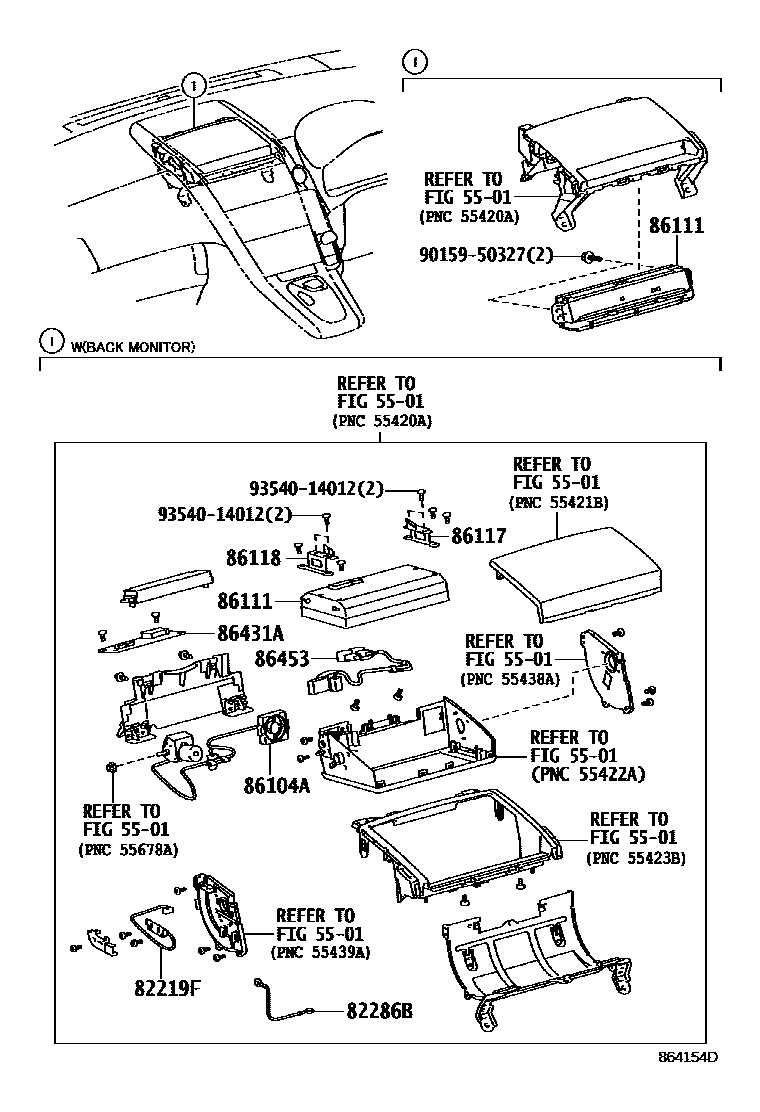

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5501

82219FWIRE, SENSOR

main82219-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

main82219-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

82286BWIRE, EARTH, NO.2

main82286-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

main82286-75010iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

86104ACONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

sub86104-75011

main86104-75010iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

sub86104-75011

86111MULTI-DISPLAY

main86111-75020iANF10200907-201201

PANASONIC,BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

main86111-75020iANF10..W200907-201201

PANASONIC,BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86111-75050iANF10200907-201201

PANASONIC

main86111-75050iANF10200907-201201

PANASONIC,EMV & NAVIGATION SYSTEM-HDD FOR EXPORT

main86111-75050iANF10200907-201201

PANASONIC,EMV & NAVIGATION SYSTEM-DVD FOR EXPORT

main86111-75050iANF10200907-201201

PANASONIC,BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86111-75050iANF10200907-201201

PANASONIC,BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-75010iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86117-75010iANF10..W200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86118-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

86431ABOARD, DISPLAY MODULE

main86431-75090iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

sub86431-75130

main86431-75090iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

sub86431-75130

86453WIRE, MULTI-MEDIA MODULE

main86453-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86453-75010iANF10200907-201201

BACK MONITOR(REAR TELEVISION CAMERA)-WITH(*WVFM)

9015950327

main90159-50327

9354014012

main93540-14012

11 parts on this diagram · 2 diagrams in section
