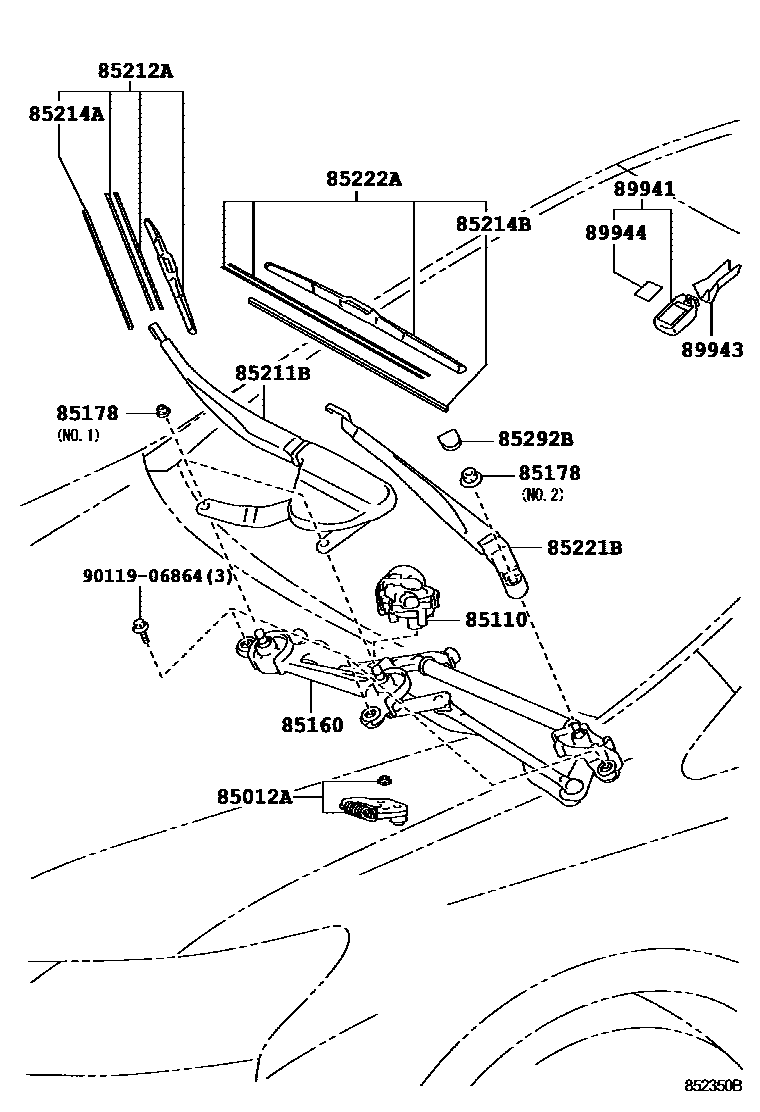

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iANF10200907-201201

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50140iANF10200907-201201

sub85110-47240

85160LINK ASSY, WINDSHIELD WIPER

main85150-75020iANF10200907-201201

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iANF10200907-201201

NO.1

main90179-10223iANF10200907-201201

NO.2

85211BARM, FRONT WIPER, RH

main85211-75020iANF10200907-201201

85212ABLADE, FR WIPER, RH

main85212-75020iANF10200907-201201

85214ARUBBER, WIPER, RH

main85214-33180iANF10200907-201201

85214BRUBBER, WIPER, LH

main85214-68020iANF10200907-201201

sub85214-52110

85221BARM, FRONT WIPER, LH

main85221-75020iANF10200907-201201

85222ABLADE, FR WIPER, LH

main85222-75010iANF10200907-201010

sub85222-75011

main85222-75011iANF10201011-201201

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iANF10200907-201201

89941SENSOR, RAIN

main89941-42010iANF10..W200907-201201

89943COVER, RAIN SENSOR

main89943-47010iANF10..W200907-201201

89944TAPE, RAIN SENSOR

main89944-42010iANF10..W200907-201201

9011906864

main90119-06864

15 parts on this diagram · 1 diagram in section
