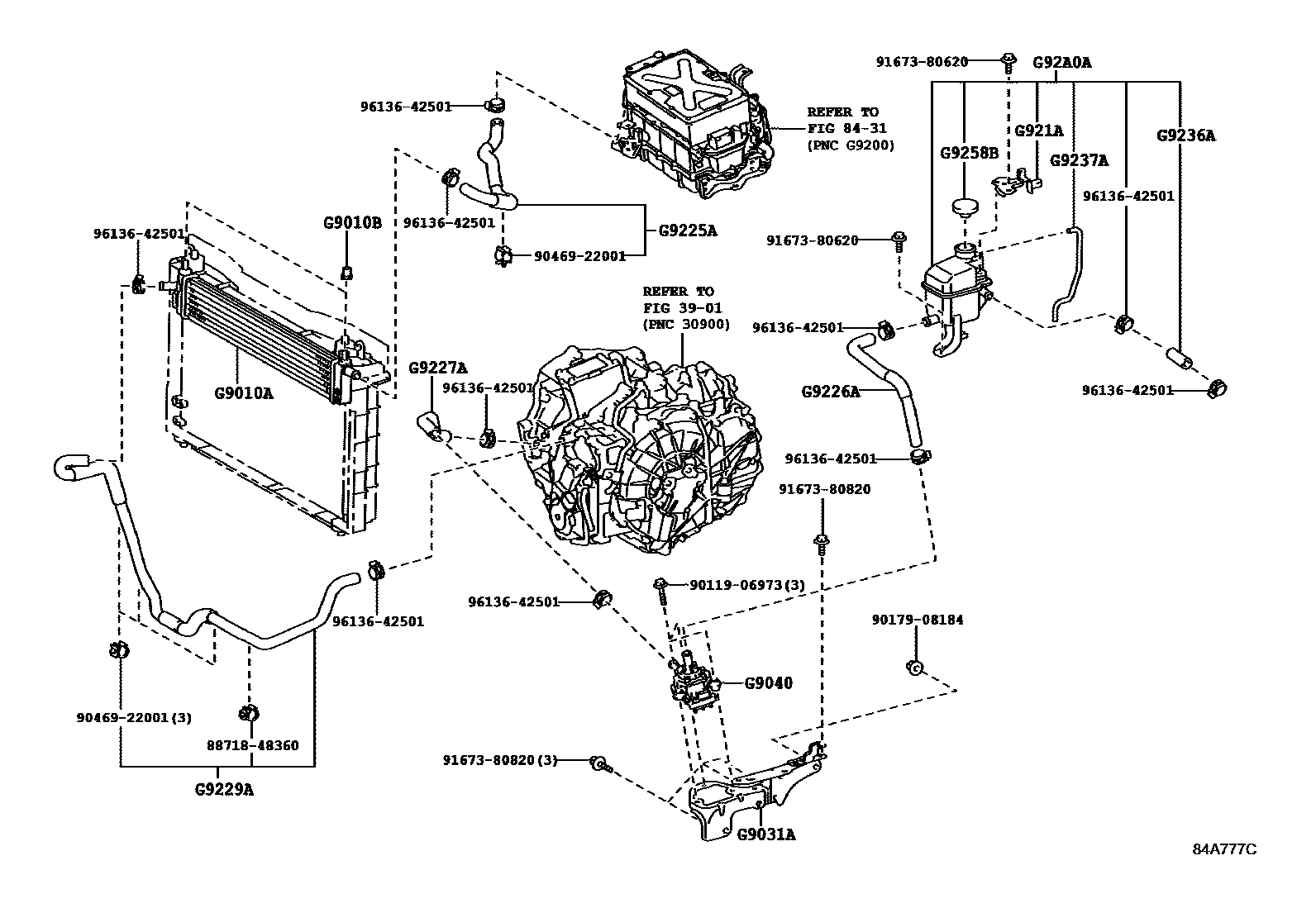

INVERTER COOLING

3901

8431

G9010ARADIATOR ASSY

mainG901075010iANF10200907-201006

subG9010-75011

mainG901075011iANF10201006-201201

G9010BCUSHION, INVERTER RADIATOR

main16716-37010iANF10200907-201201

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903175010iANF10200907-201201

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033010iANF10200907-201201

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG921A75011iANF10200907-201201

G9225AHOSE, INVERTER COOLING, NO.7

mainG922575010iANF10200907-201201

G9226AHOSE, INVERTER COOLING, NO.2

mainG922675010iANF10200907-201201

G9227AHOSE, INVERTER COOLING, NO.3

mainG922775010iANF10200907-201201

G9229AHOSE, INVERTER COOLING, NO.5

mainG922975010iANF10200907-201201

G9236AHOSE, INVERTER COOLING, NO.6

mainG923675010iANF10200907-201201

G9237AHOSE, INVERTER DRAIN

mainG923775010iANF10200907-201201

G9258BCAP, INVERTER RESERVE TANK

mainG925828010iANF10200907-200908

subG9258-28011

mainG925828011iANF10200909-201201

subG9258-28012

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A075011iANF10200907-201201

subG92A0-75012

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9011906973

main90119-06973

9017908184

main90179-08184

9046922001

main90469-22001

9167380620

main91673-80620

9167380820

main91673-80820

9613642501

main96136-42501

22 parts on this diagram · 1 diagram in section
