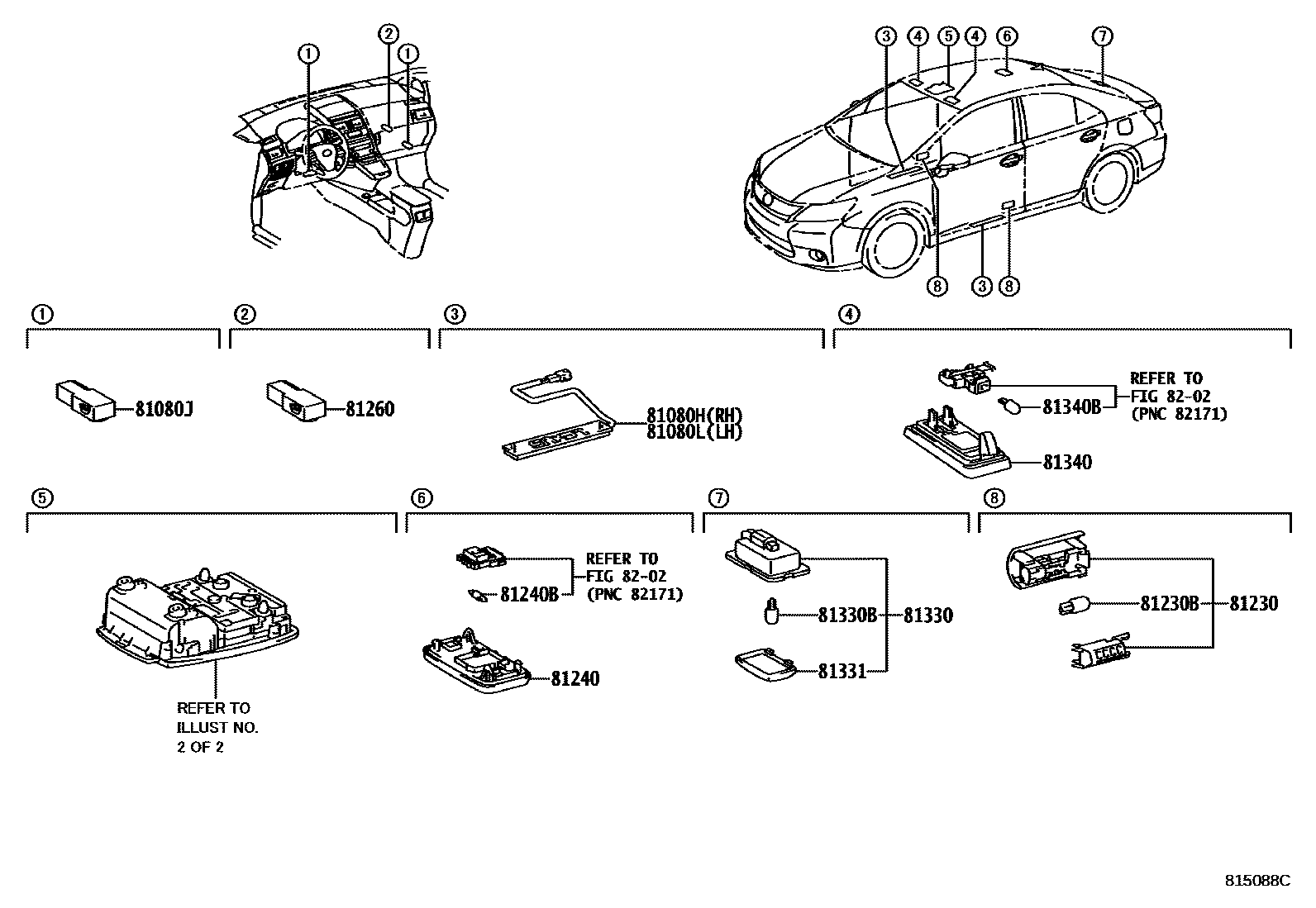

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-75020iANF10..V200907-201201

TOURING PACKAGE

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-22040iANF10200907-201201

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81090-75020iANF10..V200907-201201

TOURING PACKAGE

81230LAMP ASSY, COURTESY

main81230-47010iANF10200907-201201

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010iANF10200907-201201

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60070-A1iANF10200907-201201

IVORY,TRIM05

main81240-60070-A2iANF10200907-201201

WATER WHITE,TRIM06,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iANF10200907-201201

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-22040iANF10200907-201201

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50021iANF10200907-201201

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iANF10200907-201201

12V 3.8W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010iANF10200907-201201

81340LAMP ASSY, VANITY

main81340-30100-A4iANF10200907-201201

IVORY,TRIM05

main81340-30100-A6iANF10200907-201201

WATER WHITE,TRIM06,2#

81340BBULB (FOR VANITY LAMP)

main90981-11062iANF10200907-201201

12V 8W

8202

14 parts on this diagram · 2 diagrams in section
