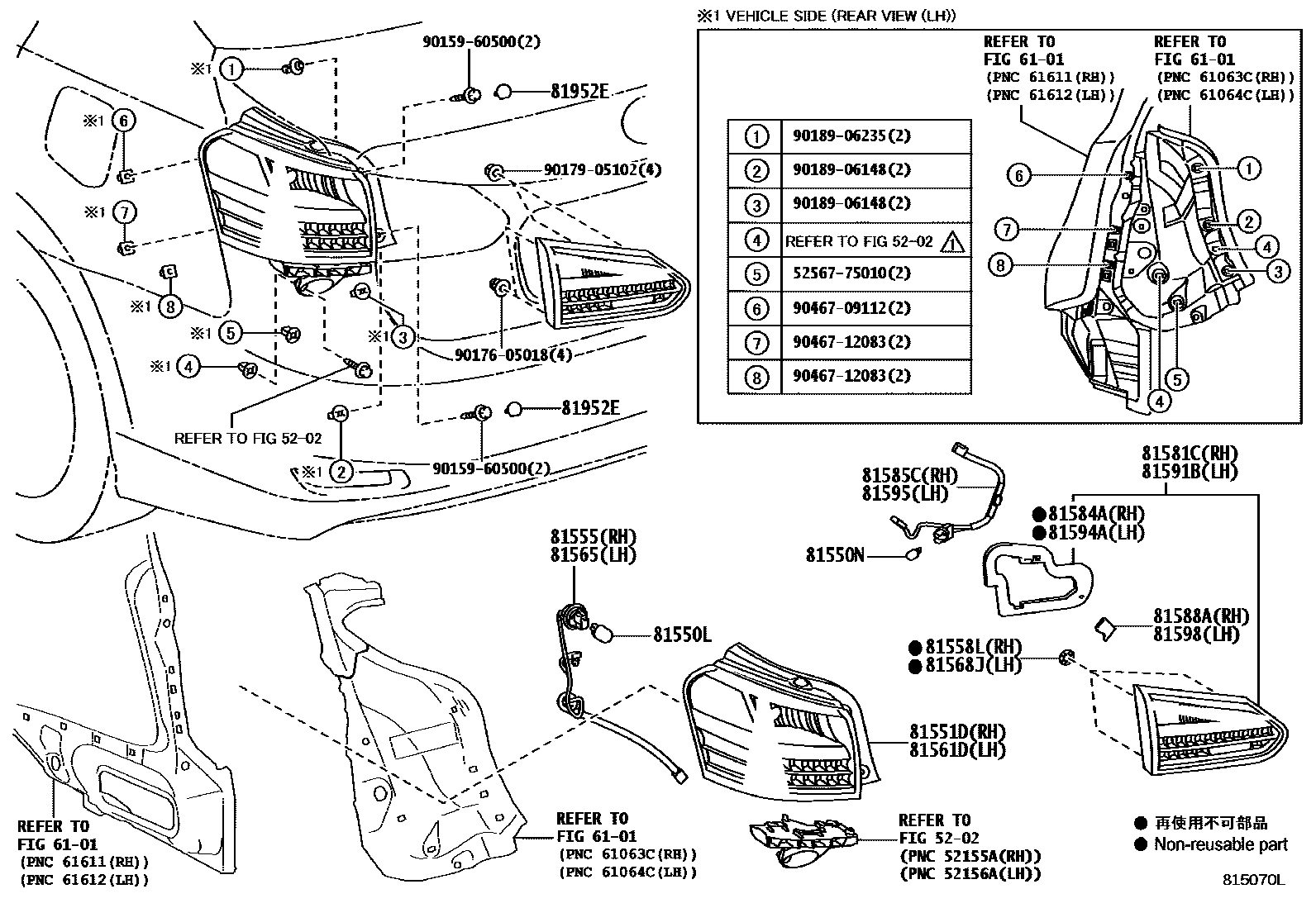

REAR COMBINATION LAMP

5202

6101

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iANF10200907-201201

81550NBULB, BACK UP LAMP

main90981-11059iANF10200907-201201

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-75030iANF10200907-201201

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-75040iANF10200907-201201

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iANF10200907-201201

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-75030iANF10200907-201201

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-75040iANF10200907-201201

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iANF10200907-201201

81581CLENS AND BODY, REAR LAMP, RH

main81581-75030iANF10200907-201201

81584AGASKET, REAR LAMP RH

main81584-75010iANF10200907-201201

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-75030iANF10200907-201201

81588APROTECTOR, REAR LAMP, RH

main81588-75030iANF10200907-201201

81591BLENS AND BODY, REAR LAMP, LH

main81591-75030iANF10200907-201201

81594AGASKET, REAR LAMP LH

main81594-75010iANF10200907-201201

81595SOCKET & WIRE, REAR LAMP, LH

main81585-75030iANF10200907-201201

81598PROTECTOR, REAR LAMP, LH

main81588-75030iANF10200907-201201

81952ECOVER, REAR LAMP

main81952-22010iANF10200907-201201

5256775010BRACKET, REAR BUMPER EXTENSION, RH

main52567-75010

9015960500

main90159-60500

9017605018

main90176-05018

9017905102

main90179-05102

9018906148

main90189-06148

9018906235

main90189-06235

9046709112

main90467-09112

9046712083

main90467-12083

27 parts on this diagram · 1 diagram in section
