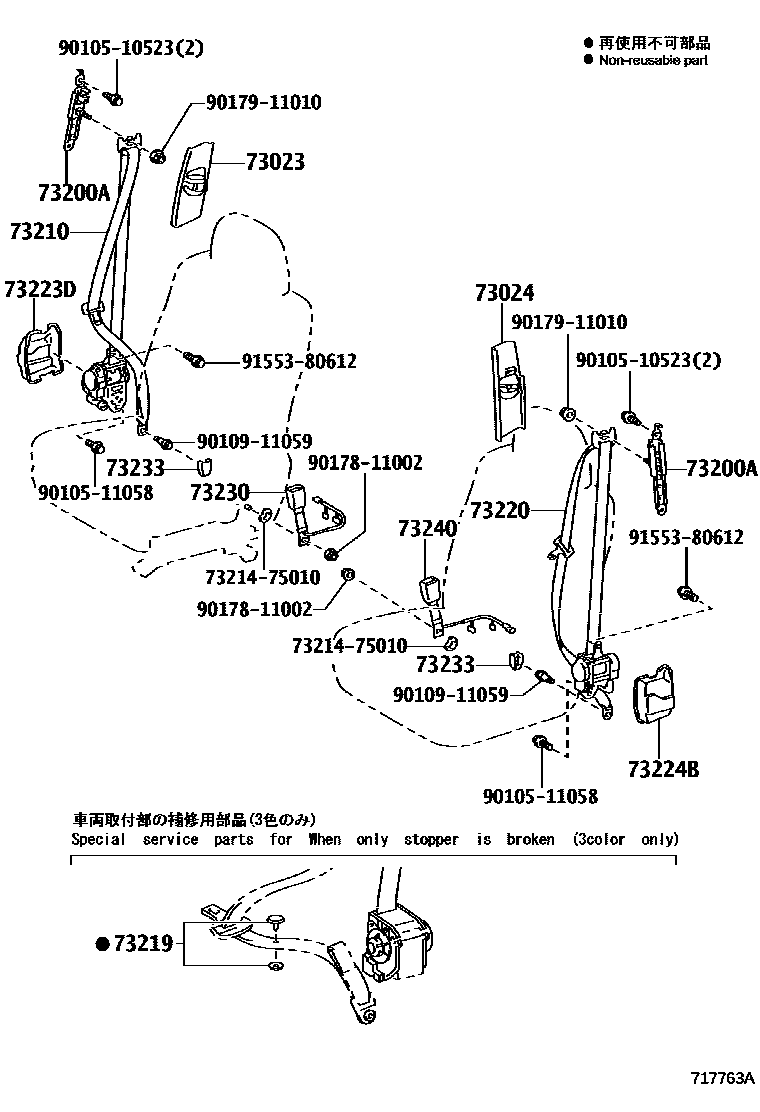

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM05
WATER WHITE,TRIM06,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM05
WATER WHITE,TRIM06,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM05
WATER WHITE,TRIM06
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM05
WATER WHITE,TRIM06
BLACK,TRIM2#
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM06,2#
DK. BROWN,TRIM05,06
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM06,2#
DK. BROWN,TRIM05
BLACK,TRIM06,2#
DK. BROWN,TRIM05
7321475010PLATE, FRONT SEAT BELT ANCHOR
9010510523
9010511058
9010911059
9017811002
9017911010
9155380612
18 parts on this diagram · 2 diagrams in section
