FRONT SEAT & SEAT TRACK

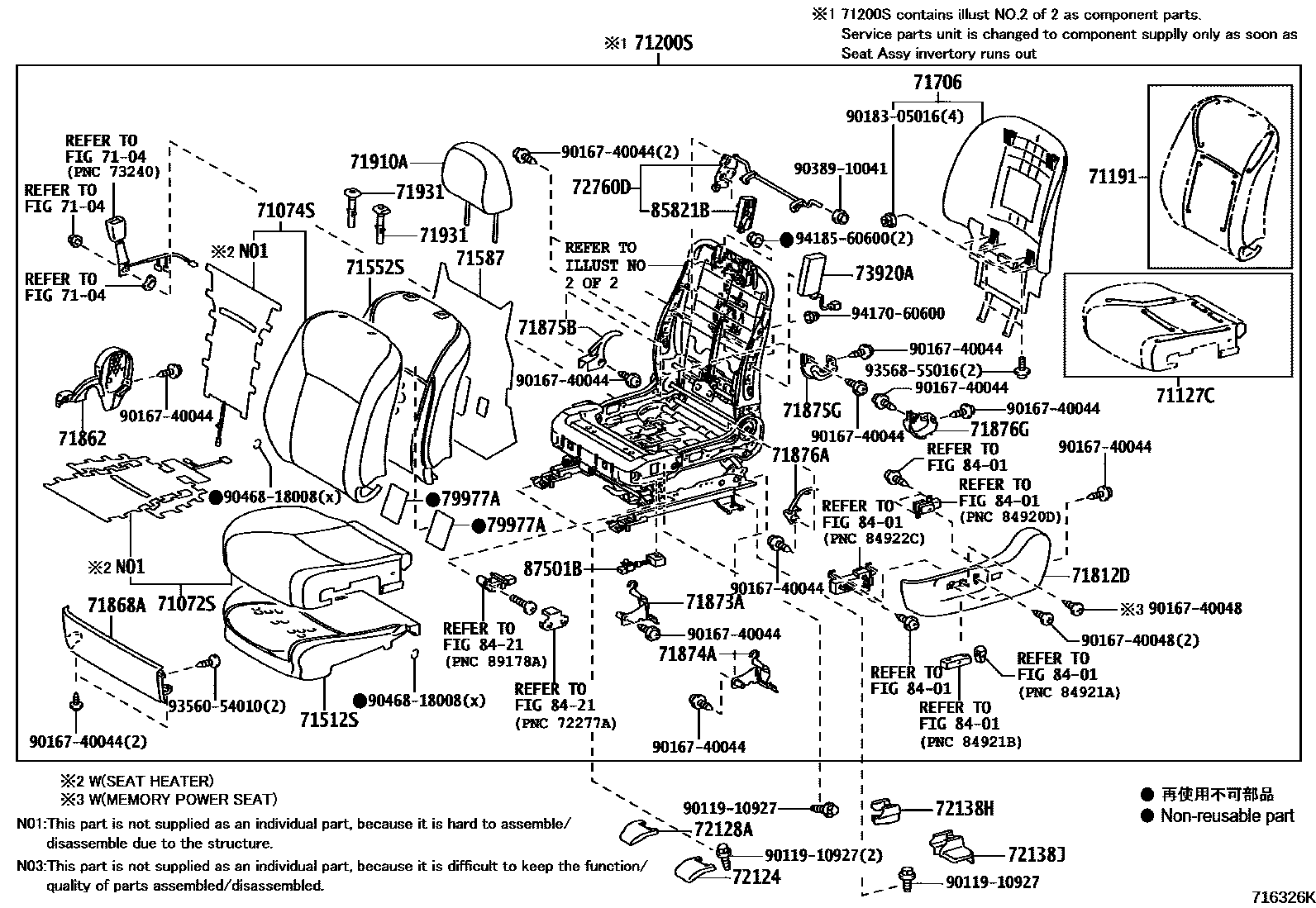

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-75050-A5i200907-201110
IVORY,TRIM05
sub71072-75210
main71072-75050-A6i200907-201110
WATER WHITE,TRIM06
sub71072-75210
main71072-75050-C2i200907-201110
BLACK,TRIM2#
sub71072-75210
main71072-75100-A0i200907-201007
IVORY,TRIM05
sub71072-75160
main71072-75100-A2i200907-201007
WATER WHITE,TRIM06
sub71072-75160
main71072-75100-C0i200907-201007
BLACK,TRIM2#
sub71072-75160
main71072-75101-A0i201008-201110
IVORY,TRIM05
sub71072-75240
main71072-75101-A2i201008-201110
WATER WHITE,TRIM06
sub71072-75240
main71072-75101-C0i201008-201110
BLACK,TRIM2#
sub71072-75240
main71072-75210-A0i201110-201201
WATER WHITE,TRIM06
main71072-75210-A1i201110-201201
IVORY,TRIM05
main71072-75210-C0i201110-201201
BLACK,TRIM2#
main71072-75240-A0i201110-201201
IVORY,TRIM05
sub71072-75241
main71072-75240-A1i201110-201201
WATER WHITE,TRIM06
sub71072-75241
main71072-75240-C0i201110-201201
BLACK,TRIM2#
sub71072-75241
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-75040-A5i200907-201201
IVORY,TRIM05
main71074-75040-A6i200907-201201
WATER WHITE,TRIM06
main71074-75040-C3i200907-201201
BLACK,TRIM2#
main71074-75050-A2i200907-201007
IVORY,TRIM05
sub71074-75150
main71074-75050-A4i200907-201007
WATER WHITE,TRIM06
sub71074-75150
main71074-75050-C1i200907-201007
BLACK,TRIM2#
sub71074-75150
main71074-75051-A2i201008-201201
IVORY,TRIM05
main71074-75051-A4i201008-201201
WATER WHITE,TRIM06
main71074-75051-C1i201008-201201
BLACK,TRIM2#
71127CWIRE, FRONT SEAT CUSHION COVER SET
main71127-75010i201110-201201
71191WIRE, FRONT SEATBACK COVER
main71191-75010i201110-201201
71200SSEAT ASSY, FRONT LH
main71200-75150-A5i200907-201110
IVORY,TRIM05
sub71200-75400
main71200-75150-A6i200907-201110
WATER WHITE,TRIM06
sub71200-75400
main71200-75150-C2i200907-201110
BLACK,TRIM2#
sub71200-75400
main71200-75180-A3i200907-201007
IVORY,TRIM05
sub71200-75320
main71200-75180-A5i200907-201007
WATER WHITE,TRIM06
sub71200-75320
main71200-75180-C1i200907-201007
BLACK,TRIM2#
sub71200-75320
main71200-75181-A0i201008-201110
IVORY,TRIM05
sub71200-75410
main71200-75181-A1i201008-201110
WATER WHITE,TRIM06
sub71200-75410
main71200-75181-C0i201008-201110
BLACK,TRIM2#
sub71200-75410
main71200-75400-A2i201110-201201
IVORY,TRIM05
main71200-75400-A4i201110-201201
WATER WHITE,TRIM06
main71200-75400-C1i201110-201201
BLACK,TRIM2#
main71200-75410-A2i201110-201201
IVORY,TRIM05
main71200-75410-A4i201110-201201
WATER WHITE,TRIM06
main71200-75410-C1i201110-201201
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-75070i200907-201201
main71512-75080i200907-201201
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-75010i200907-201201
main71552-75040i200907-201201
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-75010i200907-201101
sub71587-75020
main71587-75020i201101-201201
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-75040-C1i200907-201201
BLACK,TRIM06,2#
main71705-75040-E1i200907-201201
DK. BROWN,TRIM05
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-75080-C0i200907-201201
BLACK,TRIM06,2#
main71812-75080-E0i200907-201201
DK. BROWN,TRIM05,06
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-75020-C0i200907-201201
BLACK,TRIM06,2#
main71862-75020-E0i200907-201201
DK. BROWN,TRIM05,06
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-75020-C0i200907-201201
BLACK,TRIM06,2#
main71868-75020-E0i200907-201201
DK. BROWN,TRIM05,06
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-48180i200907-201201
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-12040i200907-201201
sub71873-75020
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-48170i200907-201201
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-12040i200907-201201
sub71874-75020
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71876-60170-C0i200907-201201
BLACK,TRIM06,2#
sub71876-60170
main71876-60170-E5i200907-201201
DK. BROWN,TRIM05,06
sub71876-60170
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-75020i200907-201201
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-C0i200907-201201
BLACK,TRIM06,2#
sub71875-60150
main71875-60150-E6i200907-201201
DK. BROWN,TRIM05,06
sub71875-60150
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-60150-C0i200907-201201
BLACK,TRIM06,2#
sub71876-60150
main71876-60150-E5i200907-201201
DK. BROWN,TRIM05,06
sub71876-60150
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-75010i200907-201201
71910AHEADREST ASSY, FRONT SEAT
main71910-75050-02i201110-201201
WATER WHITE,TRIM06
sub71910-75050
sub71910-75061
main71910-75050-A5i200907-201110
IVORY,TRIM05
sub71910-75050
sub71910-75061
main71910-75050-A6i200907-201110
WATER WHITE,TRIM06,25
sub71910-75050
sub71910-75061
main71910-75050-A7i201110-201201
WATER WHITE,TRIM25
sub71910-75050
sub71910-75061
main71910-75050-A9i201110-201201
IVORY,TRIM05
sub71910-75050
sub71910-75061
main71910-75050-C3i200907-201110
BLACK,TRIM25
sub71910-75050
sub71910-75061
main71910-75050-C5i201110-201201
BLACK,TRIM25
sub71910-75050
sub71910-75061
main71910-75060-A2i200907-201007
IVORY,TRIM05
sub71910-75110
main71910-75060-A4i200907-201007
WATER WHITE,TRIM06
sub71910-75110
main71910-75060-C1i200907-201007
BLACK,TRIM2#
sub71910-75110
main71910-75061-A2i201008-201110
IVORY,TRIM05
sub71910-75061
main71910-75061-A4i201008-201110
WATER WHITE,TRIM06
sub71910-75061
main71910-75061-A5i201110-201201
IVORY,TRIM05
sub71910-75061
main71910-75061-A7i201110-201201
WATER WHITE,TRIM06
sub71910-75061
main71910-75061-C1i201008-201110
BLACK,TRIM2#
sub71910-75061
main71910-75061-C2i201110-201201
BLACK,TRIM2#
sub71910-75061
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-A4i200907-201201
W(LOCK),IVORY,TRIM05
sub71930-44020
sub71930-02370
main71930-44020-A5i200907-201201
W(LOCK),WATER WHITE,TRIM06
sub71930-44020
sub71930-02370
main71930-44020-A5i200907-201201
W(LOCK),WATER WHITE,TRIM06,25
sub71930-44020
sub71930-02370
main71930-44020-C0i200907-201201
W(LOCK),BLACK,TRIM25
sub71930-44020
sub71930-02370
main71930-44020-C0i200907-201201
W(LOCK),BLACK,TRIM2#
sub71930-44020
sub71930-02370
main71931-47010-A8i200907-201201
W/O(LOCK),IVORY,TRIM05
sub71931-47010
sub71931-42020
main71931-47010-A9i200907-201201
W/O(LOCK),WATER WHITE,TRIM06,25
sub71931-47010
sub71931-42020
main71931-47010-A9i200907-201201
W/O(LOCK),WATER WHITE,TRIM06
sub71931-47010
sub71931-42020
main71931-47010-C0i200907-201201
W/O(LOCK),BLACK,TRIM25
sub71931-47010
sub71931-42020
main71931-47010-C0i200907-201201
W/O(LOCK),BLACK,TRIM2#
sub71931-47010
sub71931-42020
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-75020i200907-201201
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-75020i200907-201201
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-75020i200907-201201
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-75020i200907-201201
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-53030i200907-201201
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-75020i200907-201201
79977AFELT, SEATBACK
main79977-75010i200907-201005
8401
8421
85821BMOTOR ASSY, POWER SEAT
main85820-60170i200907-201201
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-60010i200907-201201
TOURING PACKAGE&SEAT HEATER-WITH
sub87501-60060
main87501-60010i200907-201201
SEAT HEATER-WITH
sub87501-60060
9011910927
main90119-10927
9016740044
main90167-40044
9016740048
main90167-40048
9018305016
main90183-05016
9038910041
main90389-10041
9046818008
main90468-18008
9356054010
main93560-54010
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

45 parts on this diagram · 4 diagrams in section
