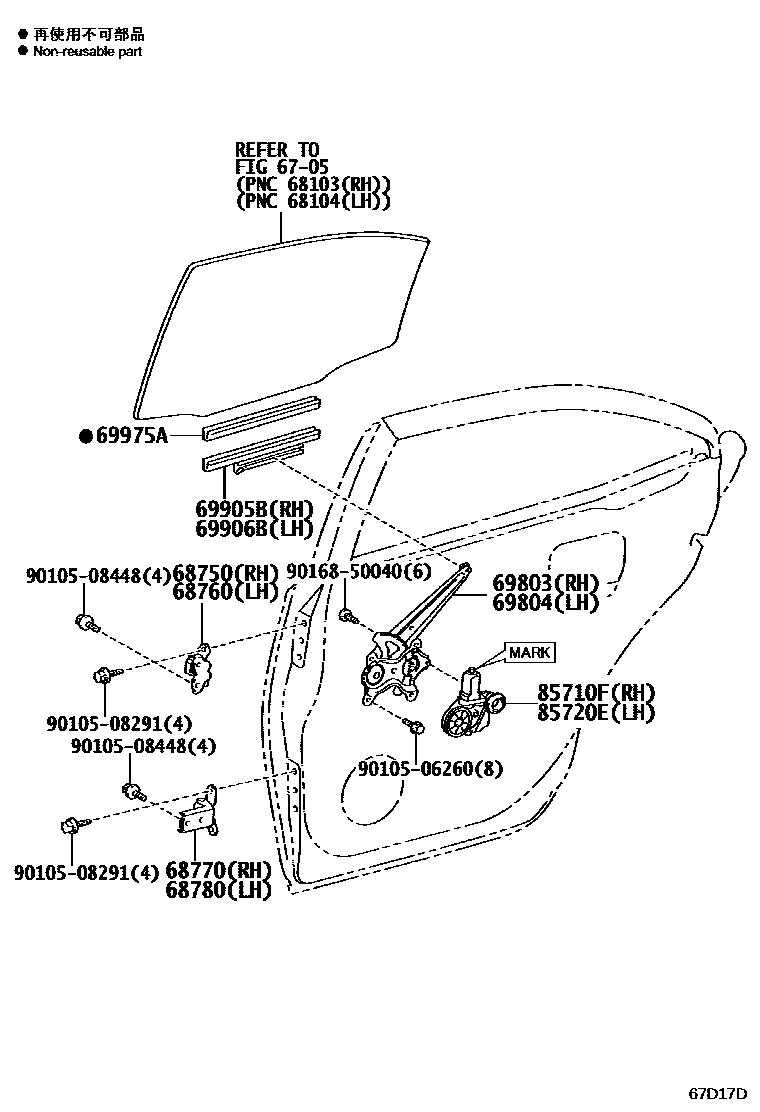

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iANF10200907-201201

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iANF10200907-201201

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iANF10200907-201201

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iANF10200907-201201

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iANF10200907-201201

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iANF10200907-201201

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-53030iANF10200907-201201

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-53030iANF10200907-201201

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iANF10200907-201201

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-75040iANF10200907-201011

MARK=U3

main85720-75080iANF10201011-201201

MARK=E3

sub85720-30431

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-75040iANF10200907-201011

MARK=N1

main85710-75080iANF10201011-201201

MARK=E4

sub85710-30491

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
