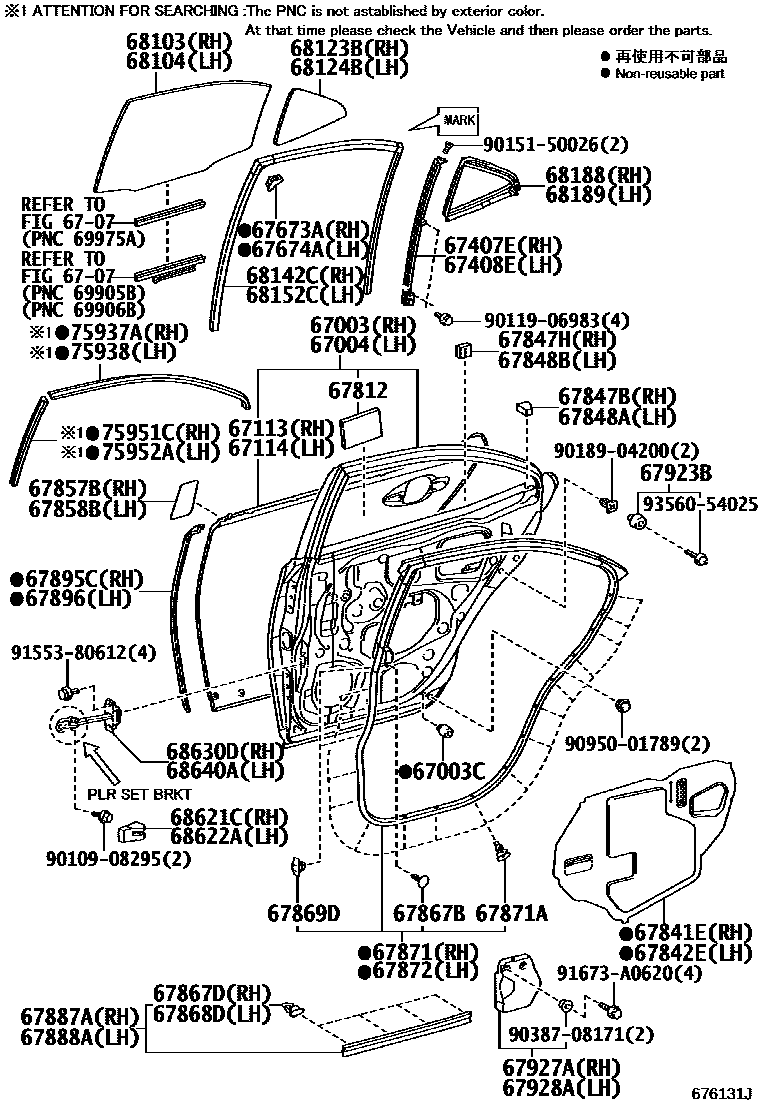

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67812PAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67847HSEAL, REAR DOOR VENT, RH NO.2
67848ASEAL, REAR DOOR VENT, LH NO.1
67848BSEAL, REAR DOOR VENT, LH NO.2
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
67927ACUSHION, REAR DOOR STIFFENER, RH
67928ACUSHION, REAR DOOR STIFFENER, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.5,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.5,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.5,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.5,GREEN
68142CRUN, REAR DOOR GLASS, RH
MARK=58-RR
68152CRUN, REAR DOOR GLASS, LH
MARK=58-RL
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
68640ACHECK ASSY, REAR DOOR, LH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9018904200
main90189-04200
9038708171
main90387-08171
9095001789
main90950-01789
9155380612
main91553-80612
91673A0620
main91673-A0620
9356054025
main93560-54025
58 parts on this diagram · 2 diagrams in section
