MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM06,2#
DK.BROWN,TRIM05,06
BLACK,TRIM06,2#
DK.BROWN,TRIM05
58511KMAT, FLOOR, NO.1
sub58511-75011
58512JMAT, FLOOR, NO.2
sub58512-75011
58513EMAT, FLOOR, REAR LH
sub58513-75011
58514GMAT, FLOOR, REAR RH
sub58514-75011
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK
9046710208
main90467-10208
9046711122
main90467-11122

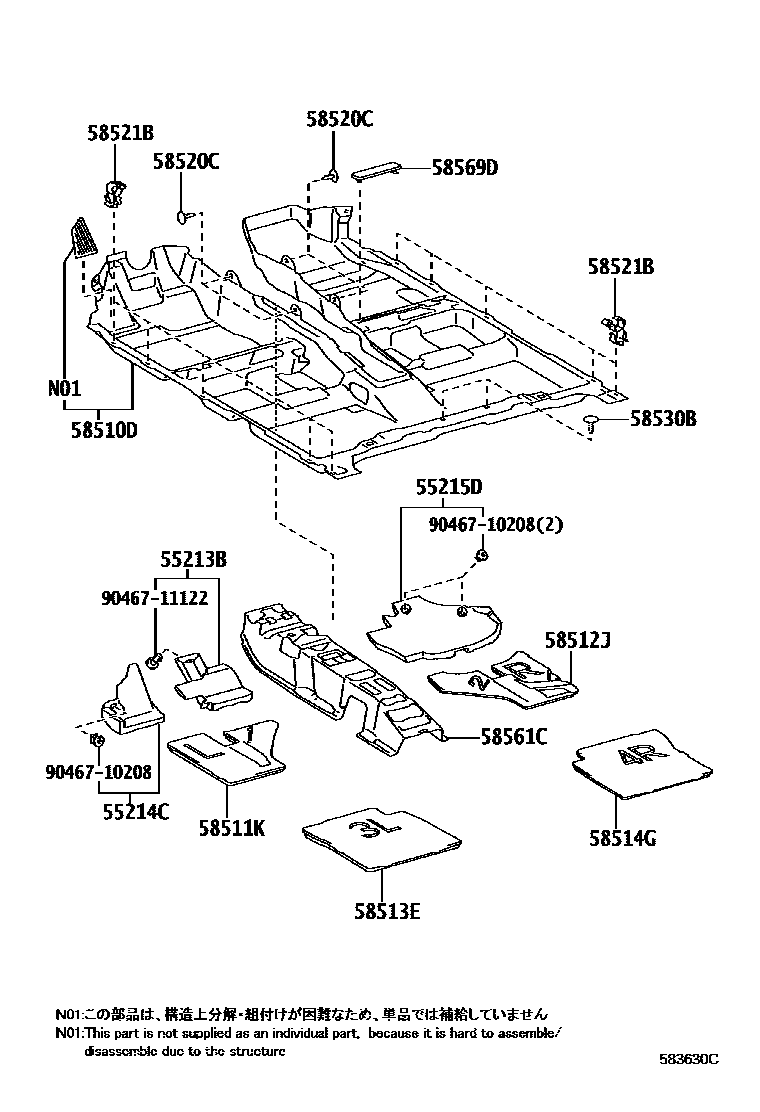

15 parts on this diagram · 2 diagrams in section
