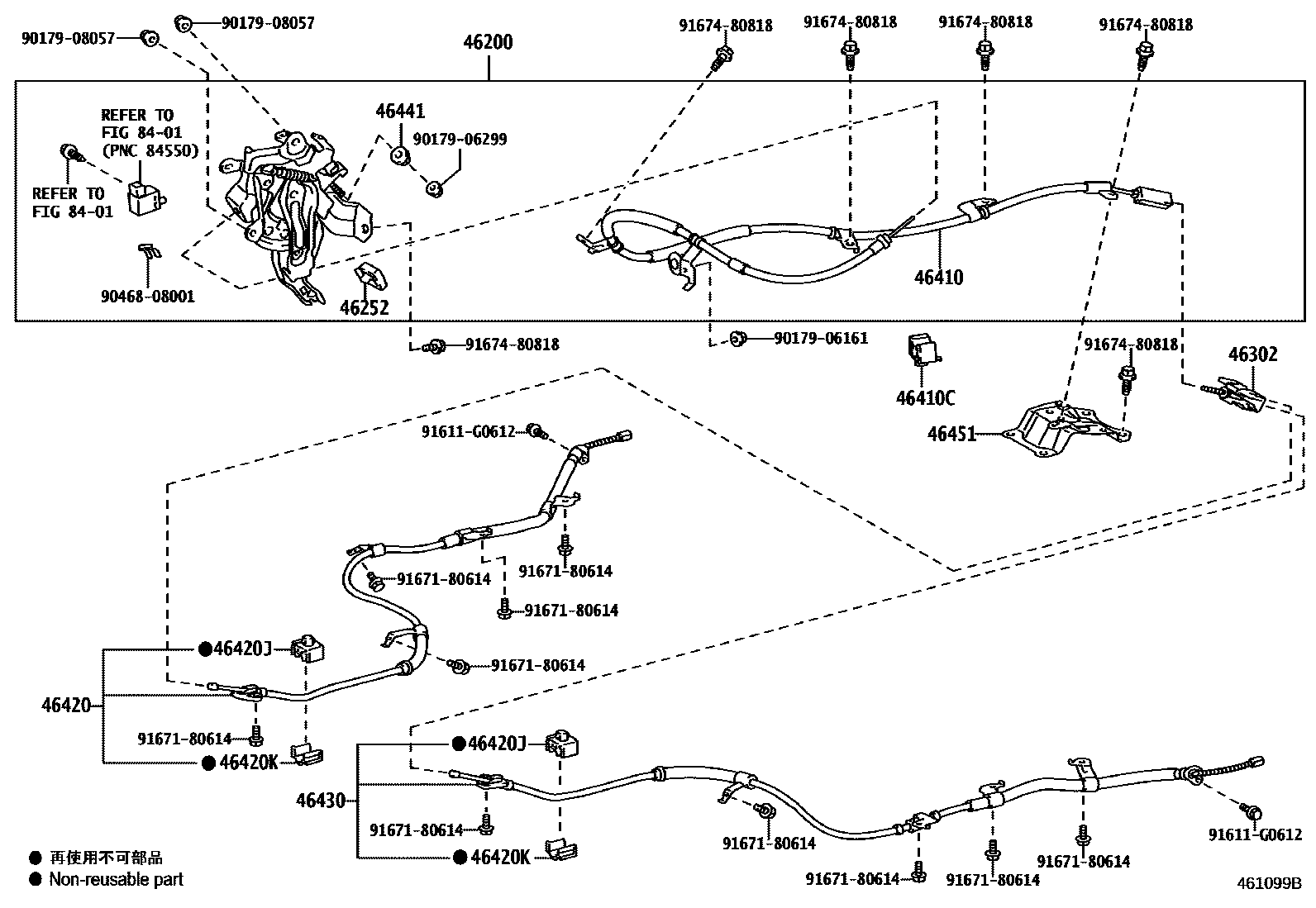

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-75010iANF10200907-201201

46252PAD, PARKING PEDAL

main46252-22010iANF10200907-200911

main46252-47010iANF10200912-201201

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-75010iANF10200907-201201

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-75010iANF10200907-201201

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-75010iANF10200907-201201

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-75010iANF10200907-201201

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-12030iANF10200907-201201

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46411-12040iANF10200907-201201

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-75010iANF10200907-201201

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANF10200907-201201

46451BRACKET, CABLE SUPPORT

main46451-75010iANF10200907-201201

8401

9017906161

main90179-06161

9017906299

main90179-06299

9017908057

main90179-08057

9046808001

main90468-08001

91611G0612

main91611-G0612

9167180614

main91671-80614

9167480818

main91674-80818

19 parts on this diagram · 2 diagrams in section
