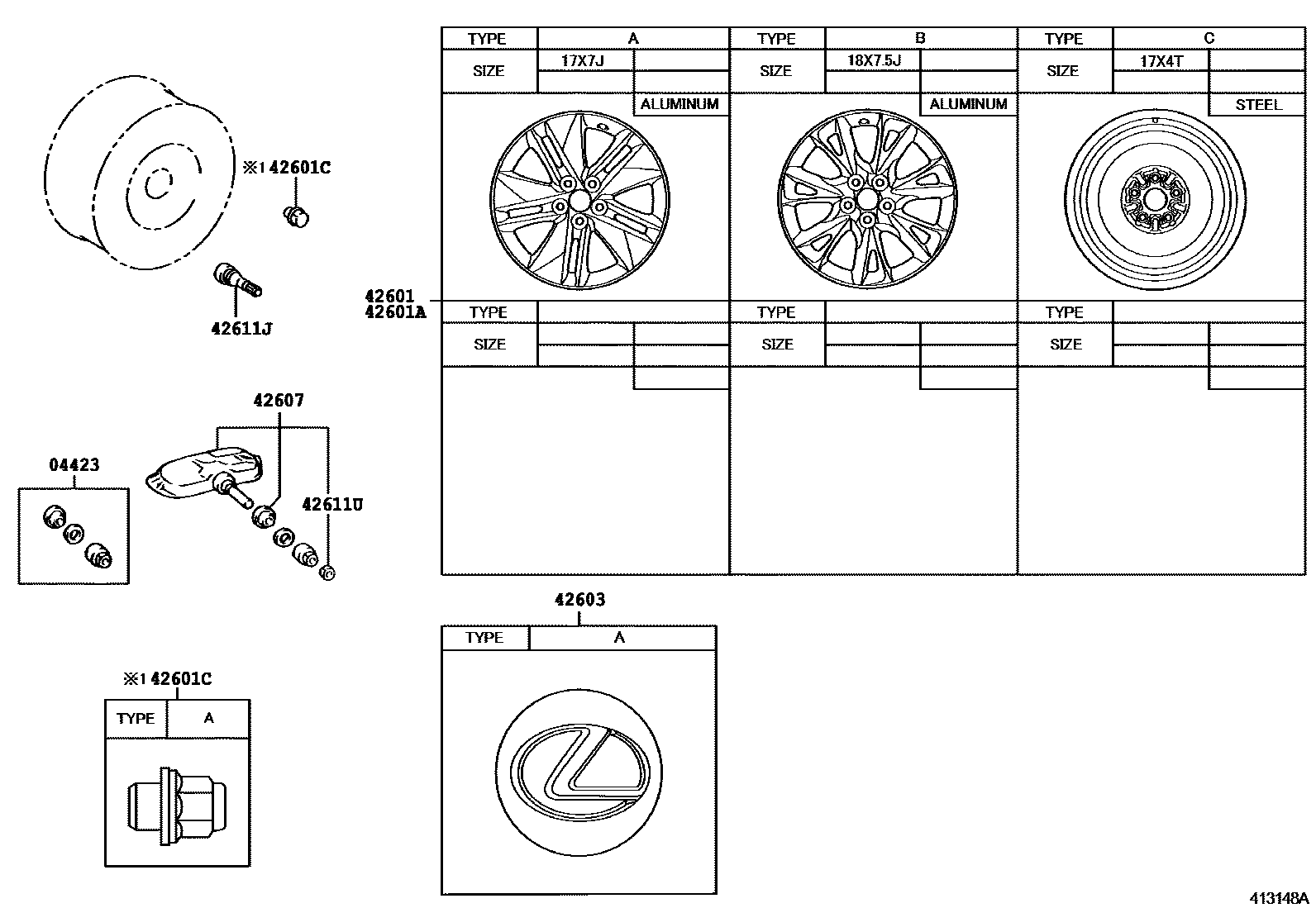

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030i200907-201201

sub04423-33060

42601WHEEL, DISC

main42611-75060i200907-201201

17X7J,#,TYPE A:REFER ILLUST.

sub42611-75070

main42611-75060i200907-201201

17X7J,#,TIRE & DISK WHEEL-215/55R17AS 7J AL LEXUS,TYPE A:REFER ILLUST.

sub42611-75070

main42611-75070i200907-201201

17X7J,CANADA SPEC,TYPE A:REFER ILLUST.

main42611-75070i200907-201201

17X7J,CANADA SPEC&TIRE & DISK WHEEL-215/55R17AS 7J AL LEXUS,TYPE A:REFER ILLUST.

main42611-75080i200907-201201

18X7.5J,#,TYPE B:REFER ILLUST.

sub42611-75090

main42611-75080i200907-201201

18X7.5J,#,TIRE & DISK WHEEL-225/45R18AS 7.5J AL LEXUS,TYPE B:REFER ILLUST.

sub42611-75090

main42611-75090i200907-201201

18X7.5J,CANADA SPEC,TYPE B:REFER ILLUST.

main42611-75090i200907-201201

18X7.5J,CANADA SPEC&TIRE & DISK WHEEL-225/45R18AS 7.5J AL LEXUS,TYPE B:REFER ILLUST.

main4261A-75010i200907-201201

18X7.5J,TIRE & DISK WHEEL-225/45R18 ALUMI(CHROME PAINTED),TYPE B:REFER ILLUST.

sub4261A-75020

main4261A-75020i200907-201201

18X7.5J,CANADA SPEC&TIRE & DISK WHEEL-225/45R18 ALUMI(CHROME PAINTED),TYPE B:REFERILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-75100i200907-201201

17X4T,TYPE C:REFER ILLUST.

sub42611-75101

42601CNUT, HUB (FOR AXLE)

main90942-01033i200907-201201

TYPE A:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30590i200907-201201

*CHR,TOURING PACKAGE,TYPE A:REFER ILLUST.

main42603-50300i200907-201201

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-75010i200907-201201

sub42607-75011

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200907-201201

42611UCAP, TIRE VALVE

main90942-05040i200907-201201

8 parts on this diagram · 1 diagram in section
