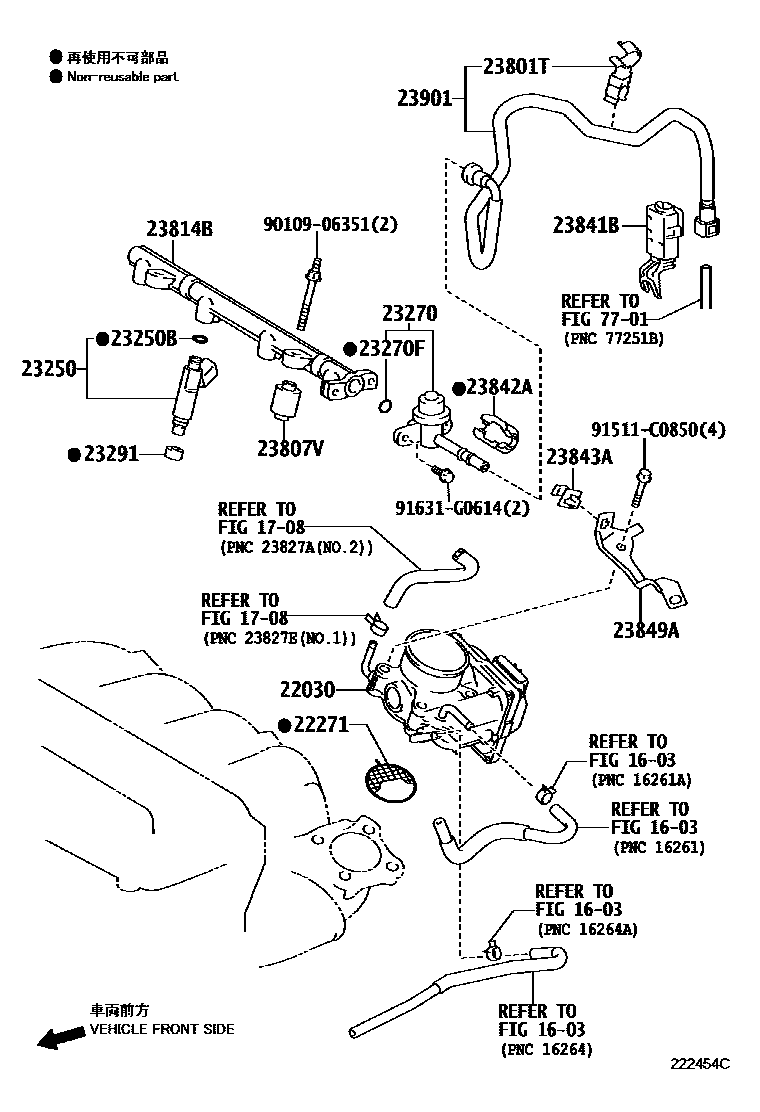

FUEL INJECTION SYSTEM

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28071i2AZFXE..ANF10200907-201201

22271GASKET, THROTTLE BODY

main22271-75031i2AZFXE..ANF10200907-201201

23250INJECTOR ASSY, FUEL

main23209-28060i2AZFXE..ANF10200907-201201

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2AZFXE..ANF10200907-201201

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28052i2AZFXE..ANF10200907-201201

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFXE..ANF10200907-201201

23291INSULATOR, INJECTOR VIBRATION

main23291-28020i2AZFXE..ANF10200907-201201

23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)

main23841-28060i2AZFXE..ANF10200907-201201

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053i2AZFXE..ANF10200907-201201

23814BPIPE, FUEL DELIVERY

main23814-28031i2AZFXE..ANF10200907-201201

sub23814-28060

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2AZFXE..ANF10200907-201201

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2AZFXE..ANF10200907-201201

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main90469-12012i2AZFXE..ANF10200907-201201

23849ASUPPORT, FUEL PIPE

main23849-28090i2AZFXE..ANF10200907-201201

23901TUBE SUB-ASSY, FUEL

main23901-28090i2AZFXE..ANF10200907-201201

7701

9010906351

main90109-06351

91511C0850

main91511-C0850

91631G0614

main91631-G0614

21 parts on this diagram · 1 diagram in section
