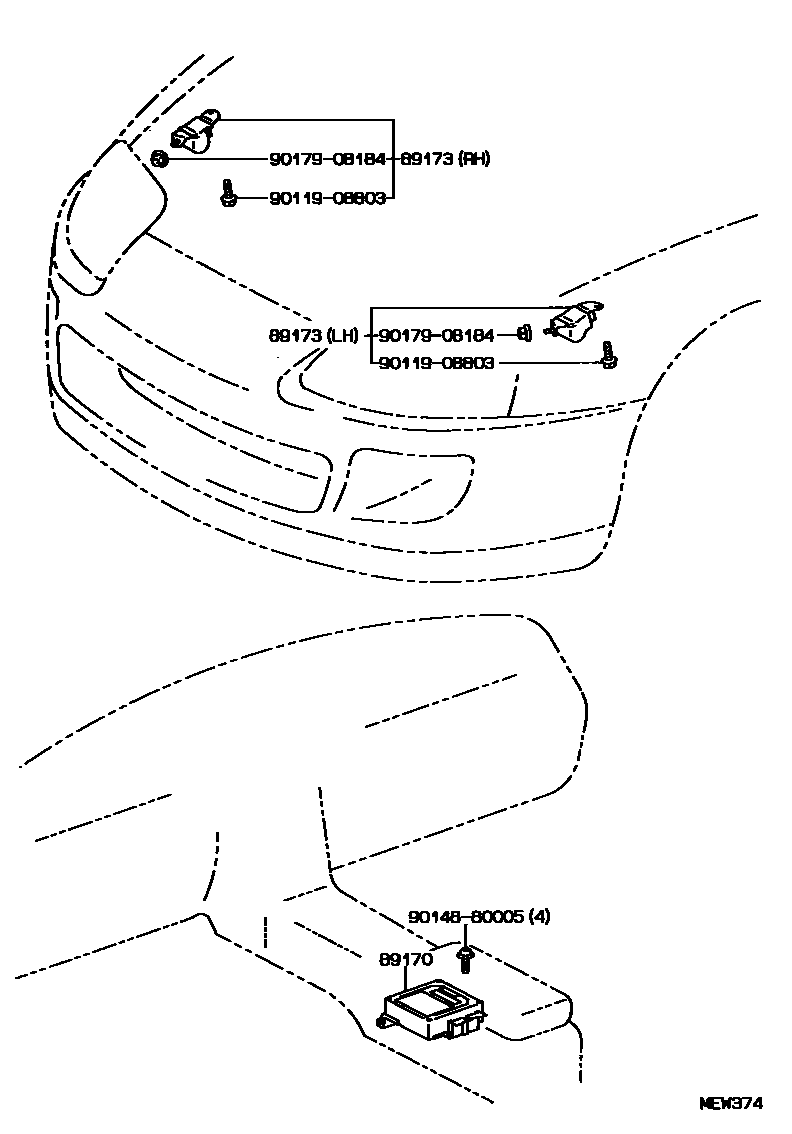

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-14020iJZA80199305-199607

main89170-14040iJZA80199607-199703

sub89170-14041

main89170-14041iJZA80199703-199808

89173SENSOR, AIRBAG, FRONT

main89173-19075iJZA80199305-199607

RH

main89173-19085iJZA80199305-199607

LH

9011908803

main90119-08803

9014880005

main90148-80005

9017908184

main90179-08184

5 parts on this diagram · 1 diagram in section
