SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1COWL & CONSOLE 0006 1INSTRUMENT PANEL & DOOR 0007 1COMBINATION SWITCH 0008 1SEAT 0009 1BODY

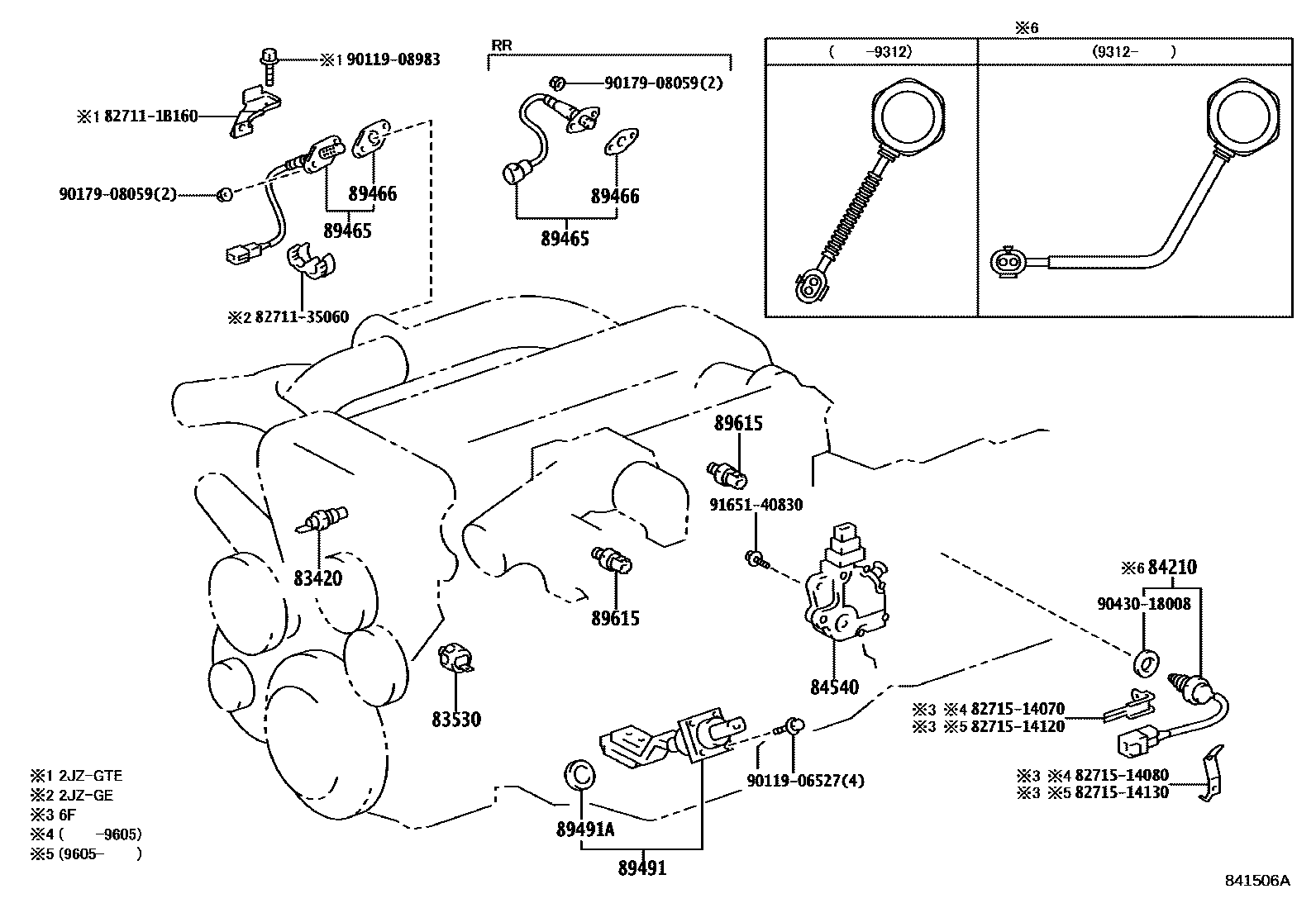

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iJZA80..TWC199305-199607

NIPPONDENSO

main83420-16040iJZA80..TWC199607-199808

main83420-16050iJZA80..TWT199305-199411

sub83420-20040

main83420-20030iJZA80..TWC199305-199506

YAZAKI

sub83420-16040

main83420-20040iJZA80..TWT199411-199808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iJZA80199305-199411

NIPPONDENSO

sub83530-30090

main83530-28020iJZA80199802-199808

DENSO

main83530-30090iJZA80199607-199712

sub83530-60020

main83530-30090iJZA80199305-199607

YAZAKI

sub83530-60020

main83530-60020iJZA80199802-199808

YAZAKI

main83530-60020iJZA80199712-199802

84210SWITCH ASSY, BACK-UP LAMP

main84210-14030iJZA80..6F199305-199312

sub84210-14040

main84210-14040iJZA80..6F199404-199808

main84210-30060iJZA80..5F199305-199709

main84210-60030iJZA80..6F199312-199404

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZA80..4FC199305-199808

89465SENSOR, OXYGEN

main89465-14120iJZA80..TWC199508-199709

FR

main89465-14140iJZA80..TWC199305-199508

CALIFORNIA SPEC,FR

main89465-14200iJZA80..TWC199709-199808

FRONT,FOR #1 #2 #3 CYLINDER

main89465-14220iJZA80..TWC199709-199808

REAR,FOR #1 #2 #3 CYLINDER

main89465-14230iJZA80..TWC199709-199808

REAR,FOR #4 #5 #6 CYLINDER

main89465-19595iJZA80..TWT199305-199808

RR

main89465-19595iJZA80..TWC199305-199508

CALIFORNIA SPEC,RR

main89465-19605iJZA80..TWT199305-199808

FR

main89465-19625iJZA80..TWC199305-199508

FR

main89465-19695iJZA80..TWC199508-199709

RR

main89465-30470iJZA80..TWC199709-199808

FRONT,FOR #4 #5 #6 CYLINDER

89466GASKET, OXYGEN SENSOR

main89466-20020iJZA80..TWC199508-199808

main89466-20020iJZA80199305-199508

CALIFORNIA SPEC

89491SENSOR, ENGINE OIL LEVEL

main89491-14070iJZA80199305-199808

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iJZA80199305-199808

89615SENSOR, KNOCK CONTROL

main89615-12040iJZA80..TWC199709-199808

MATSUSHITA

main89615-12050iJZA80..TWC199709-199808

DENSO

sub89615-12090

main89615-22030iJZA80..USA199305-199808

MATSUSHITA

main89615-22040iJZA80..USA199305-199808

DENSO

827111B160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1B160

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

8271514070BRACKET,WIRING HARNESS CLAMP

main82715-14070

8271514080BRACKET,WIRING HARNESS CLAMP

main82715-14080

8271514120BRACKET,WIRING HARNESS CLAMP

main82715-14120

8271514130BRACKET,WIRING HARNESS CLAMP

main82715-14130

9011906527

main90119-06527

9011908983

main90119-08983

9017908059

main90179-08059

9043018008

main90430-18008

9165140830

main91651-40830

20 parts on this diagram · 8 diagrams in section
